Cornelius ED 2 Series Installation Instructions

INSTALLATION INSTRUCTIONS

FOR USE WITH
!
WARNING:
Disconnect power to the unit before installing the adaptor following all lockout/tag out procedures established by the
user. Verify that all the power is off to the unit before performing any work.
Failure to comply could result in serious injury, death or damage to the equipment.
!
WARNING:
All ice baffle plates and bin stats, if included or recommended in this kit, must be installed as directed in this manual or
the equipment manufacturer's instructions.
Failure to comply could result in serious injury, death or damage to the equipment.
!
WARNING:
All of the attachment screws and plates must be installed as directed in this manual.
Failure to comply could result in serious injury, death or damage to the equipment.
1. Remove the plastic hopper lids from the top of the dispenser.
2. Install soft ice agitator kit (
NOTE: This soft ice agitator kit is required for proper dispenser operation using "compressed" or
"soft" ice types. Failure to install this kit may result in undesirable beverage quality.
3. Unpack the adapter kit.

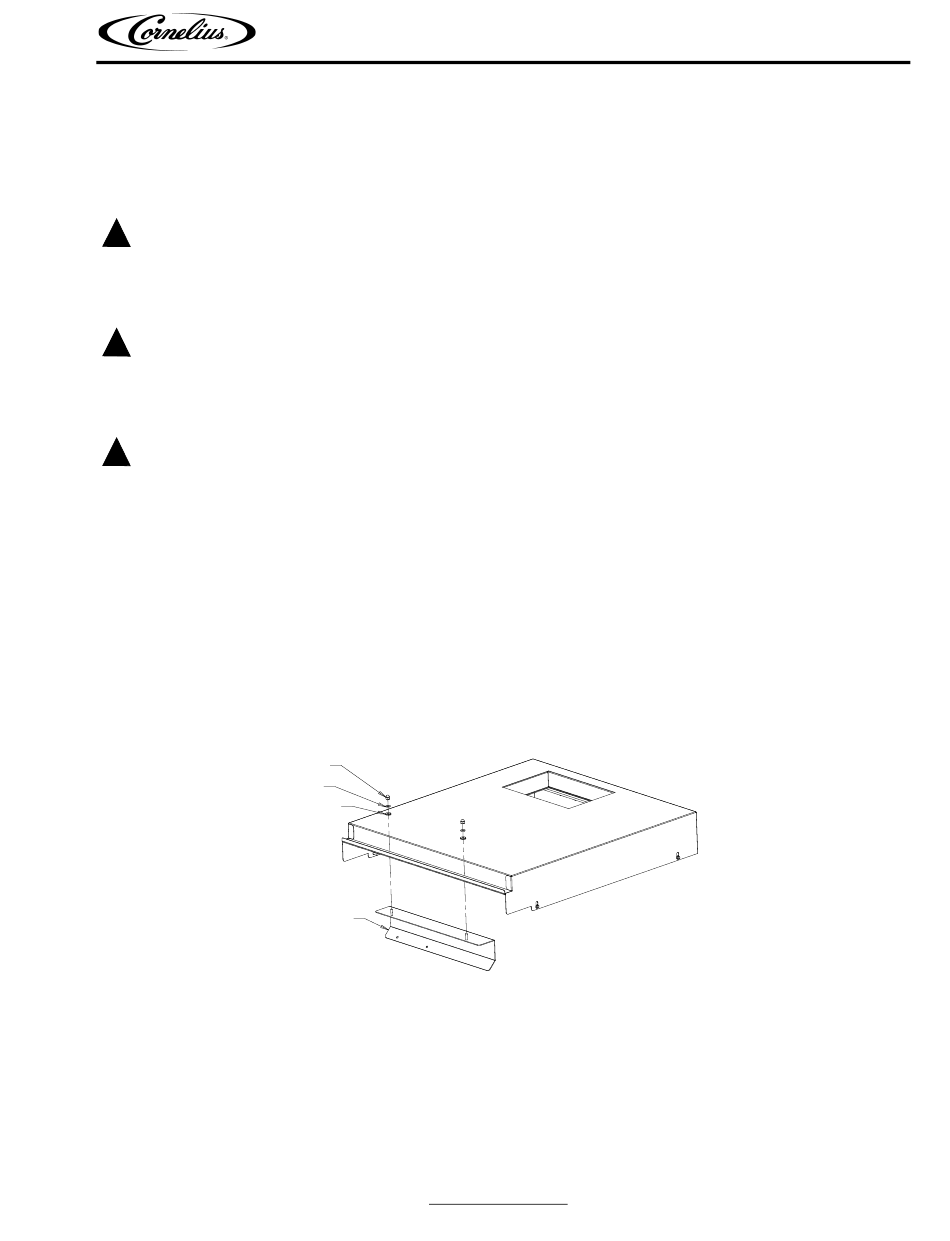

4. Assemble the baffle assembly onto the adapter lid as shown in Figure 1.
5. Set and secure adapter lid onto the dispenser as shown in Figure 2.
Release Date: November 10, 2010
© 2006-2010, IMI Cornelius Inc.
ED 2XX I
CE
2 C
ORNELIUS
sold separately
) into the dispenser.
ACORN NUT
WASHER
SEALING WASHER
BAFFLE
www.cornelius.com
ED 2XX Icemaker Adapter Kit Installation Instructions
M A
AKER DAPTER
WCC S
ERIES
Figure 1.
- 1 -
K
IT
I M
CE AKERS
Publication Number: 620920831INS
Revision: B
