Fujitsu ASYG09KXCA Service Manual

Fujitsu ASYG09KXCA Service Manual

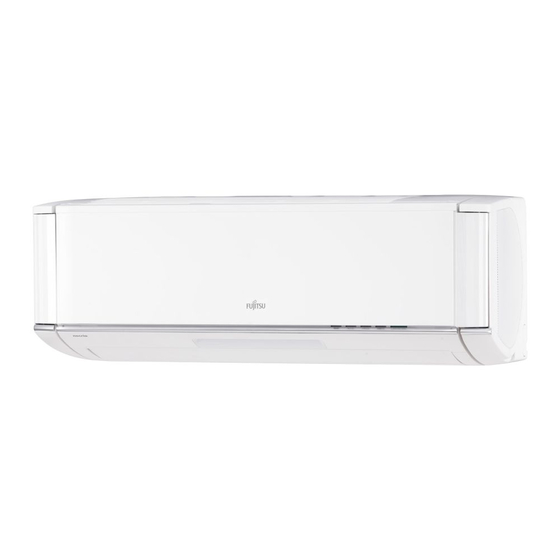

Split type room air conditioner wall mounted type
Hide thumbs Also See for ASYG09KXCA:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual , Installation Manual
SPLIT TYPE
ROOM AIR CONDITIONER
WALL MOUNTED TYPE
Indoor unit
Outdoor unit
ASYG09KXCA
AOYG09KXCA
ASYG12KXCA
AOYG12KXCA
CO NTE NT S
SPECIFICATIONS. . . . . . . . . . . . . . . . . . .
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . .
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . .
PCB CIRCUIT DIAGRAM . . . . . . . . . . . . .
ERROR DETECTION . . . . . . . . . . . . . . . .
PARTS (INDOOR UNIT) . . . . . . . . . . . . . .
PARTS (OUTDOOR UNIT) . . . . . . . . . . .
ACCESSORIES . . . . . . . . . . . . . . . . . . .
1
2
4
5
6
8
9
18
22

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu ASYG09KXCA

Summary of Contents for Fujitsu ASYG09KXCA

  • Page 1: Table Of Contents

    SPLIT TYPE ROOM AIR CONDITIONER WALL MOUNTED TYPE Indoor unit Outdoor unit ASYG09KXCA AOYG09KXCA ASYG12KXCA AOYG12KXCA CO NTE NT S SPECIFICATIONS....DIMENSIONS ..... .

  • Page 2: Specifications

    S P E C IF I C ATIO N S ELECTRICAL DATA FAN MOTOR AND REVOLUTION NOISE LEVEL High 46 dB INDOOR UNIT INDOOR UNIT Discrimination MFD-W65XA2F ASYG09KXCA ASYG12KXCA Medium 42 dB OUTDOOR UNIT High 1,310 rpm AOYG09KXCA AOYG12KXCA INDOOR UNIT...
  • Page 3 D IM EN SI ON S Drain hose length : 600 mm Drain hose diameter INDOOR UNIT Inside : 12 mm Outside : 16 mm 600 mm 378 mm 786 mm 2016.10.26...
  • Page 4 OUTDOOR UNIT 820 mm 315 mm 400 mm 650 mm 2016.09.16...

  • Page 5: Refrigerant System Diagram

    R E F R IG E R A N T SY S T E M D IA GR A M Heat exchanger (Indoor unit) 3-way valve Sensor Heat exchanger Muffler Distributor 2-way valve Muffler Compressor Strainer 4-way valve Expansion valve Heat exchanger Sub-accumulator Strainer...

  • Page 6: Circuit Diagram

    OUTDOOR UNIT Expansion valve coil Fan motor High pressure switch CI RCUI T DI AGRAM 1 2 3 4 5 6 7 1 2 3 4 5 6 7 W400 Compressor White W401 P650 Black W402 Gray or Blue 4-Way valve coil Main PCB Black W103...

  • Page 7: Pcb Circuit Diagram

    PCB C IR C U IT D IA GR A M CONTROL UNIT TERMINAL ASYG09KXCA : EZ-016KHSE ASYG12KXCA : EZ-016LHSE WHITE WHITE LOUVER ( UP / DOWN ) DC12V WHITE ( LEFT ) WHITE WHITE TERMAL FUSE BLACK OUTDOOR BLACK...
  • Page 8 INVERTER ASSEMBLY AOYG09KXCA : EZ-0169HUE AOYG12KXCA : EZ-016AHUE Compressor Winding Resistance EMI FILTER EMI FILTER EMI FILTER ( 20 TO INDOOR UNIT TERMINAL KRFC-13 TRCB-25-15-12 ZCAT3035-1330 1 TURN 3 TURNS 1 TURN UL3271 UL1015 AWG16 W400 AWG20 W103 UL3271 BLACK AWG16 W401 UL1015...

  • Page 9: Error Detection

    Indoor unit error Error display ● ● ◊ (15) OPERATION TIMER ECONOMY Error code Description Outdoor unit main PCB model lamp lamp lamp ● ● ◊ information error or (green) (orange) (green) communication error Serial communication error ● ● E RR O R D ETEC TION ◊...
  • Page 10 P ART S INDOOR UNIT ASYG09KXCA ASYG12KXCA Description Parts number Remote Control 9382372002 Remote Control Holder 9318912005 Wireless LAN Control 9382167011 Bracket Panel 9321411021 Intake Grille 9321363016 Screw Cap 9309002074 Under Cover 9321368004 Diffuser Assy 9321761003 Louver 9321370007 2016.09.12...
  • Page 11 INDOOR UNIT ASYG09KXCA ASYG12KXCA Description Parts number Wire Cover Assy 9321791024 Air Filter 9321412004 Dust Box Assy 9321778049 Air Filter Total Assy 9321777066 Air Filter (S) 9321427008 Dust Box Assy (S) 9321778056 Air Filter Total Assy (S) 9321777073 2016.11.10...
  • Page 12 INDOOR UNIT ASYG09KXCA ASYG12KXCA Description Parts number Air Cleaner Cartridge Assy 9321662010 Air Clean Power Supply Parts Assy 9321746017 Front Panel C Assy 9321758089 2016.11.10...
  • Page 13 Control cover A assy INDOOR UNIT ASYG09KXCA ASYG12KXCA Control box B Cover shield B Control box C Description Parts number Power Supply PCB 9710001024 Main PCB (09KXCA) 9710316180 Main PCB (12KXCA) 9710316197 Control cover C assy Filter PCB 9709996089 Terminal 9900638009 2016.09.12...
  • Page 14 Description Parts number INDOOR UNIT ASYG09KXCA Thermopile Case 9321939006 ASYG12KXCA Receiver PCB 9710010019 Display Case 9321340000 Indicator PCB 9710013010 Sensor Key Top 9321344008 Pyroelectric Sensor 9322184009 Button Cover 9321395000 Switch PCB 9708778020 Switch Case 9321661006 Micro Switch 9900840006 Speaker 9900877033...

  • Page 15: Parts (Indoor Unit)

    Description Parts number INDOOR UNIT ASYG09KXCA Front Panel L Assy 9321754005 ASYG12KXCA Side Fan L Assy 9321755002 Front Panel L 9321346002 Front Panel R Sub Assy 9321749001 Side Fan R Assy 9321750021 Front Panel R 9321345005 Cable Guide 9321367007 Main frame sub assy...
  • Page 16 INDOOR UNIT ASYG09KXCA ASYG12KXCA Main frame sub assy Description Parts number Top Rail 9321423017 Main Frame F 9321425028 Panel Case 9321343001 Rail Cover A 9321392009 Joint Gear A 9316680005 Rail Cover B 9321398001 Sensor Case 9321396007 Switch Assy 9321776007 Gear Assy C...
  • Page 17 INDOOR UNIT ASYG09KXCA ASYG12KXCA Description Parts number Evaporator Total Assy 9319254630 Pipe Thermistor 9900894030 Motor Cover 9316601000 Motor Cover 9316568006 Fan Motor 9603349011 Crossflow Fan Assy 9315024077 Bearing C Assy 9306628017 Casing Total Assy 9321730177 2016.09.16...
  • Page 18 INDOOR UNIT ASYG09KXCA ASYG12KXCA Casing sub assy Description Parts number Casing Assy 9321731099 Motor Case R Assy 9321733086 Motor Case L Assy 9321734052 2016.09.15...

  • Page 19: Parts (Outdoor Unit)

    P ART S Ref. Description Part number OUTDOOR UNIT AOYG09KXCA Protective Net 9382395001 AOYG12KXCA Thermistor Holder 9332505009 Top Panel Assy 9320774059 Front Panel Assy 9320773007 Emblem 9319151007 Cabinet Left Assy 9320770006 Cabinet Right Assy 9320771003 Switch Cover A Assy 9320772000 Switch Cover B 9320505011 Drain Assy...
  • Page 20 OUTDOOR UNIT Ref. Description Part number AOYG09KXCA AOYG12KXCA Propeller Fan 9320027001 Fan Motor 9603340001 Shield panel Terminal 6P 9900380007 Heatsink 9321801013 PCB Holder 9319547039 Main PCB (09KXCA) 9710408014 Main PCB (12KXCA) 9710408021 Outdoor Thermistor 9900565022 Thermistor Assy 9900727031 2016.09.16...
  • Page 21 OUTDOOR UNIT AOYG09KXCA AOYG12KXCA Ref. Description Part number Condenser Total Assy 9317089586 2016.09.16...
  • Page 22 OUTDOOR UNIT Ref. Description Part number AOYG09KXCA AOYG12KXCA Expansion Valve Coil 9970095092 Pulse Motor Valve Sub Assy 9320152048 2-way Valve Assy 9318252026 Compressor Assy 9321799020 Solenoid 9970195006 4-way Valve Assy 9382407001 3-way Valve Sub Assy 9320411008 2016.09.16...

  • Page 23: Accessories

    ACC E SS OR I ES INDOOR UNIT OUTDOOR UNIT Name and Shape Q’ty Name and Shape Q’ty Name and Shape Q’ty Remote control Tapping screws (Large) Drain assy Remote control Tapping screws (Small) holder Wall hook bracket Battery Cloth tape Wireless LAN adapter with cable (with attached wireless...
  • Page 24 1608G4544...
