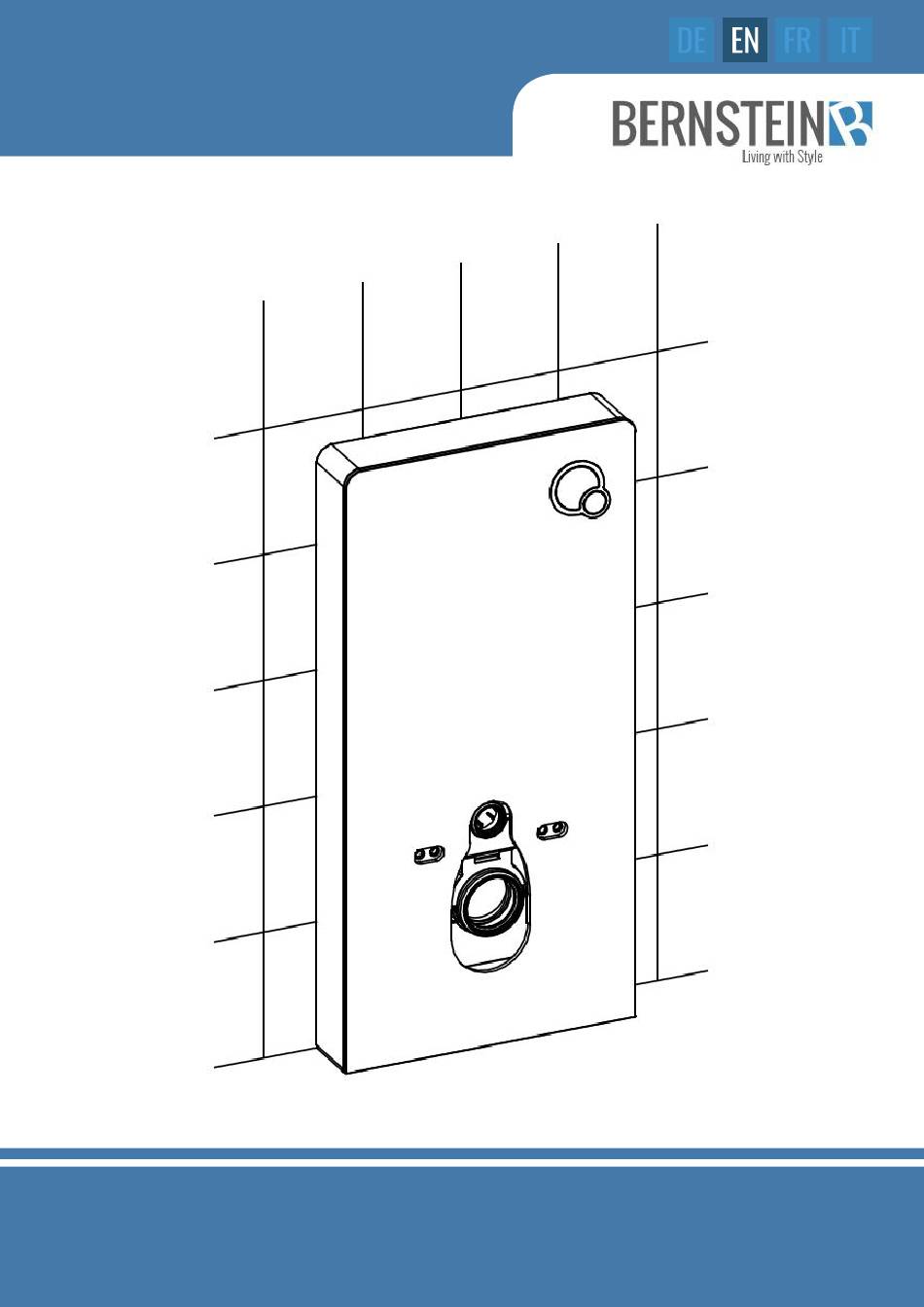

IN-WALL SYSTEM 805
for wall-wc with flushplate
ASSEMBLY INSTRUCTIONS - IV / 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 805 and is the answer not in the manual?

Questions and answers

Summary of Contents for BERNSTEIN 805

  • Page 1 IN-WALL SYSTEM 805 for wall-wc with flushplate ASSEMBLY INSTRUCTIONS - IV / 2018...
  • Page 2: Content Of Delivery

    In-wall system 805 CONTENT OF DELIVERY: Item Description Indication Quantity Item Description Indication Quantity Rubber seal Rawl plug SX10 Ø Ø Straight flush Screw ST6,8 x 67 pipe Waste seal Washer 22 x 2,0 Ø Eccentric M12 Bolt pipe Rubber seal...
  • Page 3: Items Included In Delivery

    ITEMS INCLUDED IN DELIVERY: Aluminium frame Glass panel Flush valve Inlet valve Lever Flush plate Screw set Water cistern Lower half frame Drainage pipe...
  • Page 4: Technical Specifications

    In-wall system 805 TECHNICAL SPECIFICATIONS: Product type: Wall-hung toilet installation system Model: 20981 (black) and 20982 (white) Required room temperature: 3 – 40° C Water supply pressure: 0,07 – 0,75 MPa Water temperature: 4 – 35° C Protection class: IPX4...
  • Page 5 INSTALLATION OF THE SANITARY MODULE: Insert the drainage pipe into the pre-drilled drainage hole Remove the upper cover (1) and the support and on the wall. the support tube (2). Bracket on the back wall Place the sanitary module on the wall and fasten the drainage pipe (1) with the clamp (2).
  • Page 6 In-wall system 805 Using the given openings - four on the wall, two on the floor - mark the drill holes with a pin (3). Open the clamp and remove the sanitary module from the wall (4).
  • Page 7 Drill the holes using the markers. The depth of the drill holes must be greater than the length of the dowels (see the diameter in the drawing (5)). Insert the rawl plugs into the corresponding holes (6). Return the sanitary module to the correct wall position (7).
  • Page 8 In-wall system 805 Now fix the unit to the wall tightening the screws in the corresponding rawl plugs (8) and use the bolts to secure the feet on the floor. Connect the tube with the support (1) and the corresponding valve on the...
  • Page 9 Open the shut-off valve on the inlet water pipe (4) to check the function.
  • Page 10 In-wall system 805 Bracket glass panel (4 pieces) Attach the glass panel to the aluminum frame of the sanitary module (1). Push it down (2) so the glass panel mounts snap into the frame mounts.
  • Page 11 Holding frame of the pusher plate Mount the retaining frame (1) from the inside and the pusher plate (2) from the front into the glass panel. Pusher plate Now push the locks into the holding frame (3) to fix the pusher plate.
  • Page 12 In-wall system 805 blue air hose transparent air hose half flush mark full flush mark Fix the air hoses as indicated in the above drawing. Frontal upper cover Reference line The upper cover is positioned between the wall and the frontal cover, please note that this cover should be perfectly aligned –...
  • Page 13 Please follow the following steps (16-18) after installing your wall-hung toilet Draw a mark on the straight flush pipe and on the waste pipe (1). Cut the flush pipe and the waste pipe (2). File the edge of the pipes 3). Add silicon oil (4).
  • Page 14 In-wall system 805 Fix the bolts on the unit (1) and the absorbing panel (2). Fix the waste pipe to the unit (3). Fix the flush pipe to the wall-hung toilet (4). Install the toilet to the sanitary module (5).
  • Page 15 Cut off the protruding surfaces (6) of the absorber plate. Test the half and full flush functions (7).
  • Page 16: Maintenance

    In-wall system 805 MAINTENANCE: 1.1 How to remove the inlet valve Lift the upper cover (1). Turn off the stop valve (2) on the flexible hose. Disconnect the hose and the valve (3). Remove the inlet valve pulling it upwards (4).
  • Page 17 1.2 Adjustment and cleaning of the inlet valve Lift the float (1) upwards to increase the waterflow or downwards to reduce it. Remove the stop valve (2+3) and clean it et nettoyez-la (4).
  • Page 18 In-wall system 805 1.3 Installing the inlet valve Follow the 1-3 steps on the drawings.
  • Page 19 2.1 Removing the flush valve blue air hose transparent air hose Disconnect the air hoses (1). Remove the lever (2).
  • Page 20 In-wall system 805 Clamps of the suspension device. After having opened the hanger locks (3), lift the flush valve upwards (4).
  • Page 21 2.2 Setting and cleaning the flush valve Toilet float Pull the float (1) upwards to decrease the water flow or push it downwards to increase it. Cover Rubber seal Washer Cover Turn the cover 90 ° counterclockwise (2). Then remove cover, washer and rubber seal (3). Clean the washer (4).
  • Page 22 In-wall system 805 2.3 Installing the purge valve Socket of the purge valve Mount the flushing valve from top to bottom in the sanitary module (1). Attention: The bottom of the purge valve must be fitted in its base (2).
  • Page 23: Wartung

    WARTUNG: 1. Nutzen Sie ausschließlich weiche Tücher und klares Wasser, um das Profile und die Glasfront des Sanitärmoduls zu reinigen. 2. Bitte nutzen Sie keine ätzenden Chemikalien oder Mittel, zur Reinigung. 3. Vermeiden Sie die Reinigung mit scharbenden Gegenständen. Hartnäckige Flecken können Sie mit niedrigkonzentriertem Essig reinigen, spülen Sie im Anschluss mit viel Wasser nach.
  • Page 24 In-wall system 805 ERKLÄRUNG Die Bedienungsanleitung dient nur als Referenz. Diese Anleitung kann abweichende Angaben enthalten. Die beschriebenen Produkte können jederzeit aktualisiert werden. Die Zeichnungen in dieser Anleitung dienen nur zur Darstellung und haben keinen Anspruch auf Aktualität. STATEMENT This instructions should only be considered as a standard manual. Modifications applied to updated version of the product might not be mentioned inside this document.
