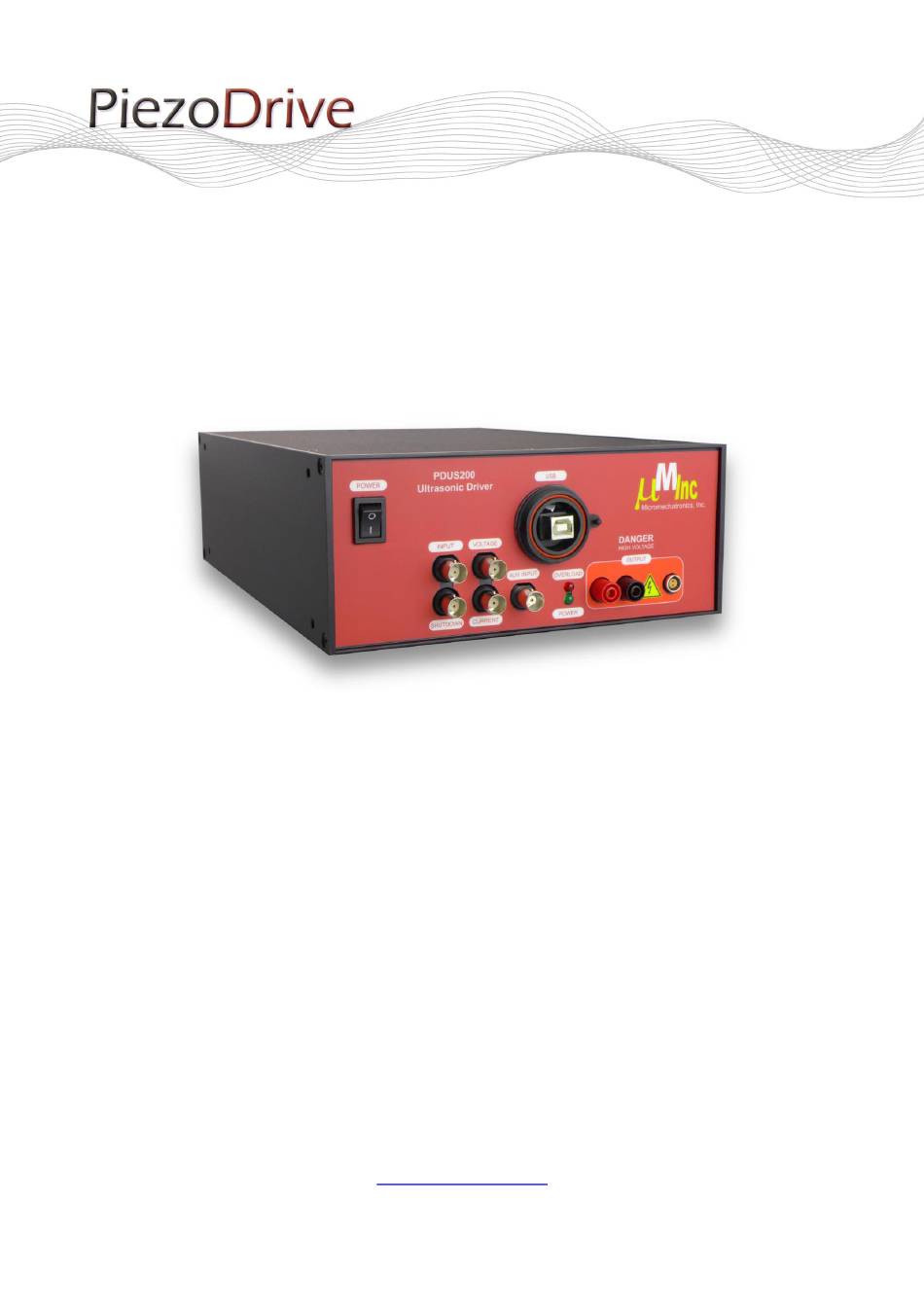

- Page 1 PDUS200-PWR 200W Ultrasonic Driver Manual and Specifications PiezoDrive Pty. Ltd. www.piezodrive.com...
-
Page 2: Table Of Contents
Contents Warnings / Notes ............................3 Specifications ............................. 4 Software Manual ............................5 Main Window ............................5 3.1.1 Overview ............................5 3.1.2 Status ............................6 Plot Windows ............................6 3.2.1 Graph Scale ..........................6 3.2.2 Legend Position ..........................7 3.2.3 Exporting Graph Data........................ -
Page 3: Warnings / Notes
1 Warnings / Notes 1) This device produces hazardous potentials and should only be used by suitably qualified personnel under the supervision of an observer with appropriate first-aid training. Do not operate the device when there are exposed conductors. -
Page 4: Specifications
2 Specifications Electrical Frequency 1 to 50 kHz (Pure Sine-wave) Output Voltage ±100 V Output Current ±4 A Transducer Power 200 W Signal Bandwidth 100 kHz Slew Rate 35 V/us Gain 15 V/V Thermal and over current Overload protection Analog Outputs Voltage and current monitors Signal input (±7.5 V) Analog Inputs... -
Page 5: Software Manual
3 Software Manual 3.1 Main Window Signals Settings Phase and Status Frequency Figure 1. Main software window The main window is comprised of four sections, the Settings control panel, Amplifier status panel, Signal waveforms graph, and Phase and frequency graph. 3.1.1 Overview The amplifier is controlled by the settings control panel, which is comprised of the mode selection boxes, the numeric parameters, and the Start/Stop button. -
Page 6: Status
3.1.2 Status The Status section of the Main Window reports the power being dissipated by the actuator and the amplifier, and the amplifier shutdown indicator. Actuator Power The Actuator Power is calculated by �� ∑ ( �� ) × (�� ��... -
Page 7: Legend Position
Figure 2. An example where the scale and offset of the phase and frequency plot is manually controlled 3.2.2 Legend Position To adjust the legend position, right-click the legend and select a new position. 3.2.3 Exporting Graph Data To export a graph, right-click the graph area select either ‘Save as PDF’ or ‘Save as CSV’, then select the file location. -
Page 8: Resonance Tracking Mode (Phase Tracking)
Minimum Frequency can be set to an integer value between 1 kHz and the Maximum Frequency. If this value is adjusted above the Current Frequency, the Current Frequency is adjusted to comply with the Minimum Frequency. Power. If the power dissipated in the actuator is greater than this value, the actuator power reading in the status panel changes to bold red text to alert the user. -
Page 9: Resonance Tracking Mode With Power Control
Target Phase of the current relative to the drive voltage. This is equivalent to the phase of the admittance, which is the inverse of impedance. Negative values indicate a current lag (inductive), and positive values indicate a current lead (capacitive) ... -
Page 10: Frequency Sweep Mode
Figure 5. Resonance control with power tracking 3.6 Frequency Sweep Mode In the frequency sweep mode, the impedance of the transducer is measured from the set Minimum to Maximum frequency. Since many ultrasonic actuators exhibit a non-linear resonance at high-power, the frequency is swept in both directions. -
Page 11: Dynamic Range
In the Frequency Sweep mode, the available controls are: Driving Amplitude Peak to Peak Maximum Frequency Minimum Frequency Start/Stop button. In addition to the impedance measurement, the transfer function between the voltage and an auxiliary signal can also be measured simultaneously by applying an auxiliary signal to the front panel. Typical signals include the acceleration, velocity, or displacement. -
Page 12: Hardware Manual
The actuator can be connected to the amplifier by either two 4mm banana plugs or a 2-way LEMO 0B socket (LEMO EGG.0B.302.CLL). Preassembled LEMO cable assemblies are available from www.PiezoDrive.com The mating plug is a LEMO 0B 2-Way Straight Cable Plug. Ordering details and specifications are listed below. -
Page 13: Lemo Plug Cable Preparation
4.1.1 LEMO Plug Cable Preparation (Taken from LEMO 0B Series Cable Assembly Instructions) 4.1.2 LEMO Plug Assembly (Taken from LEMO B Series Cable Assembly Instructions) 1. Strip the cable as above 2. If the cable is shielded, fold the shield back over the cable 3. -
Page 14: Overload Protection
Overload Protection 4.2.1 Shutdown Indicator The Shutdown indicator will illuminate during a shutdown caused by a current overload or if the amplifier overheats as a result of excessive ambient temperature, poor air-flow, or fan failure. During shutdown, the amplifier output current is limited to a few mA and may float to the high or low voltage rail if the load impedance is high. -
Page 15: Installation
The documentation and program files for the API can be obtained by contacting info@piezodrive.com The desktop software for the PDUS200 uses the API so the source code is a useful programming example. This is included in the API package.
