Summary of Contents for PiezoDrive PD200

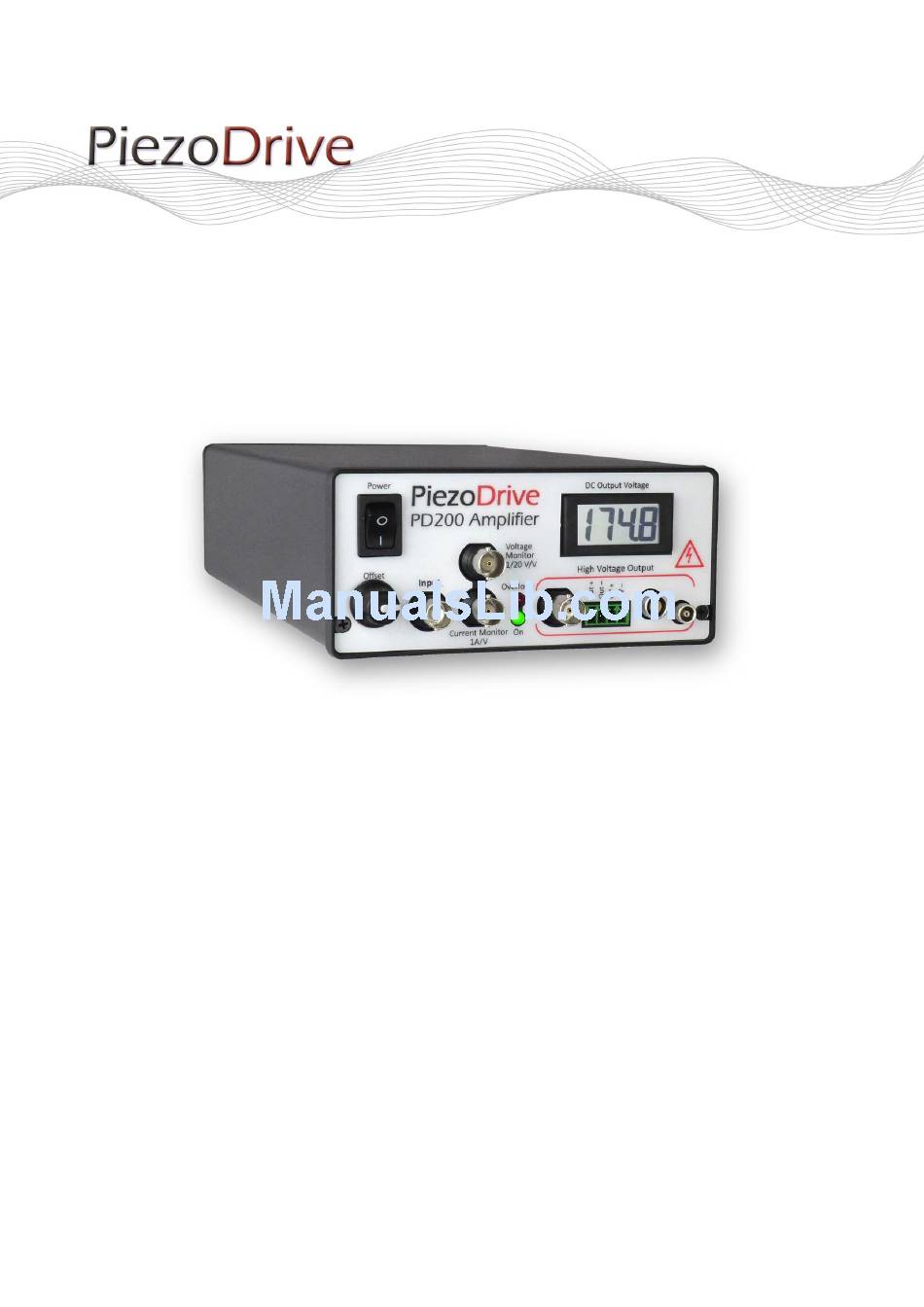

- Page 1 PD200 – Power Amplifier Version 6 Manual and Specifications PD200 V6 Manual Rev 1.2, Released, 05-02-2018...
-
Page 2: Table Of Contents
15 Overload and Shutdown .......................... 15 16 Output Connections ..........................15 16.1 HV Output Screw Terminals ......................15 16.2 LEMO OB Cable Assembly ......................16 17 Enclosure ..............................17 18 Warranty ..............................17 PD200 V6 Manual Rev 1.2, Released, 05-02-2018... -
Page 3: Introduction
1 Introduction The PD200 is a high bandwidth, low noise linear amplifier for driving piezoelectric actuators. The output voltage range can be unipolar, bipolar, or asymmetric from 50V to 200V. Up to +/-200V can be achieved in the bridged configuration. The PD200 can drive any load impedance including unlimited capacitive loads such as stack actuators;... -
Page 4: Specifications
Power Supply 90 Vac to 250 Vac Mechanical Specifications Environment 0-40 C (32-104 F) Non-condensing humidity Dimensions 275 x 141 x 64 mm (10.8 x 5.5 x 2.5 in) Weight 1 kg (2.2 lb) PD200 V6 Manual Rev 1.2, Released, 05-02-2018... -
Page 5: Output Voltage Range
Table 1. Voltage range configurations 5 Output Current The PD200 has a peak and average current limit as described in Table 1. The RMS current limit defines the maximum frequency that is achievable with a capacitive load. This topic is discussed in “Power Bandwidth”. -
Page 6: Pulse Current Option
For applications that require a high peak current, the peak current limit can be increased to 10 Amps by appending the order code with “-PULSE”, e.g. “PD200-V0,200-PULSE”. In this configuration, the average current limit remains the same; however, the peak current limit is increased to 8 Amps and the maximum pulse duration is reduced to the time listed in Table 2. -
Page 7: Power Bandwidth
The slew-rate is approximately 150 V/uS which implies a maximum frequency of 150 × 10 ������ �� ���� �� �� In the following figures, the maximum peak-to-peak voltage is plotted against frequency and capacitance. PD200 V6 Manual Rev 1.2, Released, 05-02-2018... - Page 8 PD200 V6 Manual Rev 1.2, Released, 05-02-2018...
-
Page 9: Small Signal Bandwidth
300 nF 172 kHz 1 uF 60 kHz 3 uF 21 kHz 10 uF 6.4 kHz 30 uF 2.4 kHz 110 uF 940 Hz Table 4. Small signal bandwidth versus load capacitance (-3dB) PD200 V6 Manual Rev 1.2, Released, 05-02-2018... -
Page 10: Noise
714 uV 10 uF 6.4 kHz 280 uV 708 uV 30 uF 2.4 kHz 264 uV 702 uV 110 uF 940 Hz Table 5. RMS noise versus load capacitance (0.03 Hz to 1 MHz) PD200 V6 Manual Rev 1.2, Released, 05-02-2018... -
Page 11: Front Panel
LEMO 00 FFA.00.250 LEMO EPL.00.250 LEMO 0B FGG.0B.302 LEMO EPG.0B.302 The LEMO 0B connector is recommended for applications requiring more than 1 Amp RMS output current. Preassembled LEMO cable assemblies are available from www.PiezoDrive.com PD200 V6 Manual Rev 1.2, Released, 05-02-2018... -
Page 12: Rear Panel
Input A voltage from +3V to +24V disables the amplifier The rear panel connector and recommended mating plug is listed below. Connector Mating Connector Manufacturer PCB Component 4-Way Screw Terminal TJ0631530000G Amphenol OQ0432510000G PD200 V6 Manual Rev 1.2, Released, 05-02-2018... -
Page 13: Amplifier Configuration
PCB mounted trim-pot. Offset Configuration Order Code Notes 0V to +200V Offset Range (default) +/-200V Offset Range -OR2 Front panel source (default) PCB trim-pot source -OS2 Disables front panel adjustment Table 7. Offset configuration PD200 V6 Manual Rev 1.2, Released, 05-02-2018... -
Page 14: Bridged Mode
Inverting ±100V Figure 5. Bridge mode configuration for obtaining ±200V Load Voltage RMS Current Positive Amp Negative Amp +/-200V 0.57 A PD200-V100,100 PD200-V100,100-INV +/-100V 1.20 A PD200-V50,50 PD200-V50,50-INV Table 8. Common bridge-mode configurations PD200 V6 Manual Rev 1.2, Released, 05-02-2018... -
Page 15: Overload And Shutdown
The screw terminal output has contacts for the output voltage, output return, and the internal HV supply rails. The Output- signal is connected to ground through a 0.1 Ohm resistor. Output- Output+ Stack actuators are connected as shown below. PD200 V6 Manual Rev 1.2, Released, 05-02-2018... -
Page 16: Lemo Ob Cable Assembly
2. If the cable is shielded, fold the shield back over the cable 3. Slide the strain relief, collet nut (1) and collet (3) onto the cable. 4. Solder or crimp the conductors onto the contacts. 5. Assemble the plug, as shown below. PD200 V6 Manual Rev 1.2, Released, 05-02-2018... -
Page 17: Enclosure
“Overload and Shutdown”. The PD200 can be rack-mounted in a three channel arrangement as shown below. The order code is PD200-Rack-X, where X is the number or populated channels (from 1 to 3).
