ADDENDUM – 24V DC V
1. DC
INPUT CONNECTOR

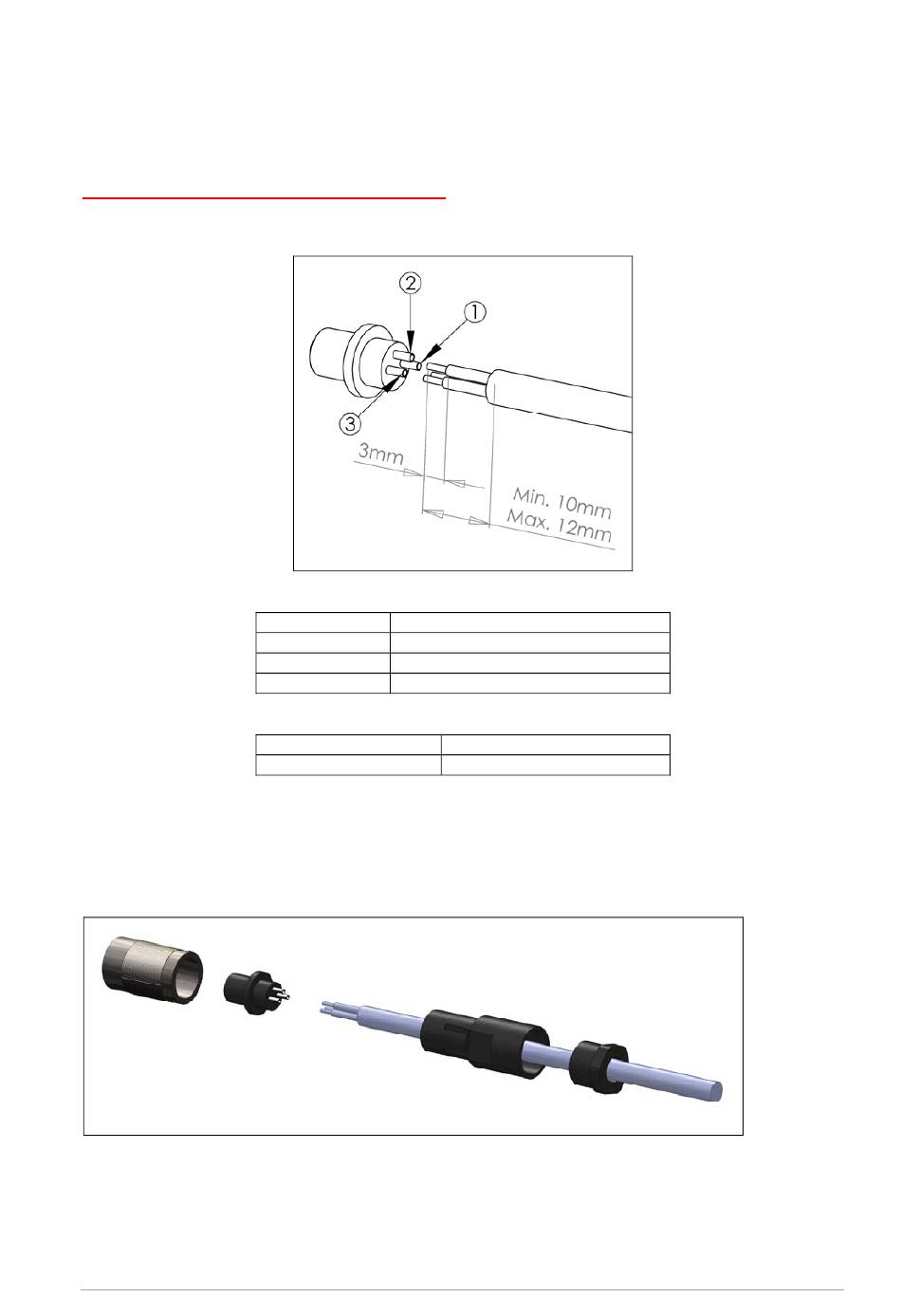

1.1. DC plug pinout and wire preparation
1.2 DC plug to wire connection
The following picture shows how to assemble the connector on the 3 wire cable.
The 3 wire terminals must be soldered on the connector terminals as described in chapter 1.1.
R-IN1300 MID – UM001061 – v.3.0– January 2019
ERSION OF
Pin number Description
1 DC Positive terminal
2 Earth (must be connected)
3 DC Negative terminal (GND)
Wire section
0.25-0.34 mm2
MID-R
ANGE
Cable Outer diameter
3.5-5 mm
R
EADER
4 (5)
