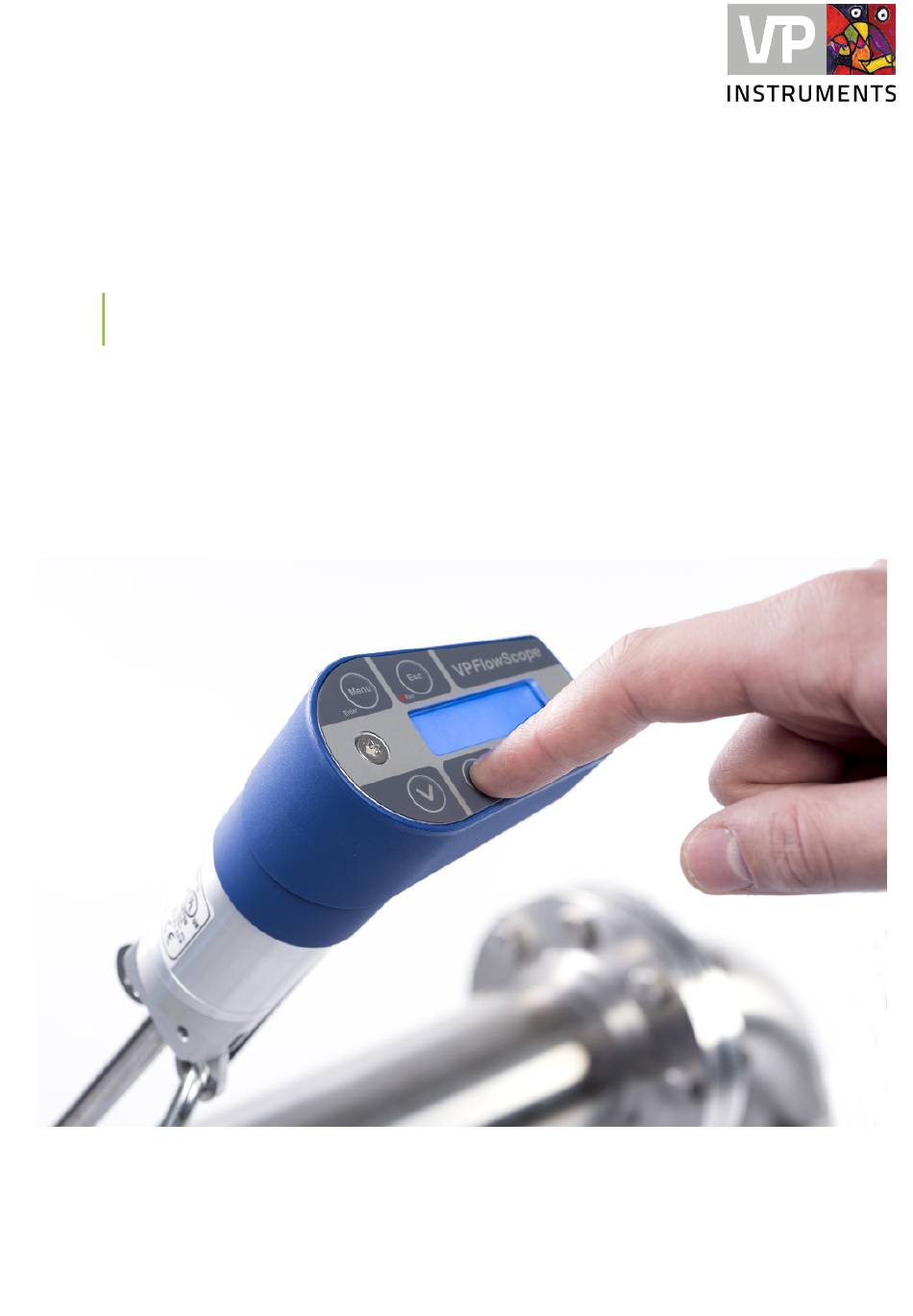

- Page 1 VPINSTRUMENTS.COM VPFlowScope 35 bar User manual © 2018 Van Putten Instruments BV AN-VP-SP35-UK-1800 Date:23-02-2018...
- Page 2 VPFlowScope 35 bar © 2018 Van Putten Instruments BV All rights reserved. No parts of this document may be reproduced in any form or by any means - graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems - without the written permission of the publisher.
- Page 3 Contents Table of Contents 1 Warning - Read this first 2 Installation step by step 3 Specifications...
- Page 4 INSPECT the system after 30 minutes to see if the probe is still at the same height. Systems with VIBRATIONS may be causing shifting of the probe. Order numbers: High pressure option for VPFlowScope probe VPA.0001.092 Compression fitting with stainless steel ferrule VPA.0001.003...
- Page 5 Installation step by step The following cartoons show how to install the probe in a 35 bar system. in addition to the compression fitting with stainless steel ferrules (rated well over 35 bar) we recommend to use two safety chains, for redundancy. ©...
- Page 6 VPFlowScope 35 bar Compression fitting instructions NOTE: the following instructions apply to stainless steel ferrules only. For use with teflon ferrules, there are no specific guidelines. This is why we do NOT recommend to use teflon ferrules in high pressure systems.
-
Page 7: Specifications
Specifications Please always check the label of your product for the specifications. Specifications are subject to change as we are continuously improving our products. Please contact us to obtain the latest specification sheet. Flow sensor (minimum detection level and max flow rate shown) Flow range 0.5...150 m /sec... - Page 8 EASY INSIGHT INTO ENERGY FLOWS VPInstruments Buitenwatersloot 335 2614 GS Delft The Netherlands info@vpinstruments.com www.vpinstruments.com AN-VP-SP35-UK-1800 Date: 23-02-2018...
