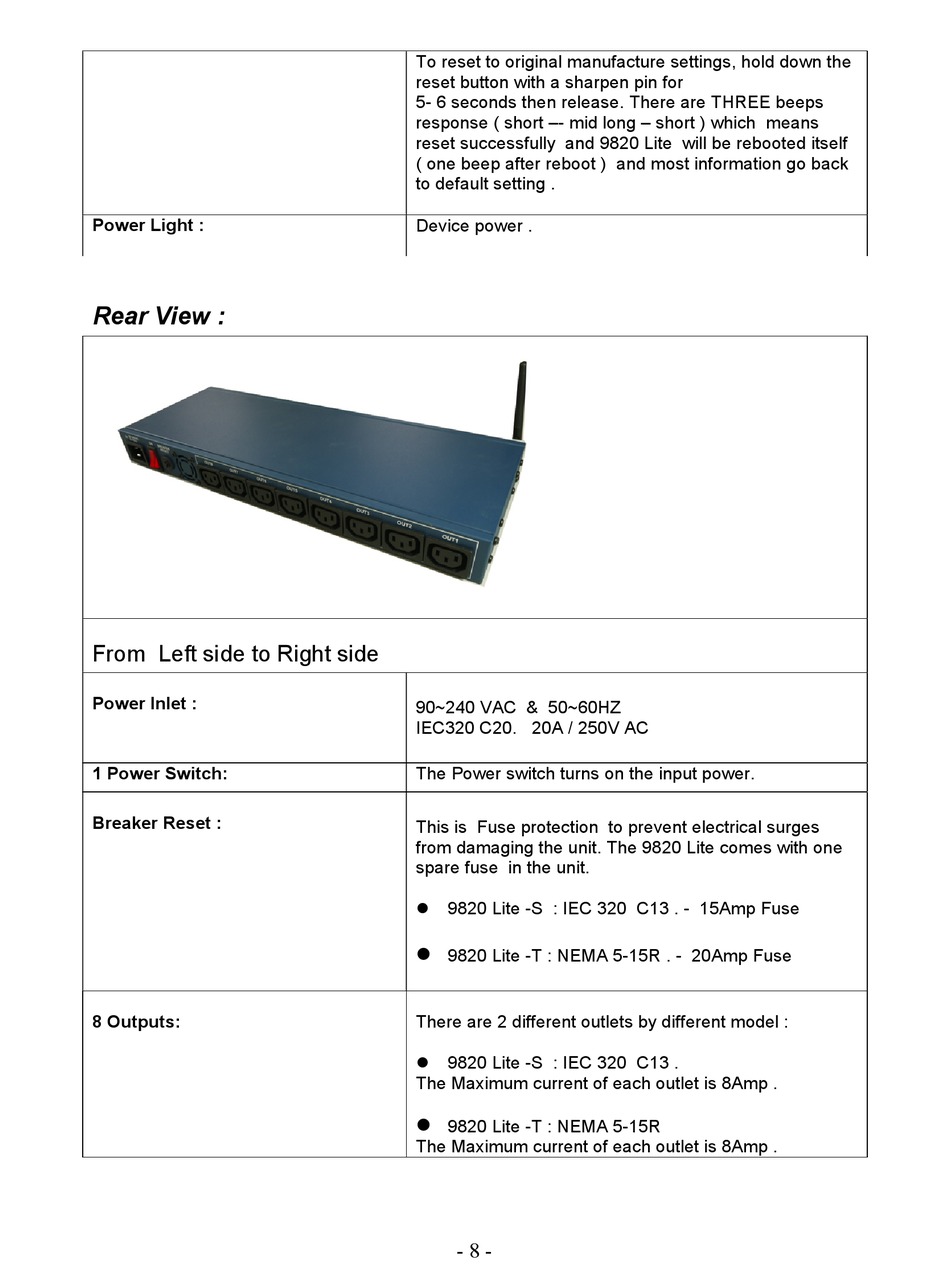

Power Light :

Rear View :

From Left side to Right side

Power Inlet :
1 Power Switch:
Breaker Reset :
8 Outputs:
To reset to original manufacture settings, hold down the
reset button with a sharpen pin for
5- 6 seconds then release. There are THREE beeps
response ( short –- mid long – short ) which means
reset successfully and 9820 Lite will be rebooted itself
( one beep after reboot ) and most information go back
to default setting .
Device power .
90~240 VAC & 50~60HZ
IEC320 C20. 20A / 250V AC
The Power switch turns on the input power.
This is Fuse protection to prevent electrical surges
from damaging the unit. The 9820 Lite comes with one
spare fuse in the unit.
9820 Lite -S : IEC 320 C13 . - 15Amp Fuse


9820 Lite -T : NEMA 5-15R . - 20Amp Fuse
There are 2 different outlets by different model :
 9820 Lite -S : IEC 320 C13 .
The Maximum current of each outlet is 8Amp .

9820 Lite -T : NEMA 5-15R
The Maximum current of each outlet is 8Amp .
