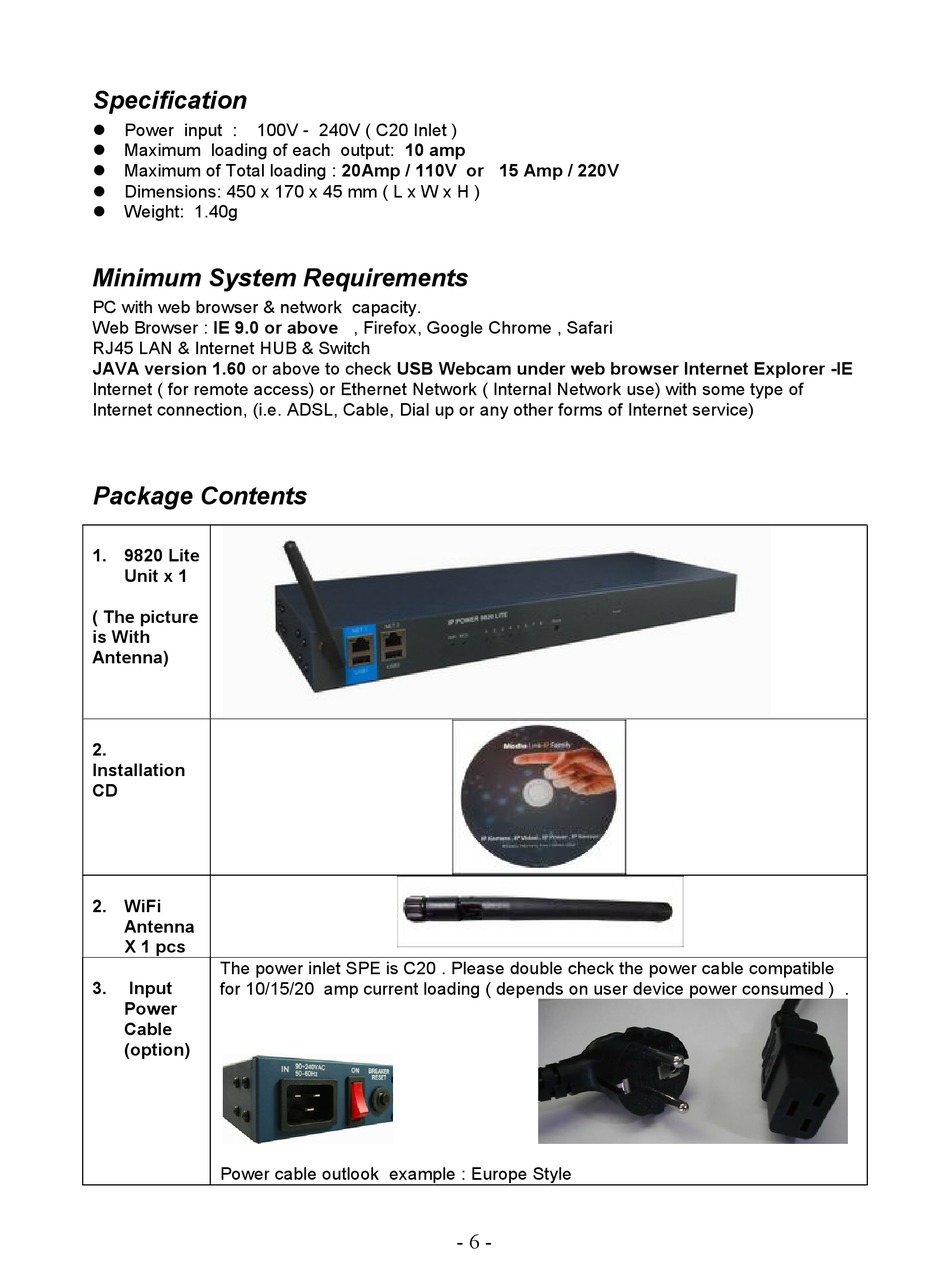

Specification

Power input : 100V - 240V ( C20 Inlet )

 Maximum loading of each output: 10 amp
 Maximum of Total loading : 20Amp / 110V or 15 Amp / 220V
Dimensions: 450 x 170 x 45 mm ( L x W x H )

 Weight: 1.40g

Minimum System Requirements

PC with web browser & network capacity.
Web Browser : IE 9.0 or above , Firefox, Google Chrome , Safari
RJ45 LAN & Internet HUB & Switch
JAVA version 1.60 or above to check USB Webcam under web browser Internet Explorer -IE
Internet ( for remote access) or Ethernet Network ( Internal Network use) with some type of
Internet connection, (i.e. ADSL, Cable, Dial up or any other forms of Internet service)

Package Contents

1. 9820 Lite
Unit x 1
( The picture
is With
Antenna)
2.
Installation
CD
2. WiFi
Antenna
X 1 pcs
The power inlet SPE is C20 . Please double check the power cable compatible
3. Input for 10/15/20 amp current loading ( depends on user device power consumed ) .
Power
Cable
(option)
Power cable outlook example : Europe Style
- 6 -
