Interface Description

Front View

From Left side to right side
Wifi Connection :
Network & USB :
WiFi - Signal light
MCU - light
Number 1 to 8 - Outlet status
Reset :
Connect with the WiFi Antenna in package .

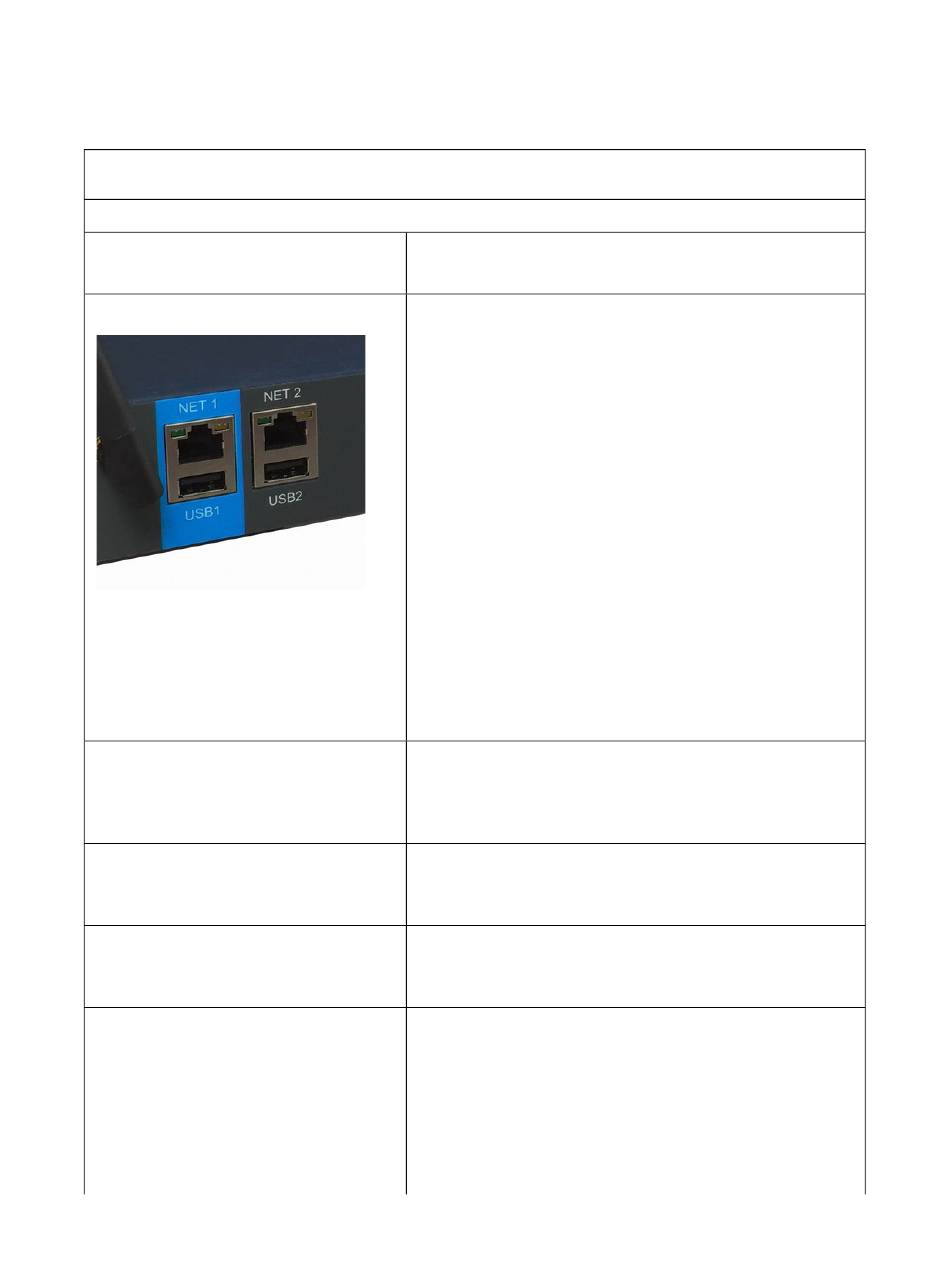

Network Connection :
For 10/100 Mbps network .
There are 2 network RJ45 connect :
NET1 - BLUE is for network connection
NET2 – Gray is for by pass as hub function only
Please connect NET1 to the Router/ Hub / IP Switch.
USB Connection for USB Camera.
There are 2 USB 2.0 connectors :
One is for USB Camera connection for USB Web
Camera with UPNP & video format as M-JPG / YUV.
Another one is for USB Flash Drive saving current
& temperature sensor data as CSV files
Please do not connect more than 1pc. USB Camera to
9820 Lite .
WiFi Signal light in flash Green . The Indicator shows
the WiFi signal transfer status. The light will be keep
flash as WiFi connected .
For internal developing purpose. Green light is always
ON
To indictor the power ON /OFF status of each outlet
Light in Green : power ON
Light in RED : power OFF
To There are two functions for this button.
* Enable WPS function by one short click
There is one long beep as enable WPS function. Please
refer page #16 for details.
* Set back to default setting by long press
- 7 -
