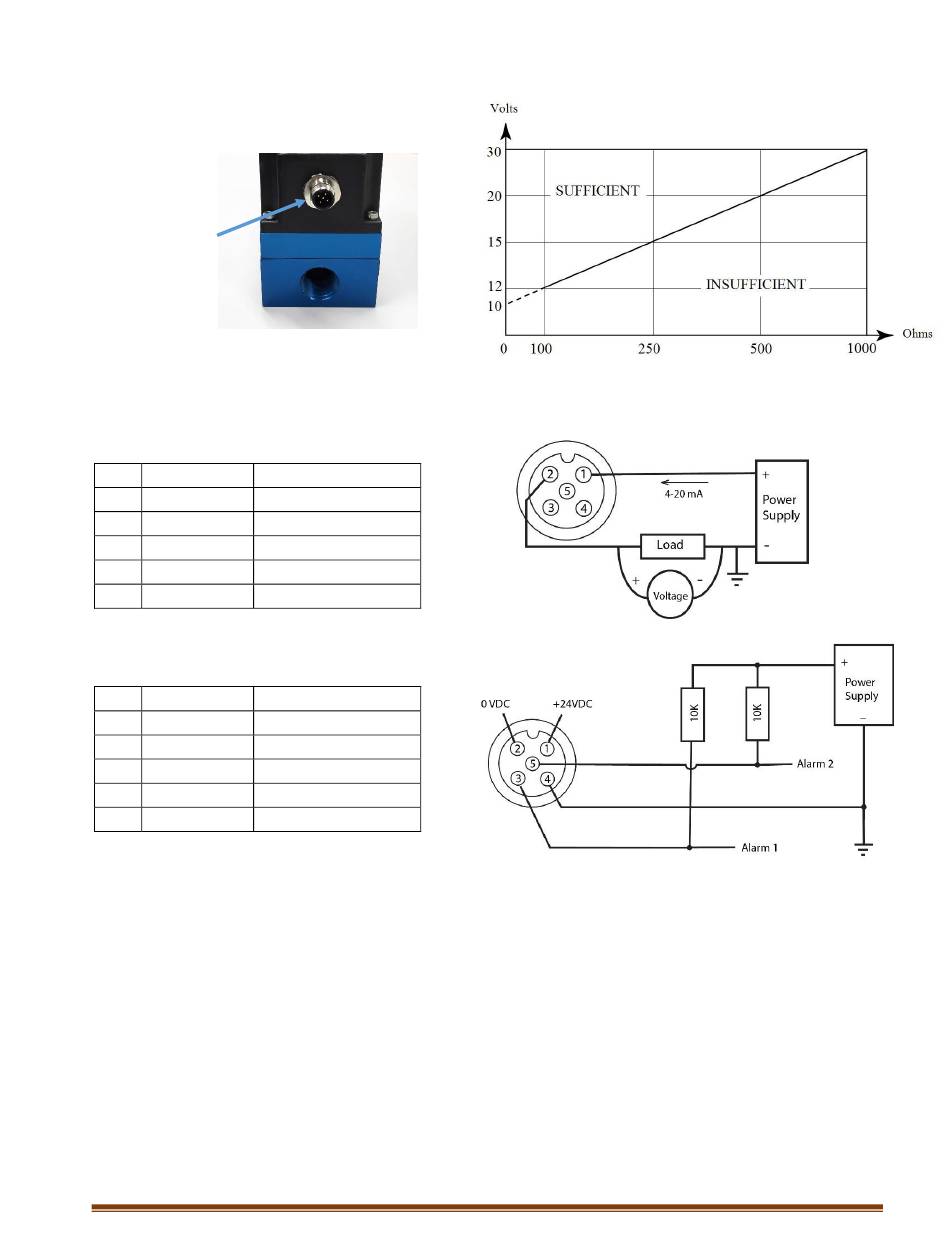

WIRING DIAGRAMS

Power Connector
5 Pins
4-20 mA Output
Pin Wire color Function
1 Brown +24VDC
2 White 0VDC
3 Blue N/U
4 Black N/U
5 Gray N/U
4-20 mA with Alarm Option
Pin Wire color Function
1 Brown +24VDC
2 White 0VDC
3 Blue Alarm 1
4 Black Common
5 Gray Alarm 2
Alarm wiring example:
Using 10K pull-up resistors,
Alarm 1 or 2 output is pulled high when deactivated and goes to ground when activated
(transistor conducting).
FPMAN-1-190214
Load Resistor vs. Power Supply
