Dimensions - Ecolab ES-2000HT INTL Installation & Operation Manual

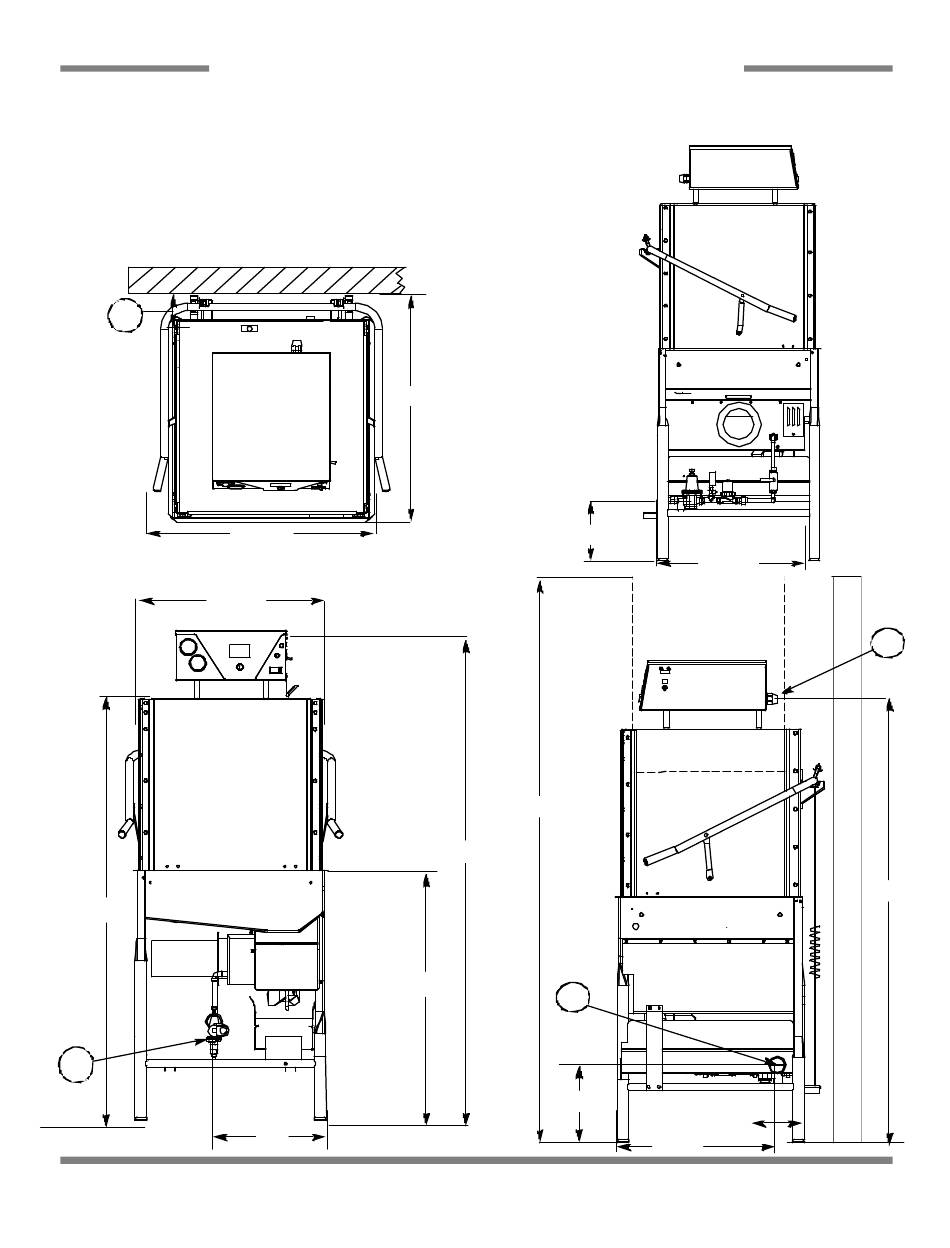

A- WATER INLET (1/2" NPT)
B- ELECTRICAL CONNECTION POINT
C- DRAIN (2" NPT)
D- STANDARD CLEARANCE BETWEEN MACHINE
AND WALL (WITH DISHTABLE) IS 4".
NOTE: All vertical dimensions are +/- 1/2" due to adjustable feet.
D
32 1/4"
24 7/8"
56 5/8"
A
SECTION 1: SPECIFICATION INFORMATION

DIMENSIONS

LEGEND
29 3/4"
34"
15"
ES-2000HT INTL Installation & Operation Manual 7610-003-24-90
Issued: 07-10-2006 Revised: N/A
8 3/8"
75 1/4"
67"
C
9 3/4"
3
25 1/4"
6 3/8"
22 1/2"
B
61"
