Specifications - Ecolab ES-2000HT INTL Installation & Operation Manual

PERFORMANCE/CAPABILITIES
OPERATING CAPACITY (RACKS/HOUR)
RACKS PER HOUR (NSF RATED)
DISHES PER HOUR
GLASSES PER HOUR
OPERATING CYCLE (SECONDS)
WASH TIME
RINSE TIME
TOTAL CYCLE TIME
TANK CAPACITY (GALLONS)
WASH TANK (MINIMUM)
BOOSTER TANK
WASH PUMP CAPACITY
GALLONS PER MINUTE
TEMPERATURES
WASH---°F (MINIMUM)
RINSE---°F (MINIMUM)

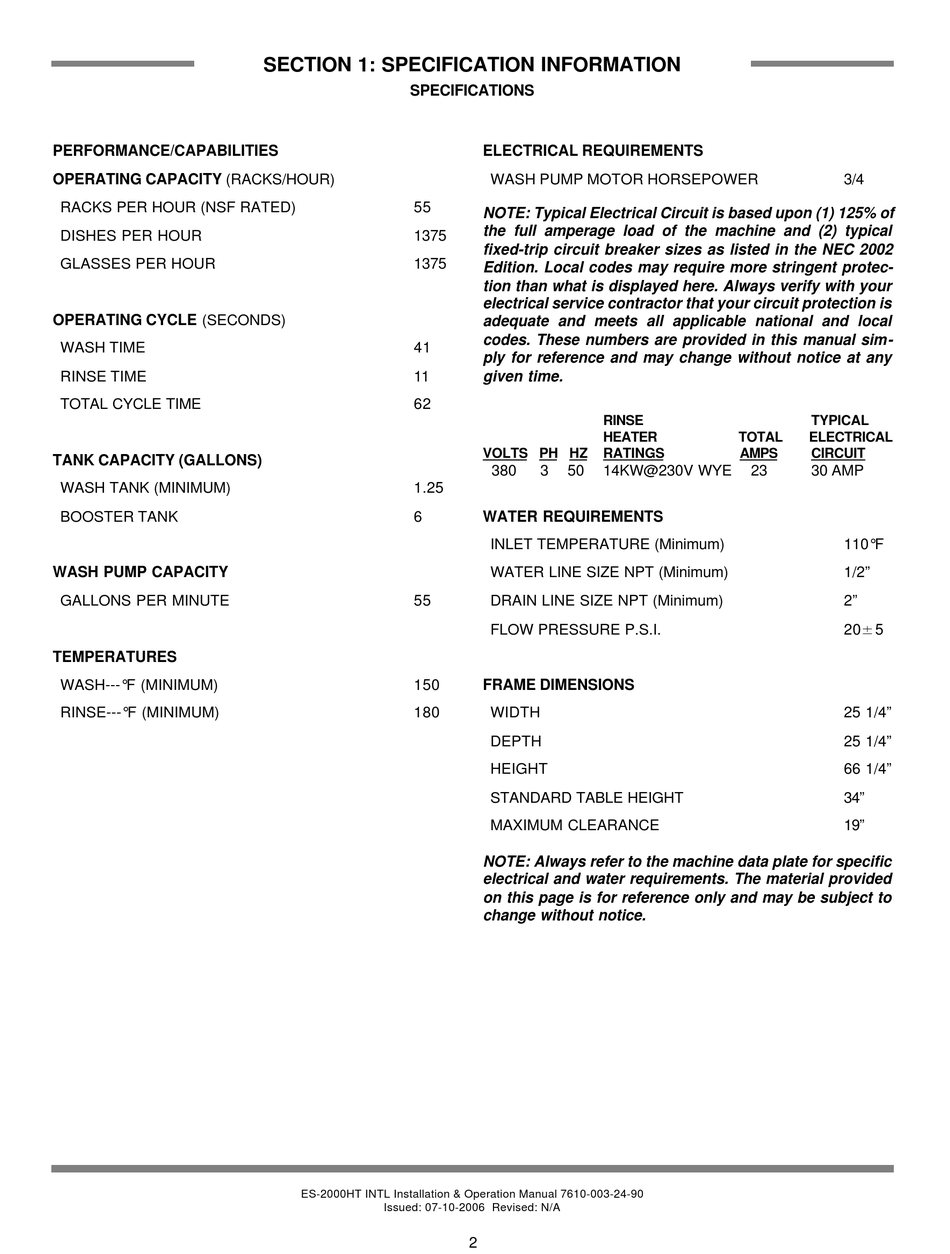

SECTION 1: SPECIFICATION INFORMATION

SPECIFICATIONS

55
1375
1375
41
11
62
1.25
6
55
150
180
ES-2000HT INTL Installation & Operation Manual 7610-003-24-90
Issued: 07-10-2006 Revised: N/A
ELECTRICAL REQUIREMENTS
WASH PUMP MOTOR HORSEPOWER
NOTE: Typical Electrical Circuit is based upon (1) 125% of
the full amperage load of the machine and (2) typical
fixed-trip circuit breaker sizes as listed in the NEC 2002
Edition. Local codes may require more stringent protec-
tion than what is displayed here. Always verify with your
electrical service contractor that your circuit protection is
adequate and meets all applicable national and local
codes. These numbers are provided in this manual sim-
ply for reference and may change without notice at any
given time.
RINSE
HEATER
VOLTS PH HZ RATINGS
380 3 50 14KW@230V WYE
WATER REQUIREMENTS
INLET TEMPERATURE (Minimum)
WATER LINE SIZE NPT (Minimum)
DRAIN LINE SIZE NPT (Minimum)
FLOW PRESSURE P.S.I.
FRAME DIMENSIONS
WIDTH
DEPTH
HEIGHT
STANDARD TABLE HEIGHT
MAXIMUM CLEARANCE
NOTE: Always refer to the machine data plate for specific
electrical and water requirements. The material provided
on this page is for reference only and may be subject to
change without notice.
2
3/4
TYPICAL
TOTAL ELECTRICAL
AMPS CIRCUIT
23 30 AMP
110°F
1/2"
2"
20A5
25 1/4"
25 1/4"
66 1/4"
34"
19"
