10. Connect the wiring harness connector to the circuit board connectors.
11. Route the wiring harness under the fan.
12. Secure the fan/grill assembly to the side of the enclosure (see Figure 15) using the four
flat-head screws removed in step 4.
13. Reconnect the AC power cord and place the RIU AC power On/Off switch in the ON
position (press I).
14. Verify that the fan runs properly following power up.
15. Notify the NOC or alarm monitoring system operator that the system is going back
online.
Page 24
© 2001, ADC Telecommunications, Inc.
LATCH

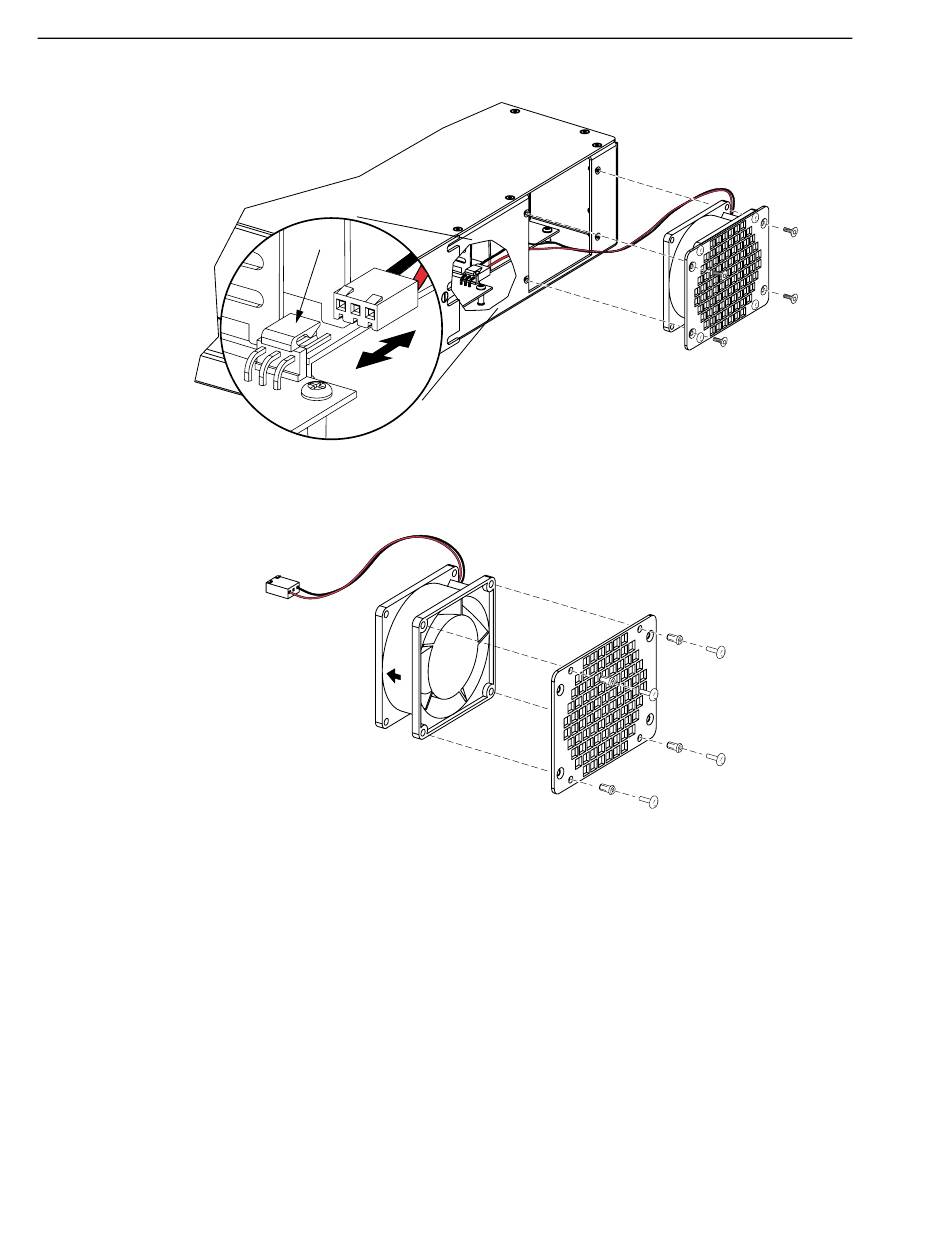

Figure 15. Fan/Grill Assembly Removal
Figure 16. Removing Fan From Grill
16485-B
16637-A
