TYPE-N MALE CONNECTOR

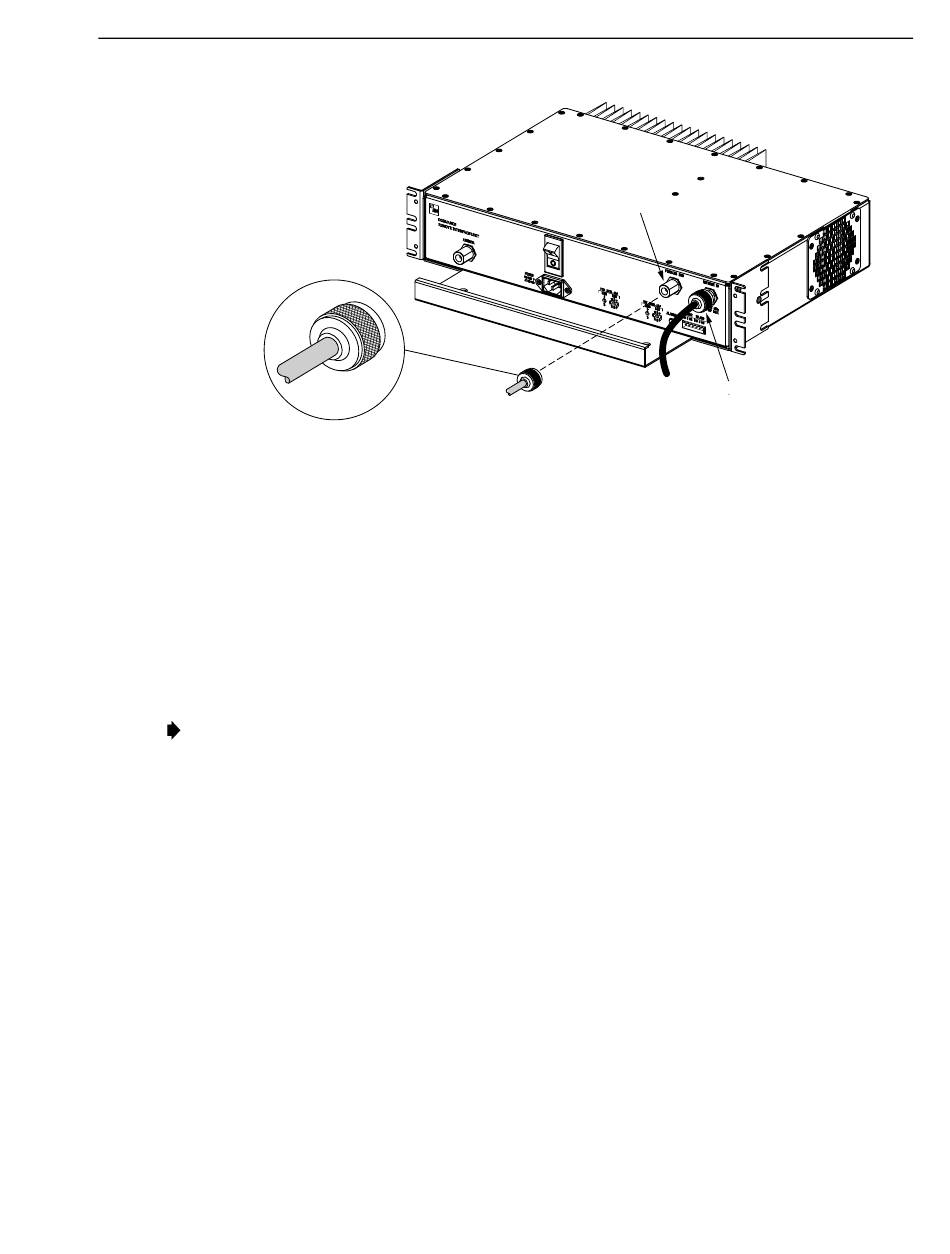

Figure 9. FORWARD OUT and REVERSE IN Coaxial Cable Connections
4. Connect the reverse path cable to the REVERSE IN connector on the RIU front panel as
shown in Figure 9.
5. Dress and secure cables at the RIU.
2.5.2 Antenna Coaxial Cable Connection
Use the following procedure to install the coaxial cable that links the RIU to the donor
antenna:
Note: To comply with Maximum Permissible Exposure (MPE) requirements, antennas must be
installed to provide at least 20 centimeters (8 inches) of separation from all persons per FCC
47 CFR part 2.1091.
1. Obtain the required length of high performance, flexible, low loss 50-ohm coaxial
communications cable for the antenna coaxial connection.
2. Route the coaxial cable between the RIU and the donor antenna (per system design) and
cut to the required length. Allow sufficient slack for dressing and organizing cables at the
RIU and antenna.
3. Terminate each cable end with a type N male connector following the connector
supplier's recommendations.
4. Connect the RIU end of the antenna cable to the ANTENNA connector on the RIU front
panel as shown in Figure 10.
5. Connect the antenna end of the antenna cable to the donor antenna.
6. Dress and secure cables at the RIU and donor antenna.
ADCP-75-114 • Issue C • June 2001
FORWARD OUT
CONNECTOR
REVERSE IN
CONNECTOR
© 2001, ADC Telecommunications, Inc.
16652-A
