2.4 Chassis Ground Connection

A stud is provided on the rear side of the chassis for connecting a grounding wire to the
chassis. Use the following procedure to connect the grounding wire to the chassis and to route
the grounding wire to an approved earth ground source:
1. Obtain a length of #18 AWG (1.00 mm) insulated stranded copper wire for use as a
chassis grounding wire.
2. Terminate one end of the wire with a ring terminal.
3. Locate the chassis ground stud at the rear of the RIU as shown in Figure 8.
4. Attach the ring end of the wire to the chassis ground stud (see Figure 8).
5. Route the free end of the chassis grounding wire to an approved (per local code or
practice) earth ground source.

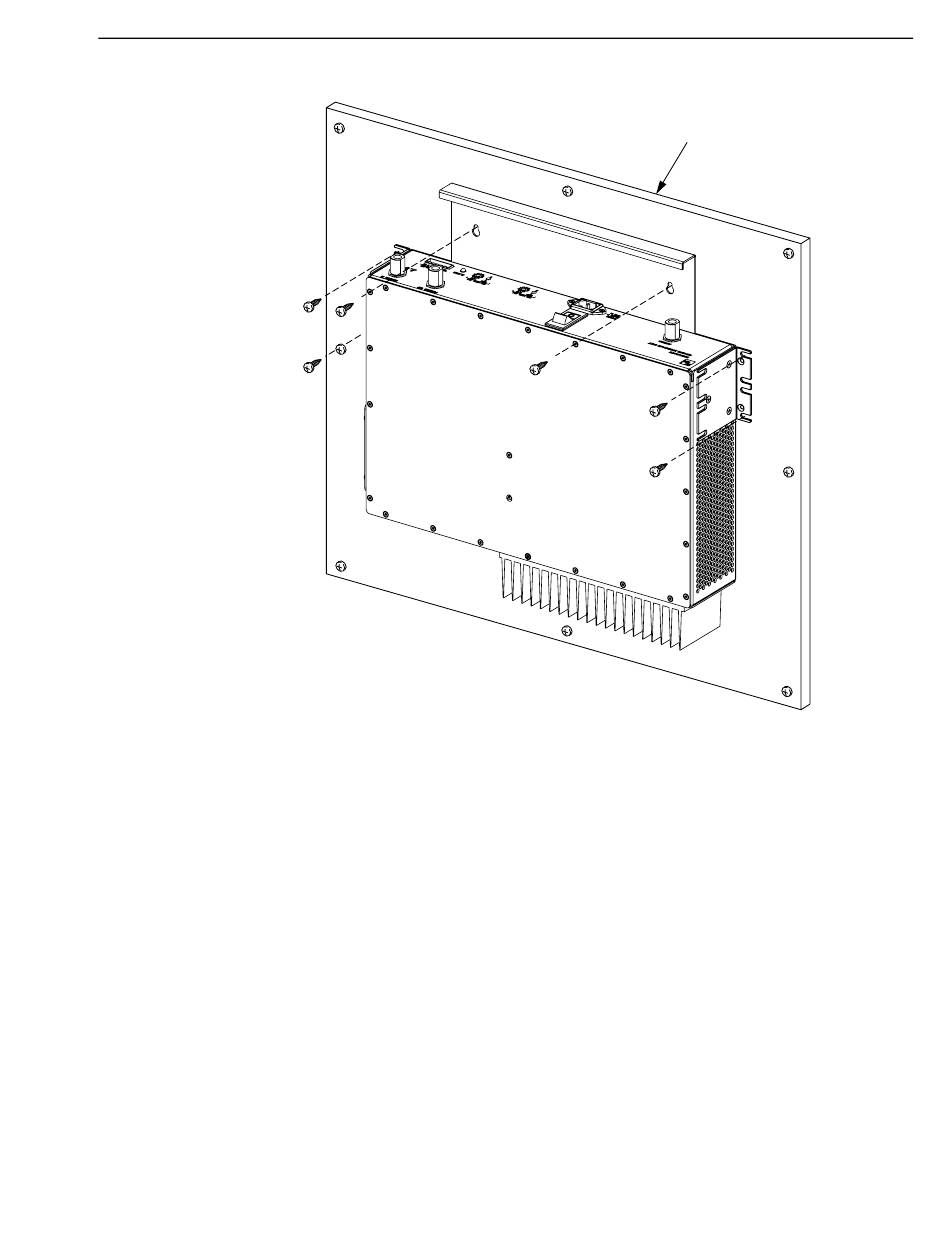

Figure 7. RIU Wall-Mount Installation
ADCP-75-114 • Issue C • June 2001
BACKER BOARD SUCH
AS 3/4-INCH PLYWOOD
16486-B
© 2001, ADC Telecommunications, Inc.
Page 11
