Magnetic Contact Detector
TSM04
General Introduction
The TSM04 Magnetic Detector is used in security or home automation applications
to detect opening or closing of doors/windows. It consists of two parts; a Detector
and a Magnet. Opening the protected doors/ windows will remove the magnetic field,
sending an alarm signal to the gateway. Its great compatibility with our U-Net family
security products makes it suitable for smart home cloud based platforms such as
Homesys.

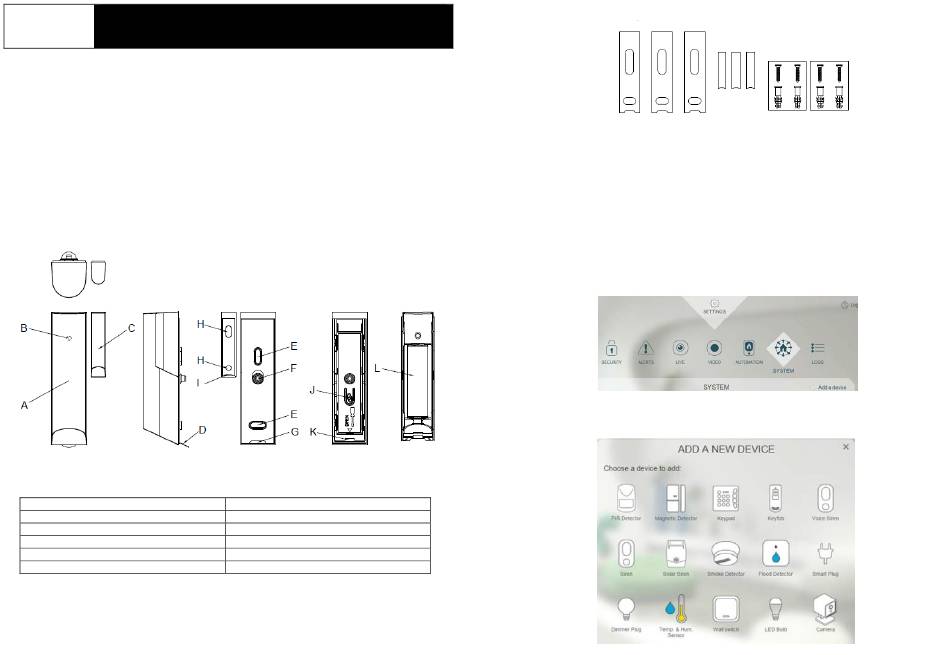

Product Layout
A. Detector
B. LED indicator
C. Magnet
D. Battery mylar
E. Screw mounting hole
F. Tamper
G. Mylar hole
H. Screw mounting hole
I
Slot
J
Learning button
K Mylar hole
L
Battery
Accessories :
3M rubber
Binding with Homesys
1. Device with battery included. The battery is isolated by a mylar. Don't remove
the mylar yet.
2. Log into the Homesys account from a web browser.
3. Select "System", then "Add a Device"
4. Select "Magnetic Detector"
.
1
Screws
Advertisement
Table of Contents
Related Manuals for EVERSPRING TSM04
Summary of Contents for EVERSPRING TSM04
-
Page 1: General Introduction
Accessories : Magnetic Contact Detector TSM04 General Introduction The TSM04 Magnetic Detector is used in security or home automation applications to detect opening or closing of doors/windows. It consists of two parts; a Detector 3M rubber Screws and a Magnet. Opening the protected doors/ windows will remove the magnetic field, Binding with Homesys sending an alarm signal to the gateway. -
Page 2: Manual Binding
5. The following screen will appear. This means the gateway is entering binding Note: Time-out will occur if the binding process was unsuccessful. Please refer to the “Manual Binding”. mode. Manual Binding 1. Remove the backplate of the detector and leaving the battery inside the detector 2. -
Page 3: Operation & Testing
Operation & Testing 4. Make sure the parallel gap between the magnet and detector is less than 20mm and that they are aligned from the top. An alarm will be triggered if the gap is 1. Go to System, and select ARM greater than 35mm. -
Page 4: Specifications
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Reset to Factory Settings To reset TSM04 back to factory default state: 1. Press and hold the Learning button for 3 seconds until the LED flashes moderately then release the button. - Page 5 NCC 警語: Federal Communication Commission Interference Statement ♦ 根據 NCC 低功率電波輻射性電機管理辦法規定： This equipment has been tested and found to comply with the limits for a Class B 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不 得擅自變更頻率、加大功率或變更原設計之特性及功能。 digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to 第十四條...
