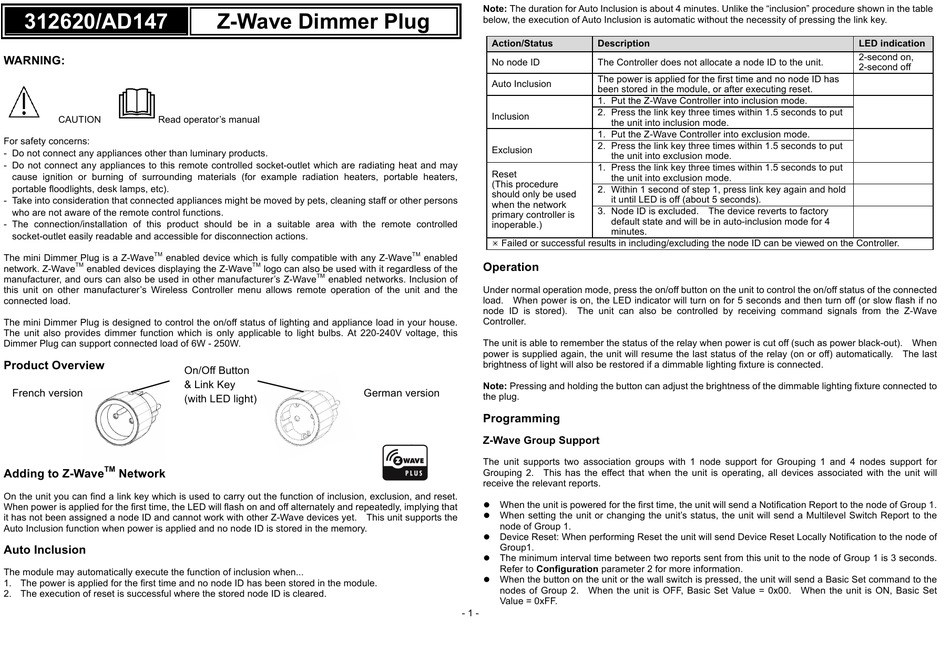

EVERSPRING 312620 Operator's Manual

Z-wave dimmer plug

Advertisement

Quick Links

312620/AD147

WARNING:
CAUTION
Read  operator's  manual
For  safety  concerns:
-­   Do  not  connect  any  appliances  other  than  luminary  products.
-­   Do  not  connect  any  appliances  to  this  remote  controlled  socket-­outlet  which  are  radiating  heat  and  may
cause   ignition   or   burning   of   surrounding   materials   (for   example   radiation   heaters,   portable   heaters,
portable  floodlights,  desk  lamps,  etc).
-­   Take  into  consideration  that  connected  appliances  might  be  moved  by  pets,  cleaning  staff  or  other  persons
who  are  not  aware  of  the  remote  control  functions.
-­   The   connection/installation   of   this   product   should   be   in   a   suitable   area   with   the   remote   controlled
socket-­outlet  easily  readable  and  accessible  for  disconnection  actions.

TM
The  mini  Dimmer  Plug  is  a  Z-­Wave
 enabled  device  which  is  fully  compatible  with  any  Z-­Wave
TM
network.  Z-­Wave
 enabled  devices  displaying  the  Z-­Wave
manufacturer,  and  ours  can  also  be  used  in  other  manufacturer's  Z-­Wave
this   unit   on   other   manufacturer's   Wireless   Controller   menu   allows   remote   operation   of   the   unit   and   the
connected  load.

The  mini  Dimmer  Plug  is  designed  to  control  the  on/off  status  of  lighting  and  appliance  load  in  your  house.
The   unit   also   provides   dimmer   function   which   is   only   applicable   to   light   bulbs.   At   220-­240V   voltage,   this
Dimmer  Plug  can  support  connected  load  of  6W  -­  250W.

Product  Overview
French  version






TM
Adding  to  Z-­Wave
 Network

On  the  unit  you  can  find  a  link  key  which  is  used  to  carry  out  the  function  of  inclusion,  exclusion,  and  reset.
When  power  is  applied  for  the  first  time,  the  LED  will  flash  on  and  off  alternately  and  repeatedly,  implying  that
it  has  not  been  assigned  a  node  ID  and  cannot  work  with  other  Z-­Wave  devices  yet.     This  unit  supports  the
Auto  Inclusion  function  when  power  is  applied  and  no  node  ID  is  stored  in  the  memory.

Auto  Inclusion

The  module  may  automatically  execute  the  function  of  inclusion  when...
1.   The  power  is  applied  for  the  first  time  and  no  node  ID  has  been  stored  in  the  module.
2.   The  execution  of  reset  is  successful  where  the  stored  node  ID  is  cleared.
Z-­Wave  Dimmer  Plug
TM
 logo  can  also  be  used  with  it  regardless  of  the
TM
 enabled  networks.  Inclusion  of
On/Off  Button
&  Link  Key

(with  LED  light)
Note:  The  duration  for   A uto  Inclusion  is  about  4  minutes.  Unlike  the  "inclusion"  procedure  shown  in  the  table
below,  the  execution  of   A uto  Inclusion  is  automatic  without  the  necessity  of  pressing  the  link  key.

Action/Status
No  node  ID
Auto  Inclusion

Inclusion

Exclusion
Reset
(This  procedure
should  only  be  used
when  the  network
primary  controller  is
inoperable.)
ø  Failed  or  successful  results  in  including/excluding  the  node  ID  can  be  viewed  on  the  Controller.

TM
 enabled
Operation

Under  normal  operation  mode,  press  the  on/off  button  on  the  unit  to  control  the  on/off  status  of  the  connected
load.     When  power  is  on,  the  LED  indicator  will  turn  on  for  5  seconds  and  then  turn  off  (or  slow  flash  if  no
node   ID   is   stored).     The   unit   can   also   be   controlled   by   receiving   command   signals   from   the   Z-­Wave
Controller.

The  unit  is  able  to  remember  the  status  of  the  relay  when  power  is  cut  off  (such  as  power  black-­out).     When
power  is  supplied  again,  the  unit  will  resume  the  last  status  of  the  relay  (on  or  off)  automatically.     The  last
brightness  of  light  will  also  be  restored  if  a  dimmable  lighting  fixture  is  connected.

Note:  Pressing  and  holding  the  button  can  adjust  the  brightness  of  the  dimmable  lighting  fixture  connected  to
German  version
the  plug.

Programming

Z-­Wave  Group  Support

The   unit   supports   two   association   groups   with   1   node   support   for   Grouping   1   and   4   nodes   support   for
Grouping   2.     This   has   the   effect   that   when   the   unit   is   operating,   all   devices   associated   with   the   unit   will
receive  the  relevant  reports.

l   When  the  unit  is  powered  for  the  first  time,  the  unit  will  send  a  Notification  Report  to  the  node  of  Group  1.
l   When  setting  the  unit  or  changing  the  unit's  status,  the  unit  will  send  a  Multilevel  Switch  Report  to  the
node  of  Group  1.
l   Device  Reset:  When  performing  Reset  the  unit  will  send  Device  Reset  Locally  Notification  to  the  node  of
Group1.
l   The  minimum  interval  time  between  two  reports  sent  from  this  unit  to  the  node  of  Group  1  is  3  seconds.
Refer  to  Configuration  parameter  2  for  more  information.
l   When  the  button  on  the  unit  or  the  wall  switch  is  pressed,  the  unit  will  send  a  Basic  Set  command  to  the
nodes   of   Group   2.     When   the   unit   is   OFF,   Basic   Set   Value   =   0x00.     When   the   unit   is   ON,   Basic   Set
Value  =  0xFF.
-­  1  -­
Description
The  Controller  does  not  allocate  a  node  ID  to  the  unit.
The  power  is  applied  for  the  first  time  and  no  node  ID  has
been  stored  in  the  module,  or  after  executing  reset.
1.   Put  the  Z-­Wave  Controller  into  inclusion  mode.
2.   Press  the  link  key  three  times  within  1.5  seconds  to  put
the  unit  into  inclusion  mode.
1.   Put  the  Z-­Wave  Controller  into  exclusion  mode.
2.   Press  the  link  key  three  times  within  1.5  seconds  to  put
the  unit  into  exclusion  mode.
1.   Press  the  link  key  three  times  within  1.5  seconds  to  put
the  unit  into  exclusion  mode.
2.   Within  1  second  of  step  1,  press  link  key  again  and  hold
it  until  LED  is  off  (about  5  seconds).
3.   Node  ID  is  excluded.     The  device  reverts  to  factory
default  state  and  will  be  in  auto-­inclusion  mode  for  4
minutes.
LED  indication
2-­second  on,
2-­second  off







Advertisement

loading
Need help?

Need help?

Do you have a question about the 312620 and is the answer not in the manual?

Questions and answers

Summary of Contents for EVERSPRING 312620

  • Page 1 Note:  The  duration  for   A uto  Inclusion  is  about  4  minutes.  Unlike  the  “inclusion”  procedure  shown  in  the  table   312620/AD147   Z-­Wave  Dimmer  Plug   below,  the  execution  of   A uto  Inclusion  is  automatic  without  the  necessity  of  pressing  the  link  key.  ...
  • Page 2: Troubleshooting

      Remember  the  last  status:   Z-­Wave  Plus  Info   Parameter  Number   Size   Range   Default     3   1   1/0   1:  remember   Role  Type   Node  Type   Installer  Icon   User  Icon   (0:  do  not  remember)  ...
  • Page 3 Transmission  Range   30  meters  (Indoor;;  Open  space)   Working  Temperature   -­10°C  -­  40°C   *Specifications  are  subject  to  change  without  notice                 Warning:     Do  not  dispose  of  electrical  appliances  as  unsorted  municipal  waste.  Please  use  separate  collection  facilities   instead.
