Z-Wave Presence
Detector
Firmware Version : 1.3
Quick Start
S
This device is a Z-Wave Sensor. Inclusion, Exclusion and wakeup are confirmed by three times quickly
hitting the tamper switch on the backside of the case.
Please refer to the chapters below for detailed information about all aspects of the products usage.
What is Z-Wave?
This device is equipped with wireless communication complying to the Z-Wave standard. Z-Wave is the
international standard for wireless communication in smart homes and buildings. It is using the
frequency of 868.42 MHz to realize a very stable and secure communication. Each message is reconfirmed
(two-way communication) and every mains powered node can act as a repeater for other nodes (meshed
network) in case the receiver is not in direct wireless range of the transmitter.
Z-Wave differentiates between Controllers and Slaves. Slaves are either sensors (S) transmitting metered or
measured data or actuators (A) capable to execute an action. Controllers are either static mains powered
controllers (C) also referred to as gateways or mobile battery operated remote controls (R). This results in a
number of possible communication patterns within a Z-Wave network that are partly or completely supported
by a specific device.
1. Controllers control actuators
2. Actuators report change of status back to controller
Advertisement
Table of Contents
Related Manuals for EVERSPRING EVR SP814
Summary of Contents for EVERSPRING EVR SP814
-
Page 1: Quick Start

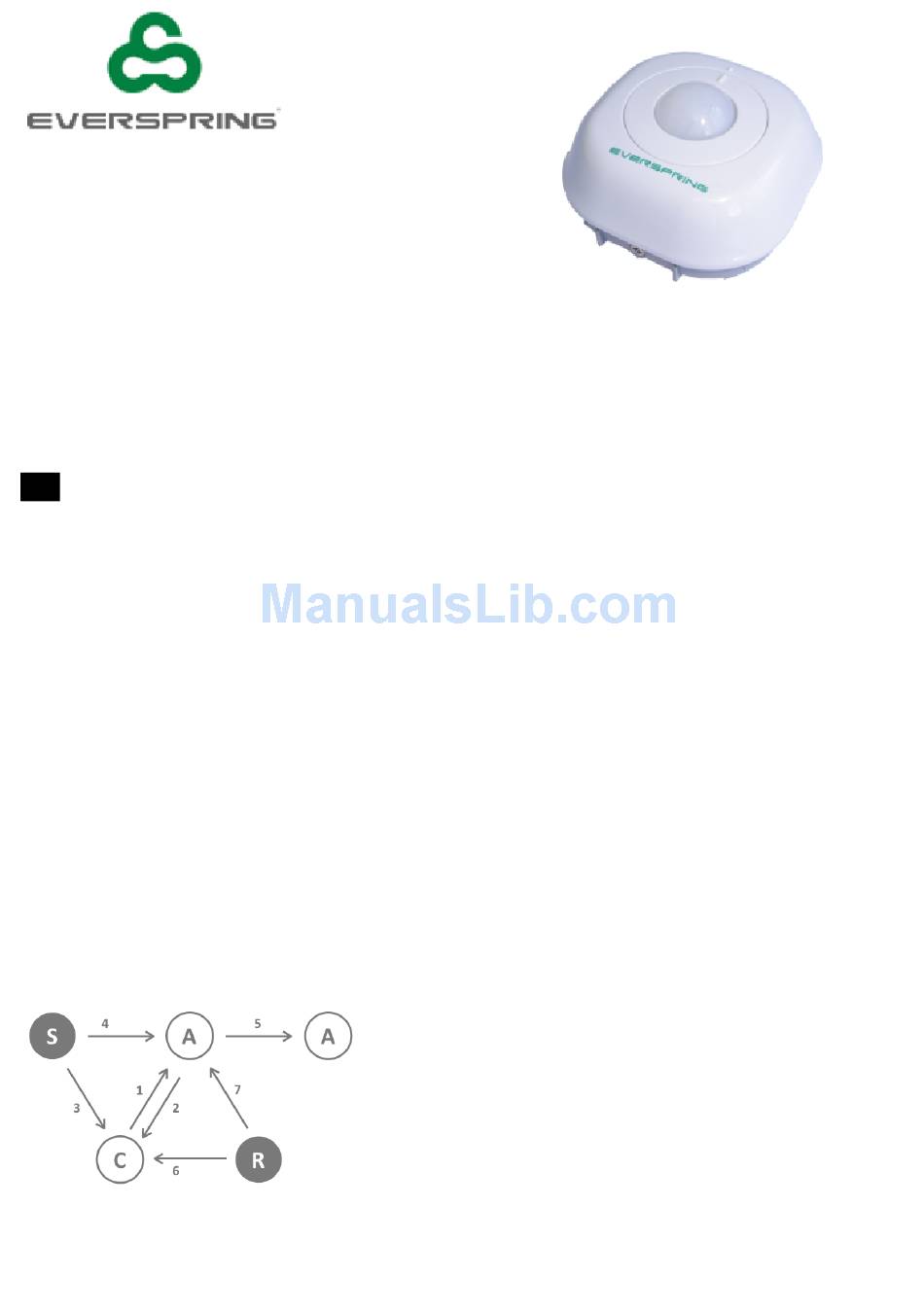

EVR_SP814 Z-Wave Presence Detector Firmware Version : 1.3 Quick Start This device is a Z-Wave Sensor. Inclusion, Exclusion and wakeup are confirmed by three times quickly hitting the tamper switch on the backside of the case. Please refer to the chapters below for detailed information about all aspects of the products usage. What is Z-Wave? This device is equipped with wireless communication complying to the Z-Wave standard. -
Page 2: Product Description
3. Sensors report change of status of measured values to controller 4. Sensors directly control actuators 5. Actuators control other actuators 6. Remote controls send signals to static controllers to trigger scenes or other actions 7. Remote controls control other actuators. There are two different role a controller can have. - Page 3 1. Release the Sensor from the battery cover by removing the fixing screws. 2. Put the 3 * AA 1.5V batteries in the battery compartment. 3. For mounting use mount plate and the screws. The detector can be mounted either on a wall or under a ceiling. There is a dedicated lens cover for the two mounting positions which has to be installed.
- Page 4 The recommended position for ceiling mounting is at the height of 2.8m from the floor. At this height, the optimum detection range is up to 5m with coverage range of 360 degrees. Before selecting a position for a Motion Detector the following points should be noted: Do not position the detector facing a window or direct sunlight.
- Page 5 Operating the device Coverage Range Adjustments: Two types of lens covers are provided for the detector. Wall-lens cover is to be used when the detector is wall-mounted, whereas ceiling-lens cover is to be used when the detector is ceiling-mounted. The coverage range adjustment is only applicable to ceiling-lens cover;...
- Page 6 Click three times quickly on the tamper switch behind the battery cover or a detected action by the sensor will wake up the device and keep it awake. It is possible to set the node ID to 255 to send wakeup notifications as broadcast. In this mode device takes more time to go to sleep and drains battery faster, but can notify all it's direct neighbors about a wakeup.
-
Page 7: Technical Data
Alarm (version 1) Technical Data Battery Type 1 * CR2 Explorer Frame Support No 5.02 pl2 Device Type Slave with routing capabilities Generic Device Class Binary Sensor Specific Device Class Routing Binary Sensor Routing FLiRS Firmware Version Explanation of Z-Wave specific terms Controller —...
