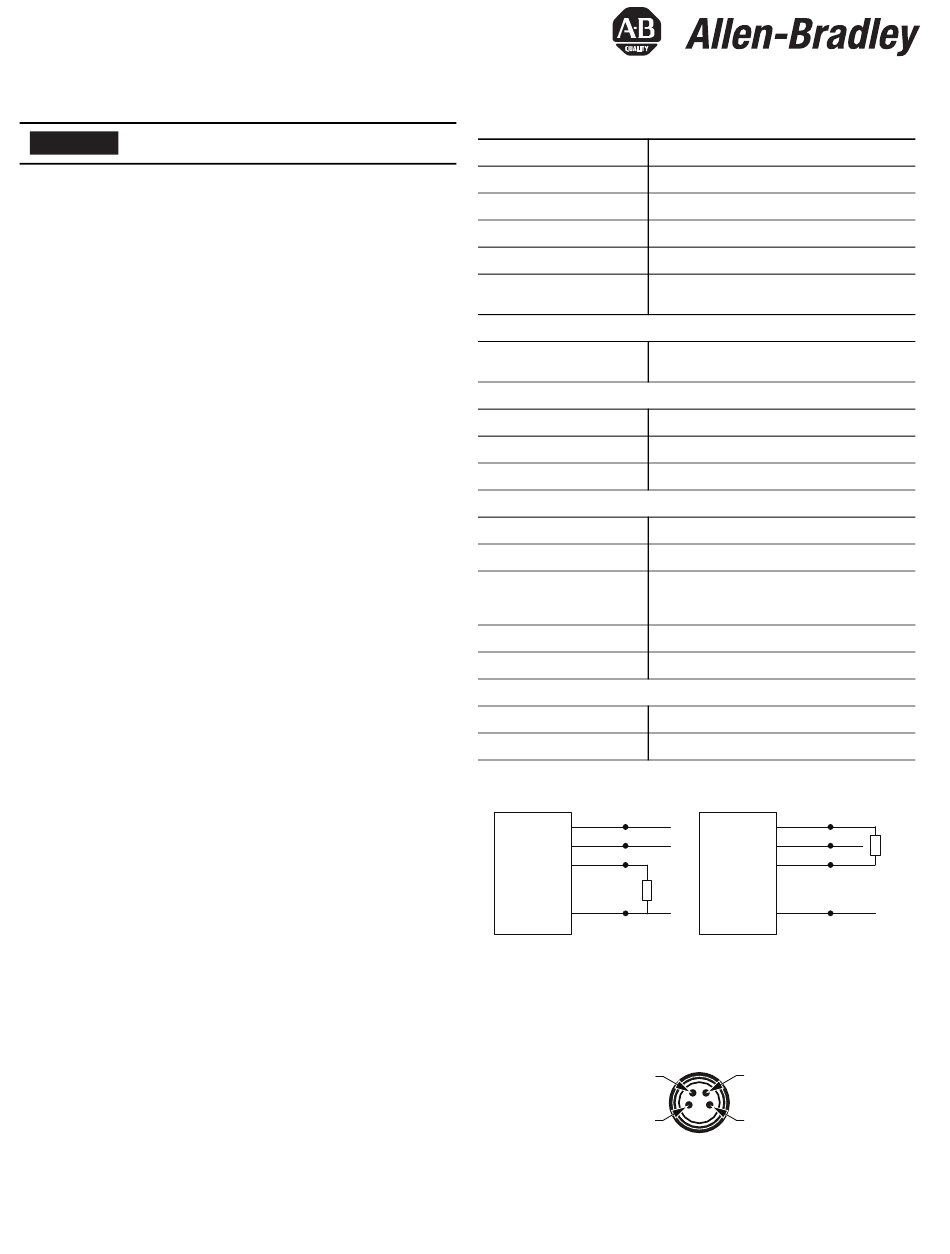

Allen-Bradley 42KD Installation Instructions

42KD Miniature Sensor
Installation Instructions
Original instructions in English
SAVE THESE INSTRUCTIONS FOR FUTURE USE.
IMPORTANT
Description
The 42KD Miniature sensor provides a solution for applications in very
small confined spaces. The 42KD sensor is the smallest sensor in the
Photoelectric sensor portfolio. It offers various sensing modes, sensing
distances, auto PNP/NPN, push button/remote teach, and push
button lock options. Although miniature in size the features and
performance on this sensor are reliable and competitive.
The 42KD is available in visible red LED models in polarized
retroreflective and fixed/adjustable background suppression sensing
modes. The teach button simplifies the setup process and even
provides the option to remote teach the sensor. The sensor also has
the option of light operate (L.O.) or dark operate (D.O.). All 42KD
sensors have a unique "auto PNP/NPN" output which reduces stocking
cost and simplifies selection, installation, and maintenance.
The 42KD is an excellent solution to a broad range of applications
including industries such as automotive, packaging, and material
handling. These features make the 42KD sensor easy to apply in
challenging applications, especially where space is a limitation.
Features
• Smallest sensor in the Rockwell Automation portfolio
• Auto NPN/PNP output
• Easy setup of switch points using teach button
• External teach capability
• IP67 enclosure
• Self-contained sensor
• Mounting accessory included with product

Specifications

Certifications CE Marked for all applicable directives
Enclosure Type Rating IP67
Operating Temperature [C(F)] -20...+50° (-4...+122°)
Storage Temperature [C(F)] -20...+80° (-4...+176°)
Vibration 10...55 Hz, 1 mm amplitude, meets or exceeds IEC 60947-5-2
30 g with 11 ms pulse duration, meets or exceeds
Shock
IEC 60947-5-2
Optical
Green: Operating voltage on;
Indicator LEDs
Yellow: Object detected/switching output active
Electrical
Operating Voltage 10...30V DC
No Load Supply Current LED models: ≤30 mA
Protection Type Short circuit and reverse polarity
Outputs
Response Time 500 μs
Output Type Auto PNP/NPN
Complimentary light and dark operate via push button and
Output Function remote teach fixed background suppression models;
Complimentary light and dark operate via remote teach
Output Current ≤50 mA
Switching Frequency 1000 Hz
Mechanical
Housing Material PUR
Lens Material PMMA

Wiring Diagrams

+V
Brown (1)
Input
White (2)
Black (4)
Load
Blue (3) -V
PNP Operation
Pinouts
The quick-disconnect is shown below. The pin numbers correspond to
male connectors on the sensor.
2
1
+V
Brown (1)
Input
White (2)
Black (4)
Blue (3) -V
NPN Operation
4
3
M8 Male
Rockwell Automation 42KD-IN001A-EN-P—October 2014
Load
