Notes
Remote programming and Remote Updating of the PABX and or AL Module 4504 will not be
possible when using an analogue exchange line only.
The AL Module 4504 does not support meter pulse detection on the analogue exchange line.
The AL Module 4504 will not replace the connection modue.

Connection of Analogue Lines

Connecting the wires:
- Strip 11 mm of insulation from the wires.
- Slide the individual wires into the clip up to the insulation without pressing the spring clip.
- Push
- To release a wire, press the spring clip down using a suitable object (small screwdriver)
and pull out the wire.

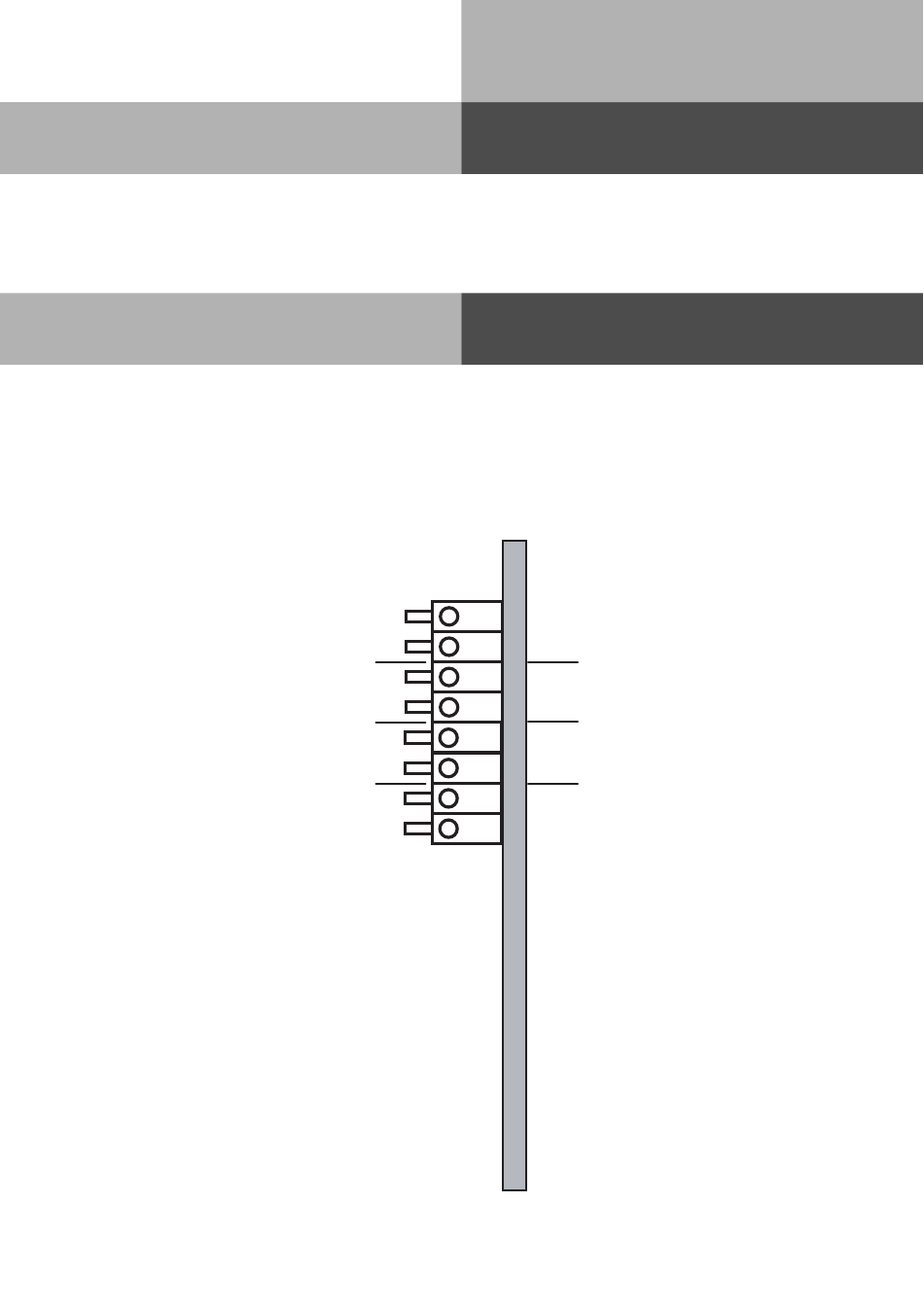

Line 1
Line 2
Line 3
Line 4
Tip 1
Ring 1
Tip 2
Ring 2
Tip 3
Ring 3
Tip 4
Ring 4
