AS 40 - Modul
Installation of the module
Safty notes ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢
!
Before unlocking the cover, remove the 230 V mains plug
from the telephone system.
Opening the housing ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢

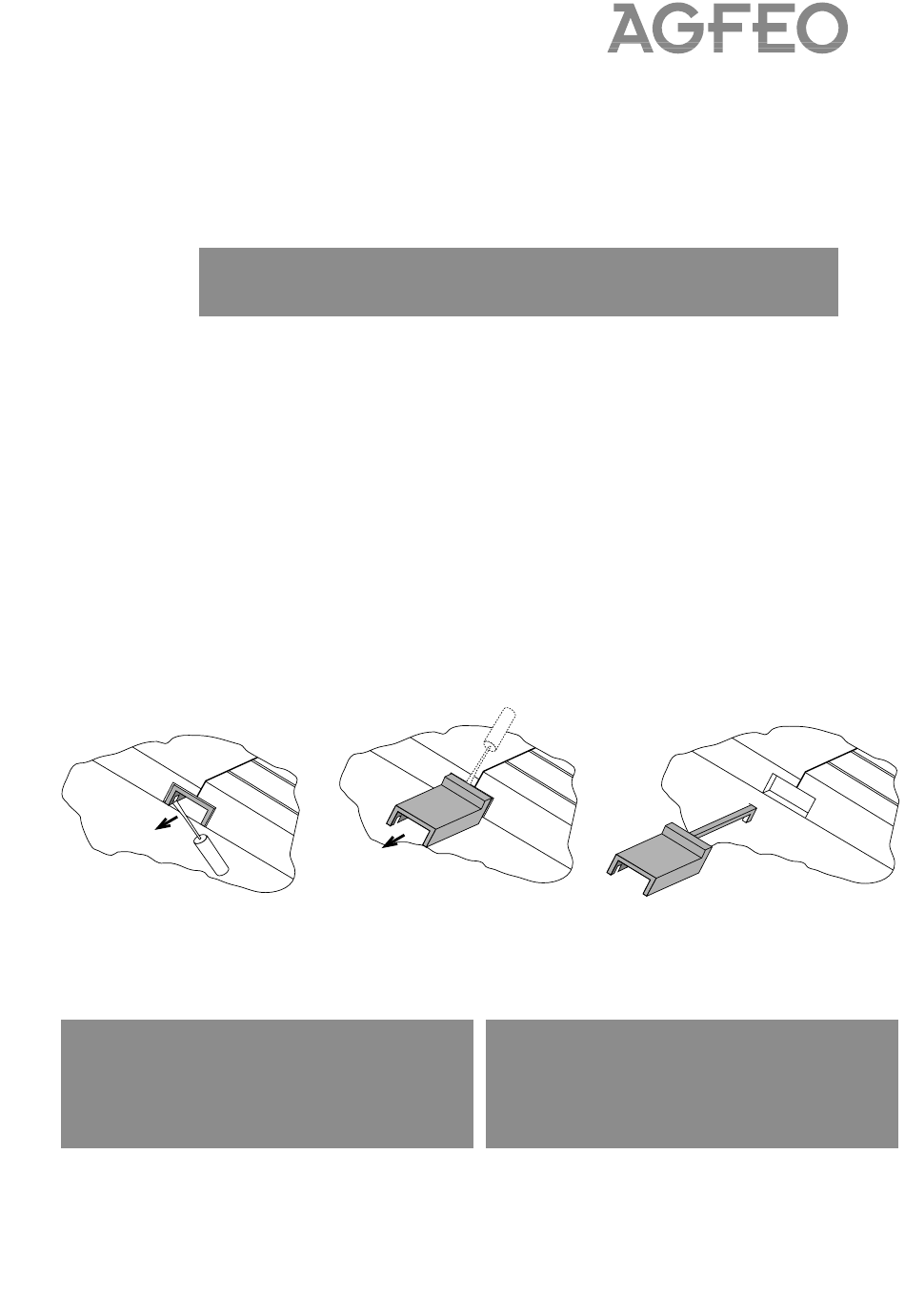

Unlocking the cover
- Pull out the black bolt slightly to the side
using a narrow srewdriver blade (about 2
mm wide) until you can grip the bolt
(Fig.1 and 2).
- Hold the bolt and pull it right out turning
it slightly (Fig. 2 and 3).
You can use the bolt as a module extrac-
tor when exchanging a module.
Unlocking the cover
Removing the module from the packaging - Safety measure ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢
Before removing the module from the
packaging and before inserting the
module in the AS 40, touch the metal
shield of the PC/printer socket on the
bottom of the AS 40 briefly with your
Fig. 1
Removing the cover
- Grip the underside behind the finned
cover that covers the telephone system's
connection panel.
- Pull the edge of the cover down slightly to
unlatch it. Detach the cover towards you.
Fig. 2
finger. This discharges any possible
electrostatic charge and protects
electrostatically sensitive components of
the AS 40 and the module.
Telekommunikation
Bolt
Fig. 3
1
