AGFEO S0 Module 110 Installation Instructions

S0 Module 110
Installation Instructions
Safety Instructions ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢
Before opening the housing of the AS 140, AS 140 plus, AS
!
190, AS 190 plus, pull out the 230 V mains plug of the
telecommunications system from the socket.
The S0 module 110 may only be installed by a technician
qualified under DIN 57105/VDE.
Do not give these instructions to the end user!
S0 Module 110 ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢
The module adds an internal S0 bus to the
AS 140, AS 140 plus, AS 190 and the AS

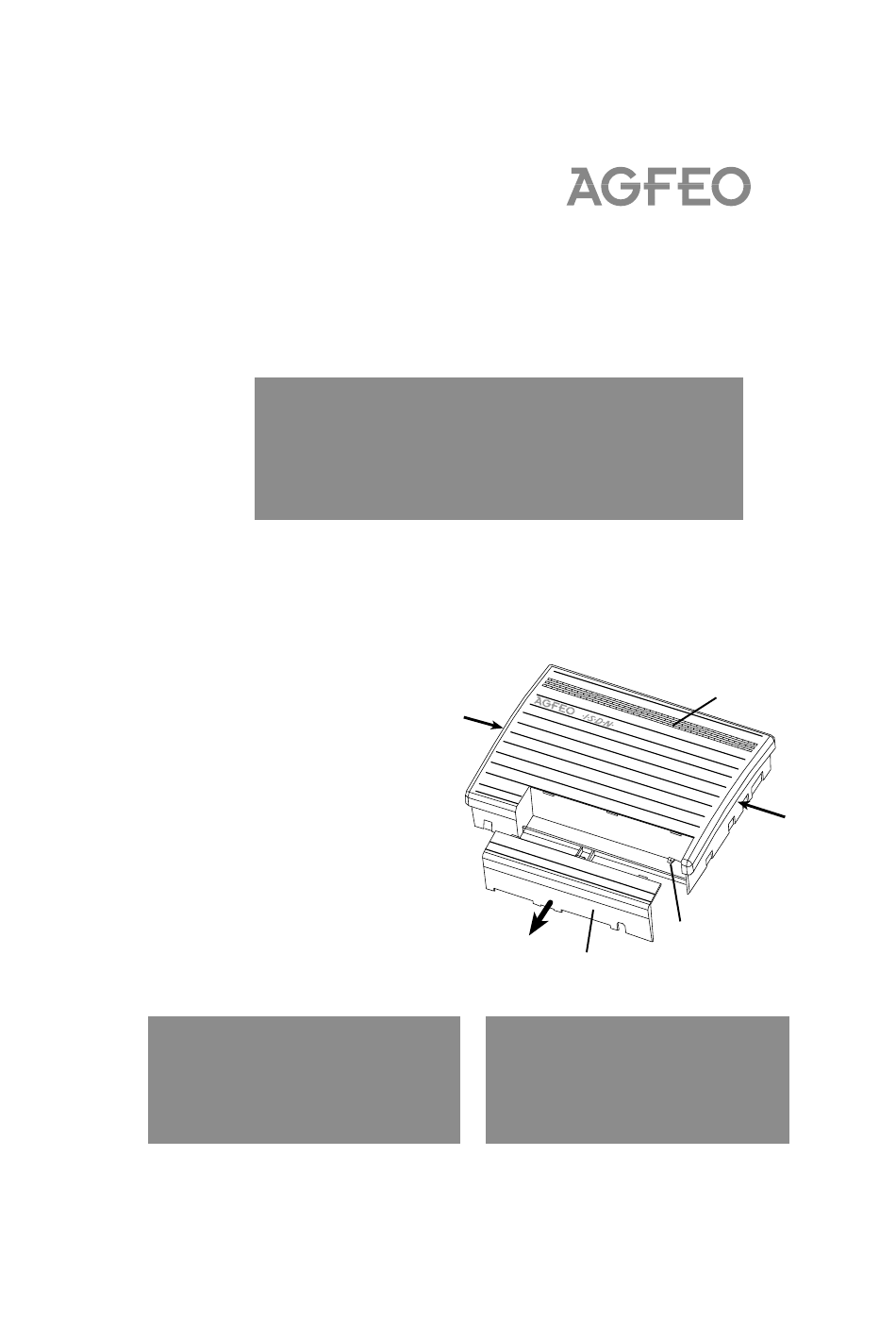

Opening the housing ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢
- Remove the cover from the housing.
Reach behind the cover of the telecom-
munications system housing on the bot-
tom.
- Pull the edge of the cover down slightly so
that it snaps out.
- Remove the cover from the housing from
the front.
- Loosen the securing screw S. You need
this screw again for reassembly.
- Press the bottom shell together lightly on
the left and right (see drawing point 'D').
The housing springs open.
- Tip the top shell up to the left and release
the snap catches.
Removing the module from the packaging - Safety measures ¢¢¢¢¢¢¢¢¢¢¢¢¢¢
Before removing the module from the
ESD safety packaging and before inserting
the module in the AS 140 (plus) or AS
190 (plus), touch the metal shield of the
PC/printer socket of the telephone system
briefly with your finger.
Telekommunikation
190 plus. The connections for this internal
S0 bus are already provided.
D
Housing cover
. You have the safety packaging of the
module in your other hand.
This discharges any static which may have
built up and protects the electrostatically
sensitive components of the AS 140
(plus), AS 190 (plus) and the module.
Upper shell
D
S
