- Page 1 Liebert® IntelliSlot™ WEBRT3N™ Card User Manual...
- Page 2 Technical Support Site If you encounter any installation or operational issues with your product, check the pertinent section of this manual to see if the issue can be resolved by following outlined procedures. Visit https://www.VertivCo.com/en-us/support/ for additional assistance.
-
Page 3: Table Of Contents
4.3.8 System Time 4.3.9 Language 4.4 Log Information 4.4.1 Event Log 4.4.2 Data Log 4.4.3 Battery Test Log 4.5 Help 4.5.1 About 5 Telnet—Remote Monitoring 5.1 Introduction 5.2 Telnet Configuration 6 Shut-down Utility Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |... - Page 4 Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |...
-
Page 5: Introduction
WEBRT3N cards on the network. Power Insight can be set up to close open files and perform a graceful system shut-down when a UPS with a IS-WEBRT3N card experiences an input power failure or low battery. Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |... - Page 6 This page intentionally left blank. Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |...
-
Page 7: What's Included

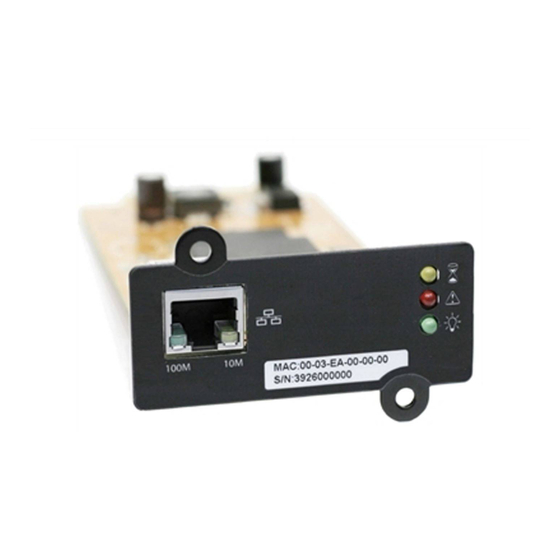

Liebert Web Card CD, including: • DeskPro-Net Utility: Configure Liebert Web Card UPS IP address, update firmware • Liebert IS-WEBRT3N card user manual • Liebert IS-WEBRT3N card MIB Figure 2.1 Liebert IS-WEBRT3N card Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |... - Page 8 This page intentionally left blank. Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |...
-
Page 9: Installation
Insert the included DeskPro-Net Utility CD in the monitoring computer. b. Follow the prompts to install the software. After complete installation, DeskPro-Net Utility will appear in Start>Programs. Figure 3.1 IS-WEBRT3N installation Figure 3.2 Installation steps Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |... - Page 10 This page intentionally left blank. Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |...
-
Page 11: Ups Web Management By Is-Webrt3N Card
This page shows basic IS-WEBRT3N card system information, such as hardware/firmware version, serial number and up time. Network Status This page shows the network information of the IS-WEBRT3N card supports IPv6 to work with compatible network appliances. Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |... -
Page 12: Basic Information
NOTE: If you are using a Contact Closure UPS, you will only be able to use the function Turn off UPS when AC Failed. Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |... -
Page 13: Meter/Chart
NOTE: This page’s selection will differ according to the different interface of the UPS. 4.3.1 UPS Configuration This page is used to set the UPS configuration. Any incorrect settings will cause incorrect display values or disconnection between the UPS and the IS-WEBRT3N card. Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |... -
Page 14: Ups On/Off Schedule
From this page, you can configure waking a PC that is in the network. The PC can be configured to wake up after a power restore or when the battery capacity reaches the configured capacity percentage. NOTE: Ensure the PC supports this functionality and is configured as Enabled under the BIOS. Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |... -
Page 15: Network
Maximum Number of IPv6 Prefix—The maximum length for the address that divides a network into manageable segments. Multicast Address: Specifies the host extensions for IP multicasting. Primary DNS Server—primary DNS server Secondary DNS Server—secondary DNS server. NOTE: Clicking Apply will reboot the NetAgent. Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |... -
Page 16: Snmp
NOTE: Any abnormal connection failure will cause a re-dial. 4.3.4 SNMP IS-WEBRT3N card This page is to set SNMP settings so it can be used by an NMS ( Network Management System). Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |... - Page 17 Community—sets a Community name for NMS. The community name must be the same as the setting in NMS. Permission—sets options for administrators. Options are Read, Read/Write, and No Access. Description—for an administrator to make notes. Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |...
-
Page 18: E-Mail
Send Email When Event Occurs—sets the IS-WEBRT3N card to send warning e-mail when an event occurs. Email for Event Log—designates e-mail addresses to receive warning e-mails sent by the IS-WEBRT3N card when an event occurs. It is valid for up to eight e-mail addresses. Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |... -
Page 19: Sms
IP Filter—sets a particular IP address. Users can gain access to the IS-WEBRT3N card Web pages only if they come from this IP address. To enable managing the IS-WEBRT3N card from any IP address, set it as *.*.*.* Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |... -
Page 20: System Time
Auto Restart System for Every (0 is disabled)—The card restarts the system automatically at the preset hour or minute. Manual Restart System After 30 Seconds—One you click Apply, the card restarts after 30 seconds. Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |... -
Page 21: Language
Loading—shows records of the UPS Output loading as %. Capacity—shows records of the UPS battery capacity as %. Frequency—shows records of the UPS Input Frequency in Hz. Battery Volt—shows records of UPS battery string voltage. Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |... -
Page 22: Battery Test Log
FTP server and upgrade to the latest firmware. You can also configure to upgrade at a preset time. NOTE: Download the appropriate firmware version from the website and upgrade through the FTP client software. Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |... -
Page 23: Telnet-Remote Monitoring
Reset Configuration to Default—sets all values to their default values. • Save & Reboot—saves the current configuration data, including any changes made, and reboot the IS-WEBRT3N card. • Exit Without Saving—Exits; no configuration changes are made. Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |... - Page 24 This page intentionally left blank. Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |...
-
Page 25: Shut-Down Utility
6 SHUT-DOWN UTILITY Vertiv™ offers a shut-down utility, Power Insight, available from your local Vertiv™ representative and at www.VertivCo.com. Power Insight automated shut-down software prevents unexpected server shut-downs and minimizes downtime. The software provides unattended, orderly shut-down for one computer or many. Available for most popular operating systems, Power Insight is available for free download at www.VertivCo.com. - Page 26 This page intentionally left blank. Vertiv | Liebert® IS-WEBRT3N™ Card User Manual |...
