DCX.Server/DCX.Client/DCX.NC

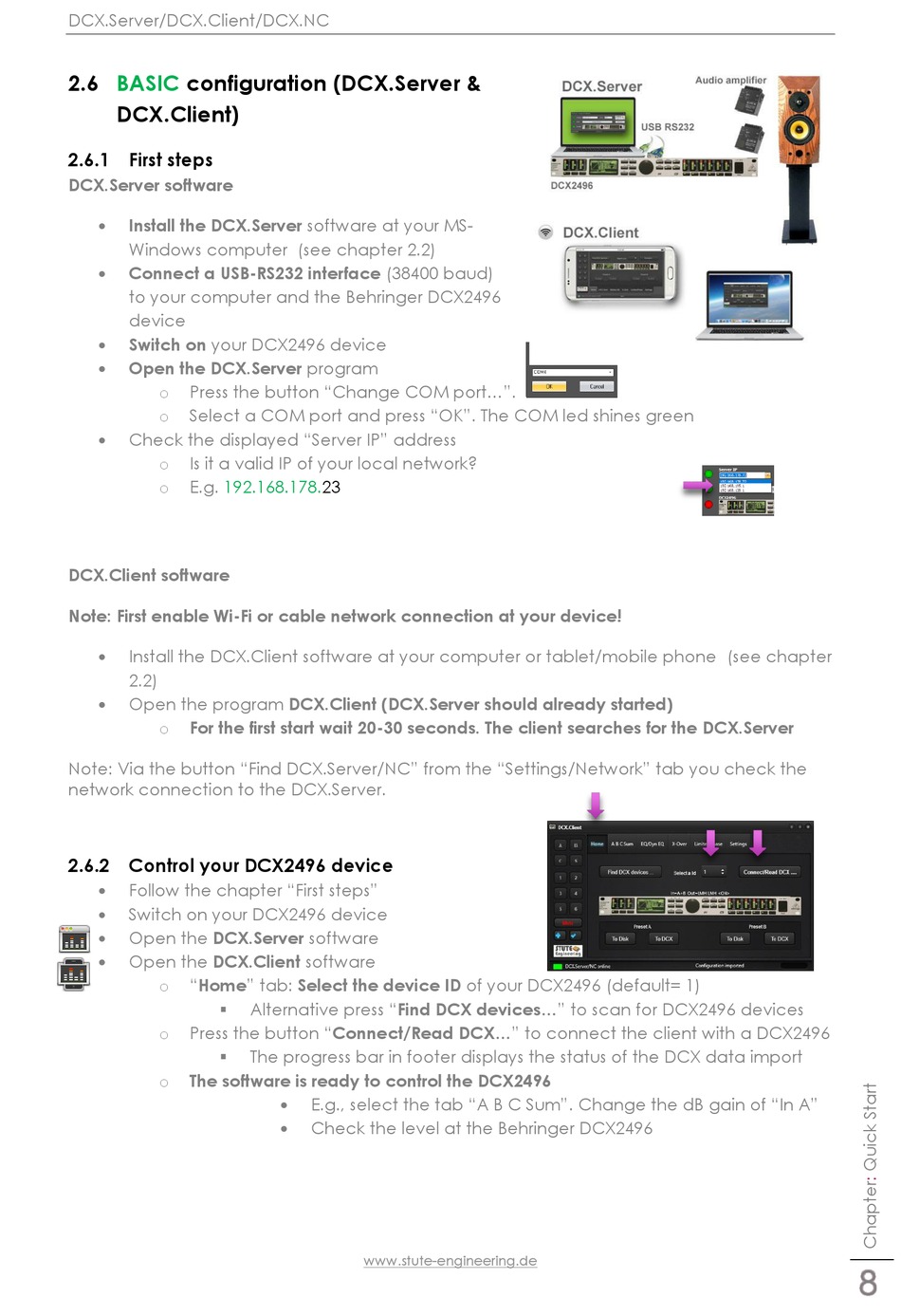

2.6 BASIC configuration (DCX.Server &
DCX.Client)

2.6.1 First steps

DCX.Server software
 Install the DCX.Server software at your MS-
Windows computer (see chapter 2.2)
 Connect a USB-RS232 interface (38400 baud)
to your computer and the Behringer DCX2496
device
 Switch on your DCX2496 device
 Open the DCX.Server program
Press the button "Change COM port...".
o
Select a COM port and press "OK". The COM led shines green
o
 Check the displayed "Server IP" address
Is it a valid IP of your local network?
o
E.g. 192.168.178.23
o
DCX.Client software
Note: First enable Wi-Fi or cable network connection at your device!
 Install the DCX.Client software at your computer or tablet/mobile phone (see chapter
2.2)
 Open the program DCX.Client (DCX.Server should already started)
For the first start wait 20-30 seconds. The client searches for the DCX.Server
o
Note: Via the button "Find DCX.Server/NC" from the "Settings/Network" tab you check the
network connection to the DCX.Server.

2.6.2 Control your DCX2496 device

 Follow the chapter "First steps"
 Switch on your DCX2496 device
 Open the DCX.Server software
 Open the DCX.Client software
"Home" tab: Select the device ID of your DCX2496 (default= 1)
o

Press the button "Connect/Read DCX..." to connect the client with a DCX2496
o

The software is ready to control the DCX2496
o
Alternative press "Find DCX devices..." to scan for DCX2496 devices
The progress bar in footer displays the status of the DCX data import
 E.g., select the tab "A B C Sum". Change the dB gain of "In A"
 Check the level at the Behringer DCX2496
