DCX.Server/DCX.Client/DCX.NC

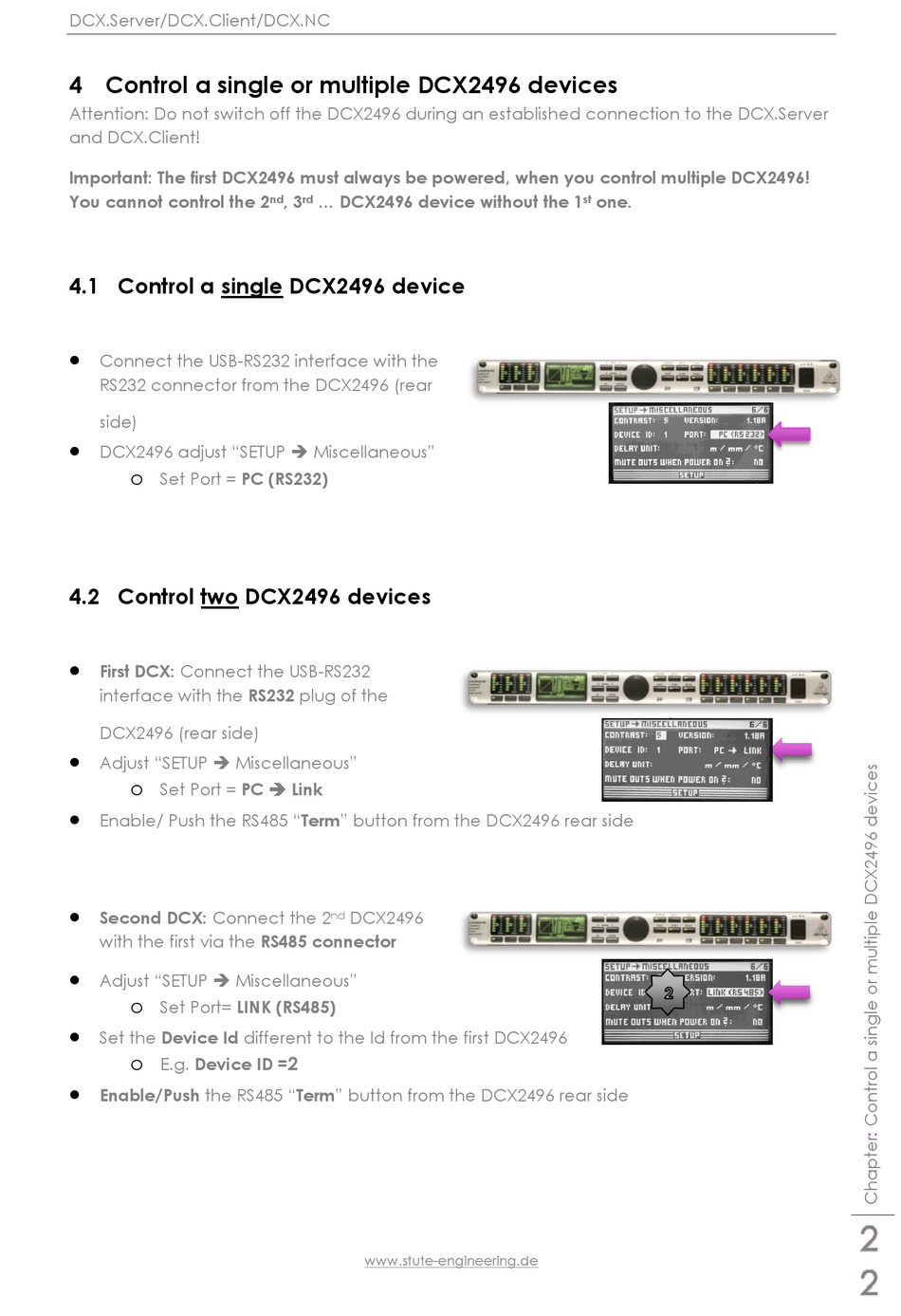

4 Control a single or multiple DCX2496 devices

Attention: Do not switch off the DCX2496 during an established connection to the DCX.Server
and DCX.Client!
Important: The first DCX2496 must always be powered, when you control multiple DCX2496!
You cannot control the 2

4.1 Control a single DCX2496 device


Connect the USB-RS232 interface with the
RS232 connector from the DCX2496 (rear
side)

DCX2496 adjust "SETUP  Miscellaneous"
o
Set Port = PC (RS232)

4.2 Control two DCX2496 devices


First DCX: Connect the USB-RS232
interface with the RS232 plug of the
DCX2496 (rear side)

Adjust "SETUP  Miscellaneous"
o
Set Port = PC  Link

Enable/ Push the RS485 "Term" button from the DCX2496 rear side

Second DCX: Connect the 2
with the first via the RS485 connector

Adjust "SETUP  Miscellaneous"
o
Set Port= LINK (RS485)

Set the Device Id different to the Id from the first DCX2496
o
E.g. Device ID =

Enable/Push the RS485 "Term" button from the DCX2496 rear side
, 3 ... DCX2496 device without the 1
nd rd
DCX2496
nd
2
www.stute-engineering.de
one.
st
2
2
