DCX.Server/DCX.Client/DCX.NC

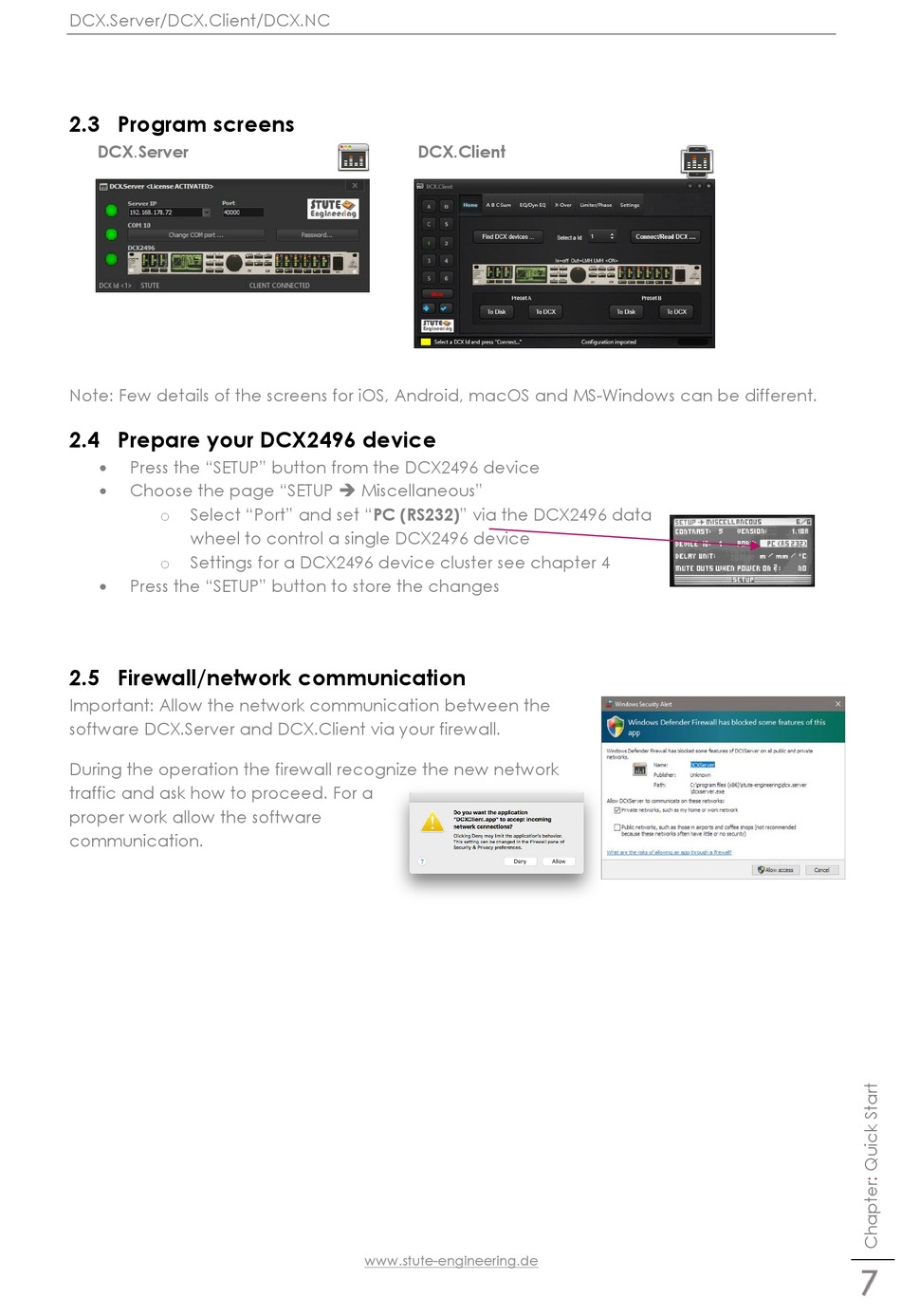

2.3 Program screens

DCX.Server
Note: Few details of the screens for iOS, Android, macOS and MS-Windows can be different.

2.4 Prepare your DCX2496 device

 Press the "SETUP" button from the DCX2496 device
 Choose the page "SETUP  Miscellaneous"
Select "Port" and set "PC (RS232)" via the DCX2496 data
o
wheel to control a single DCX2496 device
Settings for a DCX2496 device cluster see chapter 4
o
 Press the "SETUP" button to store the changes

2.5 Firewall/network communication

Important: Allow the network communication between the
software DCX.Server and DCX.Client via your firewall.
During the operation the firewall recognize the new network
traffic and ask how to proceed. For a
proper work allow the software
communication.
DCX.Client
www.stute-engineering.de
7
