Tab "A B C Sum - Stute Engineering DCX.CLIENT Manual

DCX.Server/DCX.Client/DCX.NC

3.2.2 Tab "A B C Sum"

Control the DCX2496 input level, mute and delay settings.

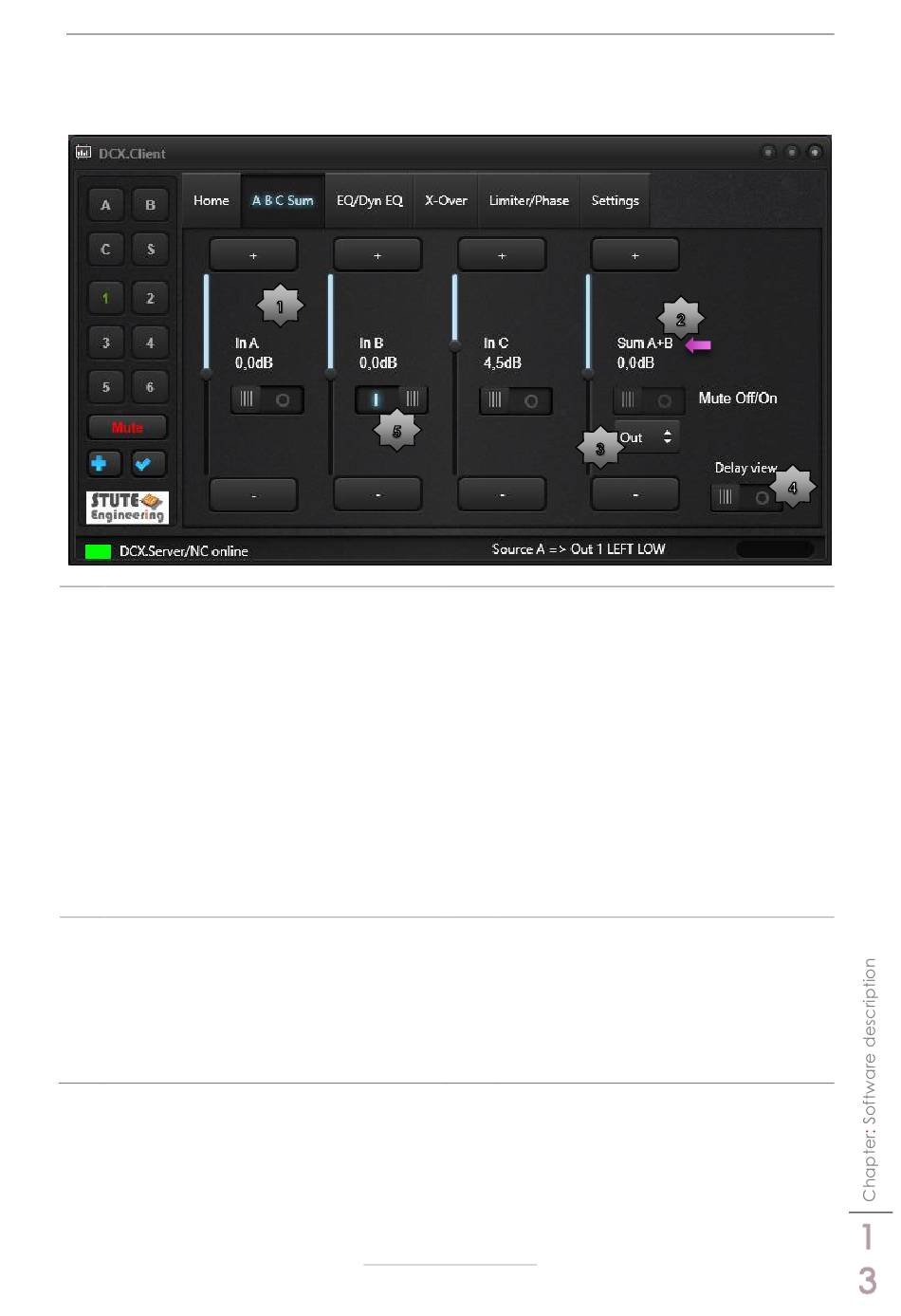

1 Gain for input A, B, C. To change the
level
a) move the slider or
b) press the "+" or "-" button or
c) click at the beginning or end of
the slider line to move the slider
Note: The gain step rate (0.1dB, 0.5dB
or 1dB) is defined in the program
"Settings"
Note: Depending at the Input
configuration (DCX2496 setup, see tab
"home" In=xxx) a change of single
channel adjusts other inputs
synchronously
4/5 Delay view
Off position (left): Control the volume
level for Input A, B, C and "Sum" The
switch mute/un-mute a input (Sum is
disabled)
2/3 Input "Sum B+C"
Control the "Sum" output and inputs
gain (see note). Change the gain
similar as described in "star 1"
If the viewed channel from "star 3" is:
Note: The "Sum" channel includes the
signal from the displayed inputs, in the
picture above "B+C" (combination
configured in the DCX2496 device)
On position (right): Control the delay
for the inputs and "Sum" signal. The
switch enable or disable the delay
function
www.stute-engineering.de
a) Out: You control the "Sum"
output gain with the slider
b) In A or B or C: You control the
Input gain of In A or B or C of
the "Sum" signal
