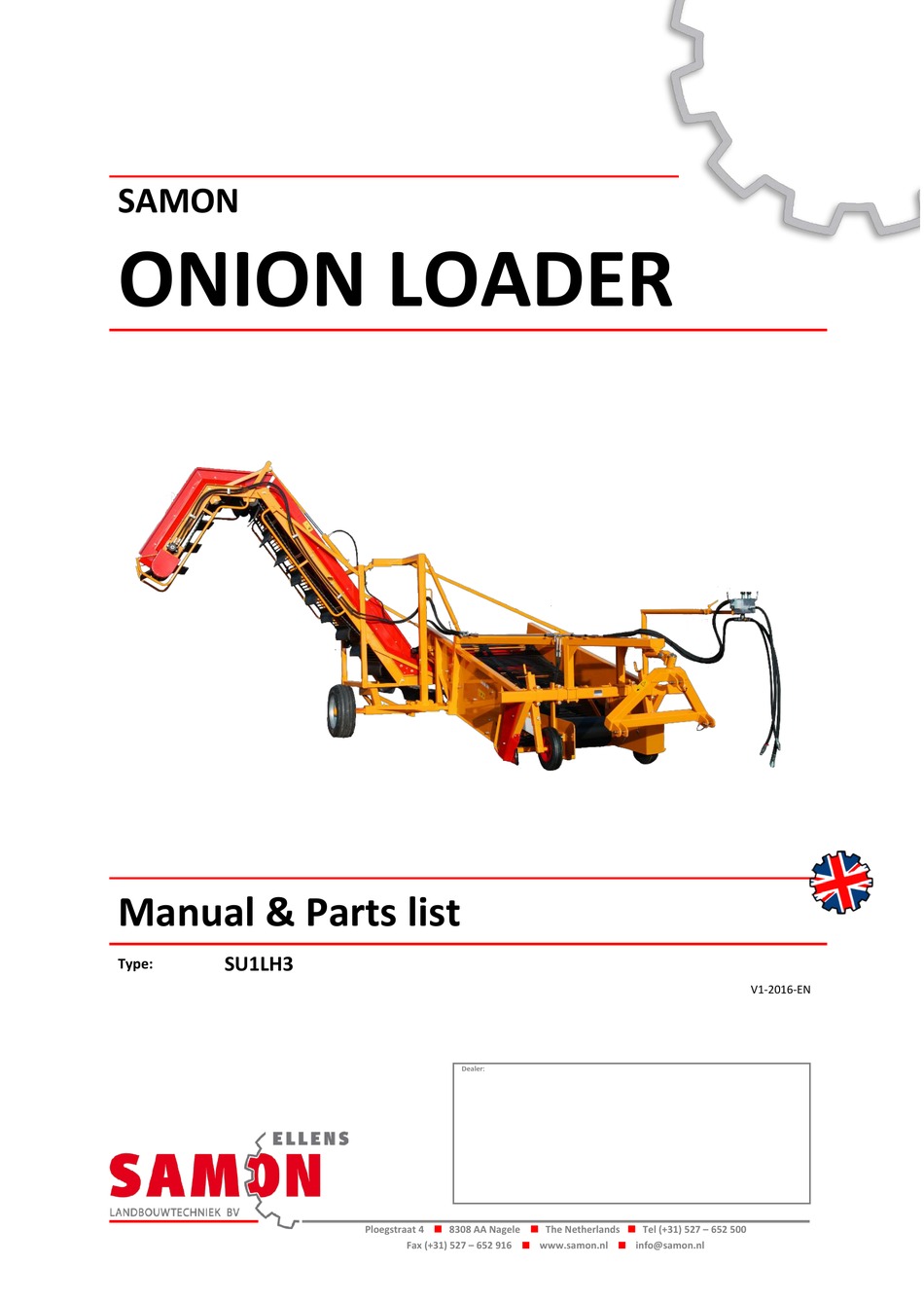

- Page 1 SAMON ONION LOADER Manual & Parts list SU1LH3 Type: V1-2016-EN Dealer: Ploegstraat 4 8308 AA Nagele The Netherlands Tel (+31) 527 – 652 500 Fax (+31) 527 – 652 916 www.samon.nl info@samon.nl...
-
Page 2: Table Of Contents
4.1 Checks needed before use ........................ H5 4.2 Checks needed during use ........................ H5 5. Operating ................................H6 5.1 Connecting the SAMON Onion loader and setting sieve/elevator belt speed ........H7 5.2 Setting wheel track ........................... H6 6. Maintenance ..............................H7 6.1 Lubricating schedule ......................... -
Page 3: Introduction
Introduction. This edition of the manual is intended for buyers of a SAMON Onion loader. It contains information for the use and maintenance of this machine. When this guide was compiled the utmost care was taken to ensure that the illustrations and technical data are correct and current for this manual. -
Page 4: Warranty And Liability
SAMON agricultural machinery comes with a warranty period of 1 season. SAMON Onion loaders are designed and intended for loading onions.* If the SAMON Onion loader is used in a manner other than intended such will be considered to be improper use. -
Page 5: Safety And Environment
Always wait until the sieve belts have come to a complete halt before approaching the machine. Keep in mind that the sieve belts will keep turning for a while after the SAMON Onion loader has been switched off. ... -
Page 6: Warning Labels And Pictograms
“Be careful with your hand/foot” sticker 19.3 x 6.4 TL6309 “Check the manual” sticker 13.3 x 6.4 TL6310 If any of these stickers should be missing or illegible you can order a replacement at your SAMON dealer. www.samon.nl - info@samon.nl V1-2016-NL... -
Page 7: Checks Needed Before Use
Check the tiller ends and the tillers for wear, particularly the bottom and inner sides. The tillers are there to protect the frame of the SAMON Onion Loader, so make sure to replace early to prevent damage to the frame or bearings. -
Page 8: Connecting The Samon Onion Loader And Setting Sieve/Elevator Belt Speed
Connecting the SAMON Onion loader and setting sieve/elevator belt speed Connect the SAMON onion loader to the tractor. Make sure that the three locking pins are locked with the safety clips and safety cords. A. On/off sieve belt B. Speed sieve belt C. -
Page 9: Maintenance
Make sure that the tractor's engine has been switched off and the key has been removed from the ignition before you carry out maintenance on the SAMON Onion Loader. Lubrication schedule The SAMON Onion Loader needs to be lubricated regularly to achieve optimum performance. Lubrication schedule for the SAMON Onion Loader Lubricating point:... -
Page 10: Tensioning Elevator Belt
Equally Tighten bolts (B) on both sides of the belt. Tighten safety nuts (A) on both sides again. Adjusting the elevator belt Loose the safety nut. Adjust until the belt starts running onto the center. Tighten the safety nut again. www.samon.nl - info@samon.nl V1-2016-NL... -
Page 11: Transport And Storage
WARNING!!! Only change to loading/transportation position when the tractor has been cut off. Placing the SAMON Onion loader into loading position: 1. Place the machine on a well levelled ground. 2. Take out the safety clip from the transport-locking pin (A). -
Page 12: Transport By Tractor
Observe the prevailing traffic regulations when you transport the SAMON Onion Loader behind a tractor on the public roads. When you are steering the tractor bear in mind that the tail of the SAMON Onion Loader swings out in bends. ... -
Page 13: Technical Data
Technical data. SAMON Onion loader “SU1LH3” 1,35 m Sieve belt width: 850mm Elevator width: Hydraulic Drive: 6,80 m* Transport length: (m) 2,90 m* Transport width: (m) 3,50 m* Transport height: (m) 1650 kg Weight: * Machine in transportation position. www.samon.nl - info@samon.nl... -
Page 14: Ordering Parts
2. State the type, model and serial number of your machine shown on the type plate. The type plate is mounted on the frame near the drawbar. 3. Measure the width of the SAMON Onion Loader's sieve and conveyor belt, as the correct type of many parts depends on the width of the sieve/conveyor belt. -
Page 15: Troubleshooting
Maximum pressure on the Use a pressure-free retour motor. hydraulic system. Virtually no product is picked up Intake too high Adjust height of intake to 1 cm and product is left behind by the under the soil machine www.samon.nl - info@samon.nl V1-2016-NL... -
Page 16: Eg Declaration Of Conformity
EG Declaration of Conformity We, Ellens Landbouwtechniek BV Ploegstraat 4, 8308 AA Nagele, The Netherlands, declare under our sole responsibility that the product: SAMON Onion Loader Type: Serial number: To which this declaration relates, is in accordance with the following standard(s):... - Page 17 Spare Parts List...
- Page 18 Parts list index Samon Onion loader SU1LH3: Index. Description. Page: Tractor linkage triangle. Rotating bar and tillers. Intake roller and plates. Rotating bar drive. Wheels. Sieve belt and drive wheels. S-11 Sieve belt parts. S-13 Sieve belt rollers. S-15 Discharge belt rollers.
- Page 19 Tractor linkage triangle. SU1LH3 Modifications for technical improvements reserved www.samon.nl - info@samon.nl V1-2016-NL...
- Page 20 Locking pin PE208 Safety pin TL880 Top link pin PE205 Safety pin TL860 Safety cord TL1086 Twisting point PE1242 Grease nipple TL2010 Safety pin TL1244 Twisting pin PE1239 Clamping ring PE1240 TL1241 Modifications for technical improvements reserved www.samon.nl - info@samon.nl V1-2016-NL...
- Page 21 Rotating bar and tillers. SU1LH3 Modifications for technical improvements reserved www.samon.nl - info@samon.nl V1-2016-NL...
- Page 22 PE6602 Bronze bush PE6601 Bronze ring PE6603 Bearing TL6605 Grease nipple TL2010 Shock adjustment PE6633 Share (L) PE6623 Share (R) PE6624 Bolts TL6684 Share end TL6622 Bolt for Share end PE6621 Modifications for technical improvements reserved www.samon.nl - info@samon.nl V1-2016-NL...
- Page 23 Intake roller and plates. SU1LH3 Modifications for technical improvements reserved www.samon.nl - info@samon.nl V1-2016-NL...
- Page 24 Spacer PE6646 Shaft PE1331 Grease nipple TL2010 Clamping part PE6649 Holder intake plates PE1335 invoerborden Support intake plates PE1336 rborden Intake plate right PE1337 Intake plate left PE1338 PVC plate PE1339 Modifications for technical improvements reserved www.samon.nl - info@samon.nl V1-2016-NL...
- Page 25 Rotating bar drive. SU1LH3 Modifications for technical improvements reserved www.samon.nl - info@samon.nl V1-2016-NL...
- Page 26 PE6609 Bolt TL6636 Bearing TL6605 Tensioner PE6644 Shaft PE6614 Bearing TL2084 Circlip TL887 Chain wheel PE2085 Circlip TL815 Chain casing rubber TL6617 Chain casing PE6639/H Grease nipple TL2088 Tensioner complete PE6689 Modifications for technical improvements reserved www.samon.nl - info@samon.nl V1-2016-NL...
- Page 27 Wheels. SU1LH3 Modifications for technical improvements reserved www.samon.nl - info@samon.nl V1-2016-NL...
- Page 28 Description: Order no. Clamp PE6649 Turning arm PE729 Wheel housing PE6655 Bearing TL730 Spindle PE728 Wheel foot PE6658 Lamellar seal TL2008 Bearings TL684 Wheel TL632 Circlip TL891 Wheel cap TL987 Modifications for technical improvements reserved S-10 www.samon.nl - info@samon.nl V1-2016-NL...
- Page 29 Sieve belt and drive wheels. SU1LH3 Modifications for technical improvements reserved S-11 www.samon.nl - info@samon.nl V1-2016-NL...
- Page 30 Sieve belt pitch 42 mm Hydro motor TL1297 TL846 Hydro motor support On demand Bearing TL6686 Shaft On demand Bearing TL2425 TL855 TL6702 Drive wheel TL6703 TL6701 Sieve belt TL5834 TL5835 Modifications for technical improvements reserved S-12 www.samon.nl - info@samon.nl V1-2016-NL...
- Page 31 Sieve belt parts. SU1LH3 Modifications for technical improvements reserved S-13 www.samon.nl - info@samon.nl V1-2016-NL...
- Page 32 Sieve belt parts. SU1LH3 Pos.: Description: Sieve belt pitch 36 mm Sieve belt pitch 42 mm Lock bar TL6762/A Lock (set) TL6713 TL6714 Latch plate TL105 Rivet TL104 Rivet bar TL155 Modifications for technical improvements reserved S-14 www.samon.nl - info@samon.nl V1-2016-NL...
- Page 33 Sieve belt rollers. SU1LH3 Modifications for technical improvements reserved S-15 www.samon.nl - info@samon.nl V1-2016-NL...
- Page 34 Sieve belt rollers. SU1LH3 Pos.: Description: Order no.: Steel roller TL642 Steel roller flanged TL647 Rubber roller flanged TL650 Rubber roller TL2075 Shaker TL6710 Spacer PE1165 Steel roller TL771 Cover TL5807 Modifications for technical improvements reserved S-16 www.samon.nl - info@samon.nl V1-2016-NL...
- Page 35 Discharge belt rollers. SU1LH3 Modifications for technical improvements reserved S-17 www.samon.nl - info@samon.nl V1-2016-NL...
- Page 36 Steel roller TL1247 Rubber roller TL2075 Steel roller flanged TL647 Rubber roller flanged TL650 Steel roller TL6839 Tensioner TL1291 Bearing and ring TL1292 Cover TL5807 Drive wheel TL6707 Hydraulic motor TL1296 Modifications for technical improvements reserved S-18 www.samon.nl - info@samon.nl V1-2016-NL...
- Page 37 Discharge belt and cylinder. Modifications for technical improvements reserved S-19 www.samon.nl - info@samon.nl V1-2016-NL...
- Page 38 Flight TL1251 Single bar TL1252 Rivet bar TL6765 Lock bar TL6766 Lock (set) TL6714 Latch plate TL105 Rivet TL124 Rivet TL104 Discharge belt cylinder TL1312 Vent TL576 Cupper ring TL433 Modifications for technical improvements reserved S-20 www.samon.nl - info@samon.nl V1-2016-NL...
