Samon SU2M Manual & Parts List

Onion lifter
Hide thumbs Also See for SU2M:
Table of Contents

Advertisement

Quick Links

SAMON
ONION LIFTER
Manual & Parts list
SU2M
Type:
Rotating harvest shaft
Uitvoering:
SU2H1
SU2H3
Dealer:
Ploegstraat 4
8308 AA Nagele
Fax (+31) 527 – 652 916
27011751 - >>>
Serienr.:
The Netherlands
Tel (+31) 527 – 652 500
www.samon.nl
info@samon.nl
V1-2018-EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SU2M and is the answer not in the manual?

Questions and answers

Related Manuals for Samon SU2M

Summary of Contents for Samon SU2M

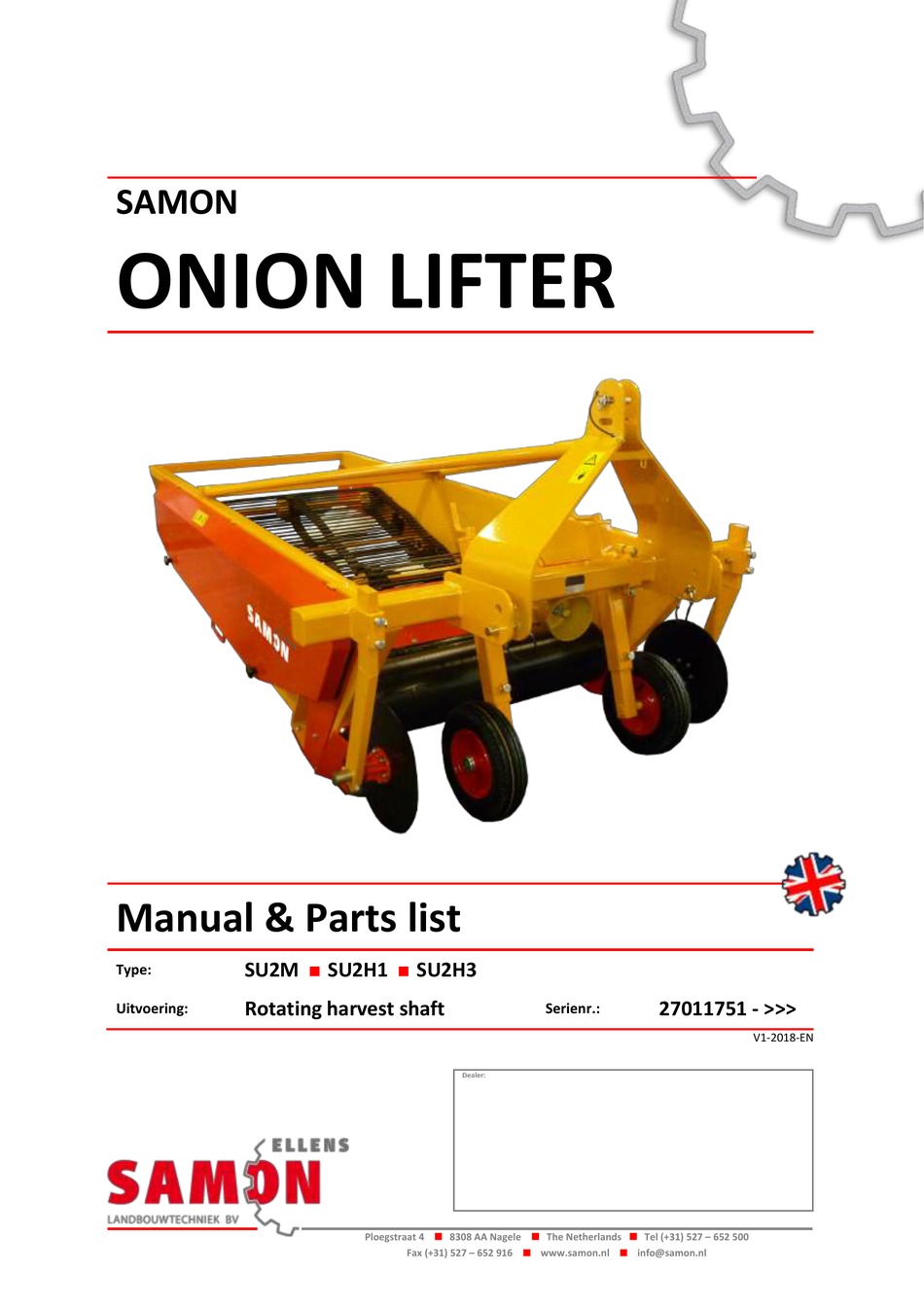

  • Page 1 SAMON ONION LIFTER Manual & Parts list SU2M SU2H1 SU2H3   Type: Rotating harvest shaft 27011751 - >>> Uitvoering: Serienr.: V1-2018-EN Dealer:    Ploegstraat 4 8308 AA Nagele The Netherlands Tel (+31) 527 – 652 500 ...

  • Page 2: Table Of Contents

    4. Checks before and during use ........................H5 4.1 Checks needed before use ........................ H5 4.2 Shortening the PTO shaft ........................H5 4.3 Connecting the SAMON Onion Lifter ....................H6 4.4 Inspection after +/- 5 meters ......................H6 4.5 Inspection after +/- 5 ha........................H6 5.

  • Page 3: Introduction

    Introduction. This edition of the manual is intended for buyers of a SAMON Onion Harvester. It contains information for the use and maintenance of this machine. When this guide was compiled the utmost care was taken to ensure that the illustrations and technical data are correct and current for this manual.

  • Page 4: Warranty And Liability

    SAMON Onion Lifters are designed and intended for harvesting onions.* If the SAMON Onion Lifter is used in a manner other than intended such will be considered to be improper use. * For harvesting any other types of deciduous species and crops, always first check with your Samon dealer.

  • Page 5: Safety And The Environment

    Always wait until the sieve belts have come to a complete halt before approaching the machine.  Keep in mind that the sieve belts will keep turning for a while after the SAMON Onion Lifter has been switched off. ...

  • Page 6: Warning Labels And Pictograms

    19.3 x 6.4 TL6309 “Check the manual” sticker 13.3 x 6.4 TL6310 Onion Lifter stickers. If any of these stickers should be missing or illegible you can order a replacement at your SAMON dealer. www.samon.nl - info@samon.nl V1-2017-EN 27011752 - >>>...

  • Page 7: Shortening The Pto Shaft

    Inspect before and after use. WARNING!!! When performing maintenance on the SAMON Onion Lifter always switch the tractor engine off and remove the key from the ignition. Checks to be performed before use.  Check the gear drive for leaks.

  • Page 8: Connecting The Samon Onion Lifter

    Check the tiller ends and the tillers for wear, particularly the bottom and inner sides. The tillers are there to protect the frame of the SAMON Onion Lifter, so make sure to replace early to prevent damage to the frame or bearings.

  • Page 9: Maintenance

    Maintenance. WARNING!!! When performing maintenance on the SAMON Onion Lifter always switch the tractor engine off and remove the key from the ignition. Lubrication schedule. Lubricate periodically to ensure that the SAMON Onion Lifter works optimally. Schedule for lubricating the Samon Onion Lifter.

  • Page 10: Setting The Collecting Trays

    Adjusting the shakers. The shakers can be adjusted on the sieve belt by turning the handles on the side of the SAMON Onion Lifter. Turn the handle to the left to increase the intensity of shaking. Setting the collecting trays.

  • Page 11: Gear Drive Maintenance

    The gearbox oil must be replaced every 2 years. 5.4.1 Topping up the gear drive oil.  Make sure the SAMON Onion Lifter is standing on a flat, level surface.  Remove the PTO shaft.  Remove the plug at the rear of the gear drive.

  • Page 12: Transport And Storage

     When driving, keep in mind that the SAMON Onion Lifter has a tail swing.  Also keep in mind that the sight of the driver is limited when the SAMON Onion Lifter is connected to a tractor. Storage. ...

  • Page 13: Technical Data

    Technical data. SAMON Onion Lifter “SU2M” 1.00 m 1.15 m 1.25 m 1.35 m 1.45 m Belt width: Harvest shaft Type: Mechanical Drive: 540 PTO PTO shaft: SAE.90EP / 2.5 l Gear drive oil: Measurements: 375x165x150 375x180x150 375x200x150 375x200x150 375x200x150...

  • Page 14: Ordering Parts

    2. Include the type, model and serial number of your machine as stated on the type shield. The type shield is located on the frame of the PTO shaft. 3. Measure the width of the SAMON Onion Lifter as many parts are dependent on the width of the sieve belt.

  • Page 15: Troubleshooting

    The lifter does not want to go into The tiller ends are worn. Replace the tiller ends. the ground. Harvest shaft worn. Replace the harvest shaft. The top rod is too long. Adjust the top rod. www.samon.nl - info@samon.nl V1-2017-EN 27011752 - >>>...

  • Page 16: Ec Declaration Of Conformity

    NEN-EN 292-1, NEN-EN 292-2, prNEN 1050 In accordance with the Machinery Directive 89/392/EEC + amendments Nagele, January 2018 www.samon.nl - info@samon.nl V1-2017-EN 27011752 - >>>...
  • Page 17 Spare Parts List...
  • Page 18 Parts list index Samon Onion Lifter SU2M, SU2H1, SU2H3: Index. Description. Page: Rotating bar, shares, intake roller, and automatic grease system. Rotating bar drive. PTO. Sieve belt drive. Sieve belt drive wheels, sieve belt drive shafts, and driven roll. S-15 Sieve belts.
  • Page 19 Rotating bar, shares, intake roller, and automatic grease system SU2M, SU2H1, SU2H3 Modifications for technical improvements reserved www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 20 Rotating bar, shares, intake roller, and automatic grease system SU2M, SU2H1, SU2H3 Sieve belt width: (m) Pos.: Description: 1,00 1,15 1,25 1,35 1,45 1,50 1,65 1,75 2,00 Rotating bar PE6600/100 PE6600/115 PE6600/125 PE6600/A PE6600/145 PE6600/B PE6600/C PE6600/D PE6600/E Twisted rotating bar...
  • Page 21 Rotating bar drive. SU2M, SU2H1 Modifications for technical improvements reserved www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 22 PE6644 Shaft PE6614 Bearings TL2084 Circlip TL887 Chain wheel PE2085 Circlip TL815 Grease nipple TL2010 Complete tensioner PE6689 Coupling TL6680 Grease line TL6681 Cutting ring TL6682 Clamp TL6683 Modifications for technical improvements reserved www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 23 Rotating bar drive. SU2H3 Modifications for technical improvements reserved www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 24 Bolt TL6636 Complete tensioner PE6689 Tensioner PE6644 Shaft PE6614 Bearing TL2084 Circlip TL887 Chain wheel PE2085 Circlip TL815 Coupling TL6680 Grease line TL6681 Cutting ring TL6682 Clamp TL6683 Modifications for technical improvements reserved www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 25 PTO. SU2M, SU2H1 Modifications for technical improvements reserved www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 26 PTO. SU2M, SU2H1 Sieve belt width: (m) Pos.: Description.: 1,00 1,15 1,25 1,35 1,45 1,50 1,65 1,75 2,00 Complete PTO TL707 TL707 TL707 TL707 TL707 TL707 TL708 TL708 TL708 Slip clutch TL791 TL791 TL791 TL791 TL791 TL791 TL792 TL792 TL792 Cross &...
  • Page 27 Sieve belt drive. SU2M Modifications for technical improvements reserved www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 28 PE6616 PE6616/40 Chain 1 sieve belt TL6645 Chain wheel PE6612 Tensioner TL260 Shaft PE6613 Bearing TL2084 Chain wheel PE2085 Circlip TL815 Pipe nipple TL734 Complete tensioner PE6692 Modifications for technical improvements reserved S-10 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 29 Sieve belt drive. SU2H1 Modifications for technical improvements reserved S-11 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 30 Complete tensioner PE6692 Tensioner TL260 Shaft PE6613 Bearing TL2084 Circlip TL815 PE2085 Chain wheel Curve 1/8” TL2089 Pipe nipple 1/8” TL734 Sleeve 1/8” TL2087 Grease nipple 1/8” TL2010 Modifications for technical improvements reserved S-12 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 31 Sieve belt drive. SU2H3 Modifications for technical improvements reserved S-13 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 32 Pos.: Description.: 1,00 1,15 1,25 1,35 1,45 1,50 1,65 1,75 2,00 TL3105 Hydraulic motor Vibration damper TL7554 Motor mount PE3116 Bearing TL5313 2/2 valve, web stop TL7653 Modifications for technical improvements reserved S-14 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 33 Sieve belt drive wheels and sieve belt shafts. SU2M Modifications for technical improvements reserved S-15 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 34 1,45 1,50 1,65 1,75 2,00 Standard: PE849/100 PE849/115 PE849/125 PE849/A PE849/145 PE849/B PE850 PE1103 PE849/E Web with overhang: PE849/100/O PE849/115/O PE849/125/O PE849/A/O PE849/145/O PE849/B/O PE850/O PE1103/O PE849/E/O Modifications for technical improvements reserved S-16 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 35 Sieve belt drive wheels, sieve belt shafts, and driven roll. SU2H1 Modifications for technical improvements reserved S-17 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 36 1,45 1,50 1,65 1,75 2,00 Standard: PE849/100/H PE849/115/H PE849/125/H PE849/A/H PE849/145/H PE849/B/H PE850/H PE1103/H PE849/E/H PE849/115/H/ Web with overhang: PE849/100/H/O PE849/125/H/O PE849/A/H/O PE849/145/H/O PE849/B/H/O PE850/H/O PE1103/H/O PE849/E/H/O Modifications for technical improvements reserved S-18 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 37 Sieve belt drive wheels, sieve belt shafts, and driven roll. SU2H3 Modifications for technical improvements reserved S-19 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 38 1,45 1,50 1,65 1,75 2,00 Standard: PE849/100/H PE849/115/H PE849/125/H PE849/A/H PE849/145/H PE849/B/H PE850/H PE1103/H PE849/E/H Web with overhang: PE849/100/H/O PE849/115/H/O PE849/125/H/O PE849/A/H/O PE849/145/H/O PE849/B/H/O PE850/H/O PE1103/H/O PE849/E/H/O Modifications for technical improvements reserved S-20 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 39 Sieve belts. SU2M,SU2H1,SU2H3 Modifications for technical improvements reserved S-21 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 40 TL1079/O Sieve belt pitch 42 mm: TL1080/O TL1080/145/O TL1085/O TL1081/O TL1157/O Sieve belt pitch 45 mm: TL1082/O TL6788/O TL1083/O Sieve belt pitch 50 mm: = on demand Modifications for technical improvements reserved S-22 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 41 Sieve belt parts. SU2M,SU2H1,SU2H3 Modifications for technical improvements reserved S-23 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 42 1,65 1,75 2,00 Sieve belt pitch 36 mm: TL6713 Sieve belt pitch 42 mm: TL6714 Sieve belt pitch 45 mm: TL6715 Sieve belt pitch 50 mm: TL6716 Modifications for technical improvements reserved S-24 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 43 Rollers and scrapers (standard 2 web). SU2M/SU2H1/SU2H3 Modifications for technical improvements reserved S-25 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 44 *From sieve belt with 1.65 mtr. also a steel roller at the middle of the second web (+ scraper). ** Only with sieve belts with a pitch of 36/45/50 mm. *** Only with driven roll. Modifications for technical improvements reserved S-26 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 45 Rollers and scrapers (2 web with overhang). SU2M,SU2H1,SU2H3 Modifications for technical improvements reserved S-27 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 46 *From sieve belt with 1.65 mtr. also a steel roller at the middle of the second web (+ scraper). ** Only with sieve belts with a pitch of 36/45/50 mm. *** Only with driven roll. Modifications for technical improvements reserved S-28 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 47 Roller parts. SU2M,SU2H1,SU2H3 Modifications for technical improvements reserved S-29 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 48 1,35 1,45 1,50 1,65 1,75 2,00 Shaft busing TL1150 Shaft busing TL6730 Shaft busing TL6731 Shaft busing TL6733 Bearings TL1195 Circlip TL815 Cover TL5807 Oil seal TL5818 Modifications for technical improvements reserved S-30 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 49 Support wheel and coulter disk. SU2M,SU2H1,SU2H3 Modifications for technical improvements reserved S-31 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 50 TL897 PE3101 Shaft PE1127 Split pin TL1036 TL617 Felt ring TL885 Lamellar seal TL886 Bearing TL661 Circlip TL887 TL622 Seal TL619 Coulter disk TL6653 Complete hub PE1322 Modifications for technical improvements reserved S-32 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 51 Pressure roller. SU2M,SU2H1,SU2H3 Modifications for technical improvements reserved S-33 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 52 Inner ring PE903 Nylon busing PE981 PVC Roll TL6660/100 TL6660/115 TL6660/125 TL6660/A TL6660/145 TL6660/B TL6660/C TL6660/D TL6660/E Complete roller PE6663/100 PE6663/115 PE6663/125 PE6663/A PE6663/145 PE6663/B PE6663/C PE6663/D PE6663/E Modifications for technical improvements reserved S-34 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 53 Protective cover, locking pins and windrow chutes. SU2M,SU2H1,SU2H3 Modifications for technical improvements reserved S-35 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 54 PE6667/C PE6667/D PE6667/E Chain casing PE6675 SU2M/SU2H1 Chain casing SU2H3 PE6675/H Chain casing rubber TL6676 Grease nipple TL2088 Chain casing SU2M PE6678 Chain casing SU2H1 PE6697 Star knob TL6664 Seal ring PE6669 Top chute (L) PE6670 Top chute (R) PE6671...
  • Page 55 Adjustable windrow frame. SU2M, SU2H1,SU2H3 Modifications for technical improvements reserved S-37 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 56 Adjustable windrow frame. SU2M, SU2H1,SU2H3 Pos.: Description: 1,00 1,15 1,25 1,35 1,45 1,50 1,65 1,75 2,00 Windrow frame (L) PE1327 Windrow frame (R) PE1328 Adjustment bar PE1329 PE1329 PE1329 PE1329 PE1329 PE1350 PE1350 PE1350 PE1350 Plate left PE1332 Plate right...
  • Page 57 Gearbox TL801. SU2M,SU2H1,SU2H3 Modifications for technical improvements reserved S-39 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 58 Seal TL1173 Bolt 9331225 Circlip TL2044 Drive shaft TL1174 Bearing flange TL1175 Spacer ring TL1176 Gear wheel TL1177 Bearings TL1184 TL1178 Gear wheel TL1179 Plug TL1180 TL1181 Modifications for technical improvements reserved S-40 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 59 Intake paddle. SU2M,SU2H1,SU2H3 Modifications for technical improvements reserved S-41 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 60 TL1129/A TL1129/145 TL1129/B TL1130 TL1131 TL1129/E Rubber PE5868/100 PE5868/115 PE5868/125 PE5868/A PE5868/145 PE5868/B PE5869 PE5870 PE5868/E Terminal strip PE1121/100 PE1121/115 PE1121/125 PE1121/A PE1121/145 PE1121/B PE1122 PE1123 PE1121/E Modifications for technical improvements reserved S-42 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 61 Automatic depth control (without discs). SU2M,SU2H1,SU2H3 Modifications for technical improvements reserved S-43 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 62 PE1355 Wheel foot (R) PE1356 Wheel foot (L) PE1357 Wheel TL1358 Support bracket PE1359 Holder PE3103 Complete hub PE1322 See page S31/S32 Coulter disc Ø580 6-holes TL1360 Modifications for technical improvements reserved S-44 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 63 Automatic depth control (with discs). SU2M,SU2H1,SU2H3 Modifications for technical improvements reserved S-45 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 64 TL8003 Wheel Spring PE6907 Ring PE6906 Thread shaft PE1351 Mount PE6904 Ring PE6901 Disc support PE1352 Disc unit See page S47/S48 Share (L) PE6623/S Share (R) PE6624/S Modifications for technical improvements reserved S-46 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 65 Hydraulic driven discs. SU2M,SU2H1,SU2H3 Modifications for technical improvements reserved S-47 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 66 Scraper Ø350mm PE5321 Scraper Ø410mm PE5322 Table D-10: Disc 1,00 1,15 1,25 1,35 1,45 1,50 1,65 1,75 2,00 Disc Ø300mm TL5312 Disc Ø350mm TL5308 Disc Ø410mm TL5304 Modifications for technical improvements reserved S-48 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 67 Automatic depth control system. SU2M,SU2H1,SU2H3 Modifications for technical improvements reserved S-49 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 68 Probe bracket (R) PE6516 Probe bracket (L) PE6515 Probe PE6509 Arm reaction plate PE6514 Reaction plate (R) PE6513 Reaction plate (L) PE6512 Sensor TL6502 Veer TL6517 Bolt PE6518 Modifications for technical improvements reserved S-50 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 69 Valve block for automatic depth control. SU2M,SU2H1,SU2H3 Modifications for technical improvements reserved S-51 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 70 TL7645 Control valve NG6 TL1340 Coil 12V TL7532 Set bolts M5x85 NG6 TL1341 2/2 Valve TL3376 Flow control valve TL8090 Pressure relief valve TL1342 Seal kit PE6531 Modifications for technical improvements reserved S-52 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 71 Tailgate storage bunker. SU2M,SU2H1,SU2H3 Modifications for technical improvements reserved S-53 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
  • Page 72 1,15 1,25 1,35 1,45 1,50 1,65 1,75 2,00 Bunker On demand Plate On demand Rubber On demand Cylinder mount On demand Cylinder On demand PE2417 On demand Modifications for technical improvements reserved S-54 www.samon.nl - info@samon.nl V1-2018-EN 27011752 - >>>...
