Maeda MC-305C-2 Quick Operation Manual

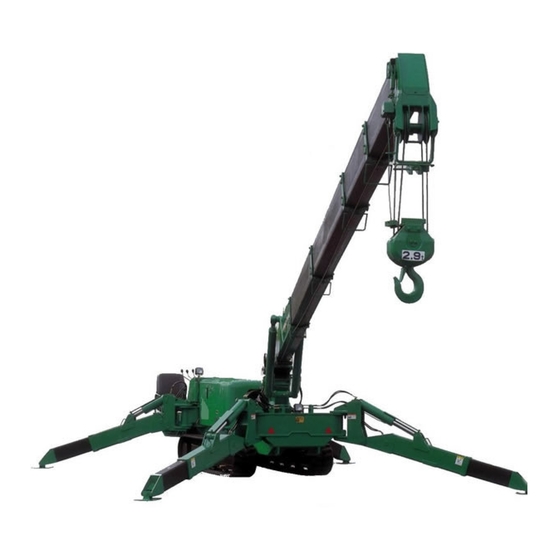

Mini-crawler crane
Hide thumbs Also See for MC-305C-2:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
QUICK OPERATION GUIDE
MINI-CRAWLER CRANE
Serial No. D0001 and up
• This operation guide explains basic operation of the machine. Before starting work, always
conduct checks written in "2.1 Checking Before Operation" in the separate "Operation
Manual".
For safety cautions and detailed operation of the machine not explained in this book, please
read and understand the separate "Operation Manual" before operating this machine.
• This operation guide does not replace the operation manual. This is just a short helpdesk
information paper to assist the trained operator of the crane with the basic operation of the
crane. For complete and detailed information we refer to the operation manual of the crane.
103E-OG0907-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-305C-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maeda MC-305C-2

Summary of Contents for Maeda MC-305C-2

  • Page 1 103E-OG0907-00 QUICK OPERATION GUIDE MINI-CRAWLER CRANE Serial No. D0001 and up • This operation guide explains basic operation of the machine. Before starting work, always conduct checks written in “2.1 Checking Before Operation” in the separate “Operation Manual”. For safety cautions and detailed operation of the machine not explained in this book, please read and understand the separate “Operation Manual”...

  • Page 2: Table Of Contents

    CONTENTS ITEM Page 1. TRAVELLING AND CRANE OPERATION UNITS 2. INSTRUMENT PANEL SECTIONS 3. STARTING AND STOPPING THE ENGINE 4. TRAVELLING OPERATION 5. OUTRIGGER OPERATION 6. CRANE OPERATION 7. MOMENT LIMITER (OVERLOAD DETECTOR) 8. REMOTE CONTROL 8.1 PROCEDURE IN THE OPERATION MODE 8.2 OPERATION IN OUTRIGGER MODE 8.3 OPERATION IN CRANE MODE 8.4 AUTOMATIC HOOK STOW FUNCTION...

  • Page 3: Travelling And Crane Operation Units

    1. TRAVELLING AND CRANE OPERATION UNITS (1) Slewing lever (6) Acceleration pedal (11) Moment limiter display panel (2) Boom telescoping lever (7) Level (12) Power supply box (3) Winch lever (8) Travelling lock lever (13) Power unit cover (4) Boom derricking lever (9) Right travelling lever (14) Instrument panel (5) Outrigger un-set warning lamp...

  • Page 4: Starting And Stopping The Engine

    3. STARTING AND STOPPING THE ENGINE [1] STARTING THE ENGINE 1. Insert the key and turn it left (preheating) until the “preheat monitor” goes out. 2. Step on the acceleration pedal to half of it’s full stroke (medium speed). 3. Turn the key to the right to start the crane. [2] STOPPING THE ENGINE 1.

  • Page 5: Outrigger Operation

    5. OUTRIGGER OPERATION OUTRIGGER COMPONENTS (1) Position pin (5) Outer box (2) Rotary (6) Inner box (3) Outrigger setting cylinder (7) Outrigger adapter (Foot) (4) Outrigger extension cylinder OUTRIGGER OPERATION PANEL (1) Outrigger (1) setting switch (2) Outrigger (2) setting switch (3) Outrigger (3) setting switch (4) Outrigger (4) setting switch (5) Work selector switch (TRAVEL, OUTRIGGER, CRANE)
  • Page 6 [1] OUTRIGGER SET UP OPERATION It is forbidden to work with the crane without the outriggers. (1) TASKS TO BE PERFORMED UPON ENGINE STOP 1. Set the lock lever in “LOCK” position. 2. Operate the work selector switch to the “OUTRIGGER” position. 3.

  • Page 7: Crane Operation

    6. CRANE OPERATION [1] OPERATIONS BEFORE CRANE OPERATIONS 1. Set the lock lever in “LOCK” position. 2. Operate the work selector switch to the “CRANE” position 3. Operate the winch lever to the DOWN side to loosen the hook block from the stowing position. [2] CRANE OPERATIONS There are 4 possible crane operations : (1): Slewing (forward: counterclockwise, backward: clockwise)

  • Page 8: Moment Limiter (Overload Detector)

    7. MOMENT LIMITER (OVERLOAD DETECTOR) MOMENT LIMITER FUNCTIONS [1] PROHIBITED ACTIONS AFTER AUTO STOP The following crane operations are prohibited after the crane has stopped automatically due to overloading. These operations may cause overturning of the machine or breakage of the boom and are very dangerous.

  • Page 9: Remote Control

    8. REMOTE CONTROL TRANSMITTER (1) LCD Screen (8) Slewing/No.1 Outrigger Operation Lever (2) Start/Reset Button (9) Boom Telescoping/No.2 Outrigger Operation Lever (3) Stop/EMO Button (10) Hook Raising and Lowering/No.3 Outrigger Operation Lever (4) Speed/Mode Button (11) Boom derricking/No.4 Outrigger Operation Lever (5) Hook Stow/Setting Button (12) Accelerator Lever (6) Horn Button...

  • Page 10: Operation In Outrigger Mode

    4. Use the Hook raising and lowering Lever to shift the cursor ( ), and push the Setting button when the cursor points to the “OUTRIGGER”. 5. The operation mode is already switched to the “OUTRIGGER MODE”, thus the “Outrigger mark” is exhibited. Soon after, it enters into “Ground setting mode”, then the mark turns to “Ground setting ( )“.

  • Page 11: Operation In Crane Mode

    8.3 OPERATION IN CRANE MODE Four Crane operation switches are provided. Each controls the following operation, respectively. (See the figure on the right.) (1): Slewing (upper: counterclockwise, lower: cloackwise) (2): Boom telescoping (upper: extend, lower: retract) (3): Hook rasing and lowering (upper: raising, lower: lowering) (4): Boom derricking (upper: raising, lower: lowering) 8.4 AUTOMATIC HOOK STOW FUNCTION NOTES...
  • Page 12 MAEDA MINI-CRAWLER CRANE MC-305-2C QUICK OPERATION GUIDE Document No: 103E-OG0907-00 First edition: July 31, 2009 Issued by Maeda Seisakusyo Co., Ltd. 1095 Onbegawa, Shinonoi Nagano, Nagano 388-8522, Japan No part of this manual can be reproduced in any from without permission...
