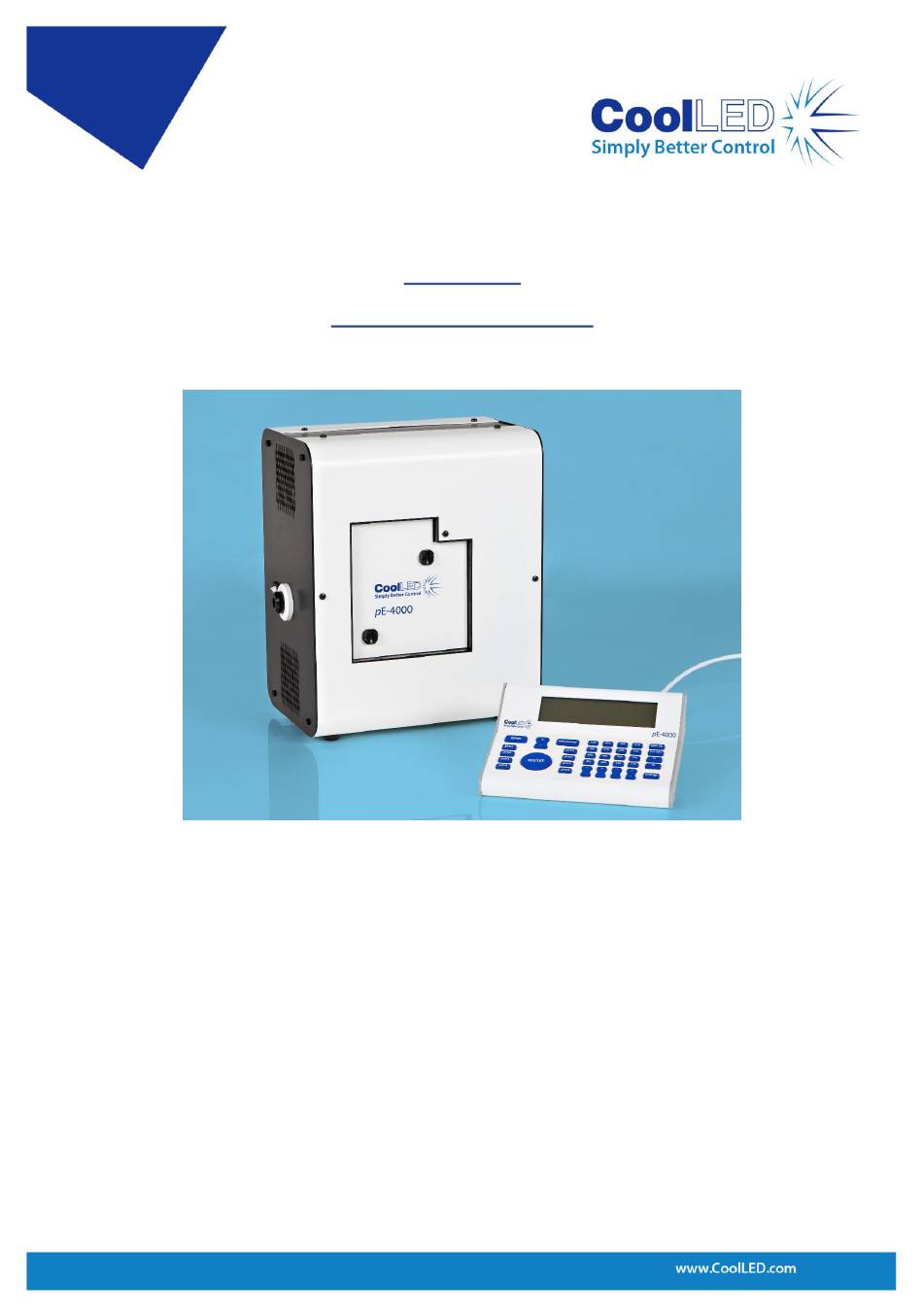

pE-4000
Quick Start Guide
This guide should provide some basic information on the setup and operation
of the CoolLED pE-4000 Illumination System.
Before operating this product please read and observe the advice given in the
safety section of the full User Manual.
For more detailed information on the full range of options and functions
please see the full User Manual.
DOC-019 Iss 1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the pE-4000 and is the answer not in the manual?

Questions and answers

Summary of Contents for CoolLED pE-4000

  • Page 1 Quick Start Guide This guide should provide some basic information on the setup and operation of the CoolLED pE-4000 Illumination System. Before operating this product please read and observe the advice given in the safety section of the full User Manual.
  • Page 2 Light Source power supply A typical pE-4000 order will include the parts shown. A mains power cable for the specified region of use shall also be included (not pictured). Your order may also include a light guide/fibre, a pE-Expansion Box or a pE-Universal Collimator. For information on these additional components please see the full pE-4000 User Manual or the pE- Universal Collimator User Manual.
  • Page 3 3. Connecting the Control Pod and Power Supply Connect the pE-4000 Control Pod cable to the Light Source. Ensure that the connector is correctly oriented. Insert the power supply connector into the Light Source. Insert the mains lead connector into the power supply.
  • Page 4 5. Fitting to the Microscope Attach the light guide to the microscope using appropriate collimating optics. If using the CoolLED pE-Universal Collimator please see the pE-Universal Collimator User Manual for full details of attaching to the microscope and optimizing the light output.
