Festo DFPI-***-ND2P-C1V-***-A Operating Instructions

Linear drive
DFPI-...-ND2P-C1V-...-A
(en) Operating instructions
Original: de
Linear drive DFPI-...-ND2P-C1V-...-A

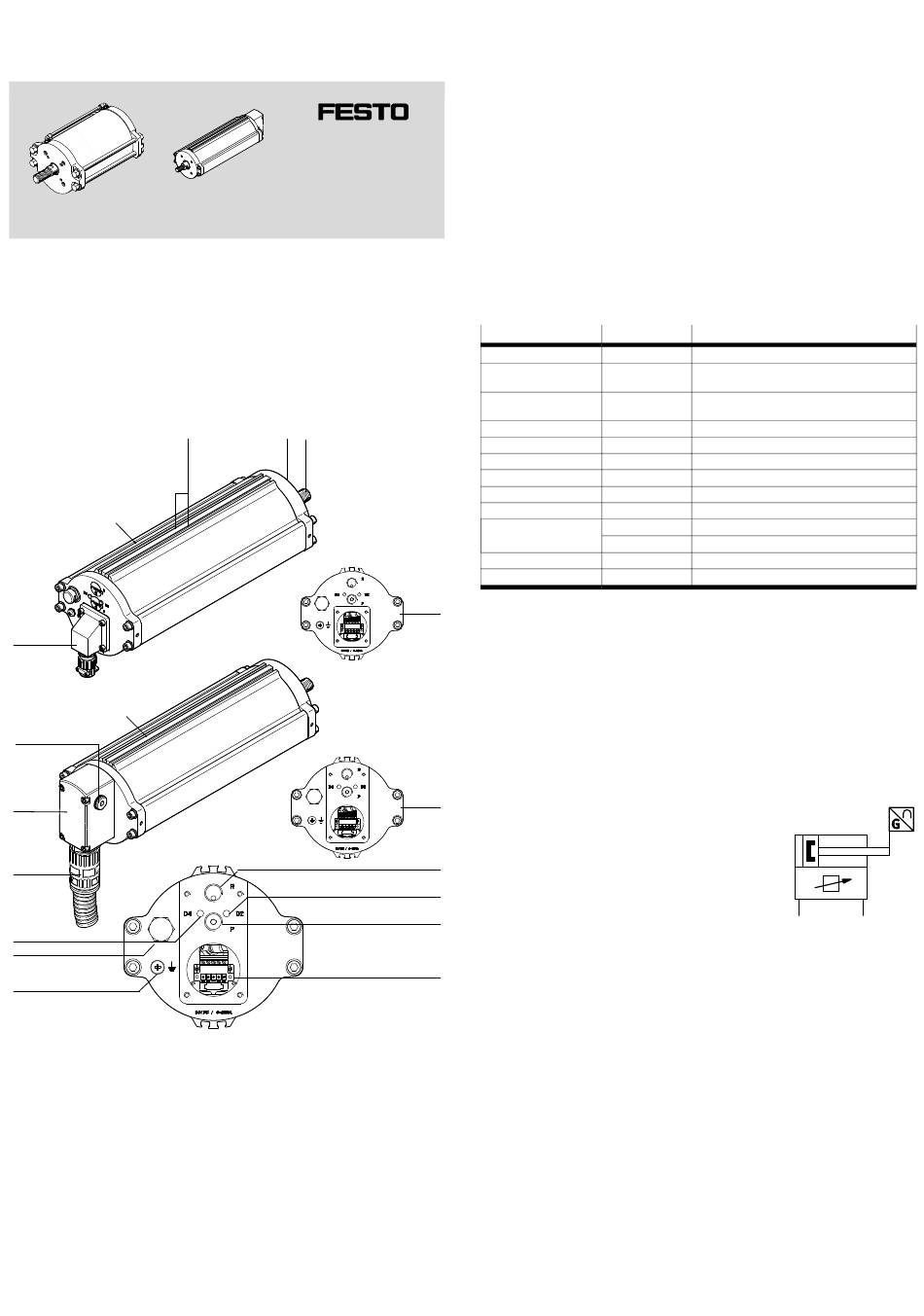

1 Operating elements and connections using as an example the DFPI-100-...
1
DFPI-...-ND2P-C1V-A
aE
DFPI-...-ND2P-C1V-P-A
aD
aC
aB
aA
aJ
9
1
Slot for proximity sensor
2
Mounting thread (reverse side)
3
Piston rod with mounting thread
for coupling and spanner flat for
counter holding
4
Representation without flange
receptacle
5
Pneumatic interface – channel R
(exhaust)
6
Flow control screw D2
7
Pneumatic interface – channel P
(compressed air supply)
8
Electrical connection behind the
flange receptacle
Fig. 1
Festo AG & Co. KG
Postfach
73726 Esslingen
Germany
+49 711 347-0
www.festo.com
8044815
1505b
[8044817]
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 3
9
Earth terminal; position dependent
on piston diameter
aJ
Pressure compensation element
aA
Flow control screw D4
aB
Optional: connecting cable with
protective conduit (accessories)
aC
Flange receptacle – here
DFPI-...-ND2P-C1V-P-A
aD
Plug screw (from factory) or filter
nipple or silencer (accessories)
aE
Flange receptacle – here
DFPI-...-ND2P-C1V-A
2 Design
The DFPI-...-ND2P-C1V-...-A is an electro-pneumatic linear drive consisting of:
– a double-acting pneumatic cylinder with
– integrated displacement encoder (potentiometer) for determining the actual
position
– integrated valve manifold with directional control valves for controlling the pis­
ton rod
– integrated positioner for position control.
If necessary, proximity sensors can be installed in the available slots in order to
provide binary interrogation of positions.
A pressure compensation element prevents the formation of condensate inside the
housing in the event of temperature fluctuations, thus protecting the internal elec­
tronics.
For DFPI-...-ND2P-C1V-A the pneumatic connections are freely accessible (pneumatic
connection G¼). The electrical connections are protected by a flange receptacle.
For DFPI-...-ND2P-C1V-P-A the electrical and pneumatic connections are protected
against external mechanical influences by a rugged flange receptacle. The flange
receptacle provides push-in connectors for the pneumatic system and a G¼ ex­
haust port for venting on site.
Features
Type
Piston diameter
English
Stroke
Function
Cushioning
Displacement encoder
Method of measurement
Regulation
Directional control valve
Connection type
Safety position
Feedback signal
4
Fig. 2 Type code (e.g. DFPI-100-200-ND2P-C1V-P-A)
The following characteristics of the linear drive are dependent on the piston
diameter, and may differ from the representation in Fig. 1:
– Position of the earth terminal (è identification on product)
– Shape of the cylinder barrel
– Shape of the flange receptacle.
In addition, for linear drives with a piston diameter ≥ 200 mm the compressed air
supplied from one side is fed via an unprotected line parallel to the cylinder barrel.
Tie rod screws are used to mount the cylinder end cap. For linear drives with a
piston diameter ≤ 200 mm the compressed air is fed internally. The cylinder end
caps are screwed to the housing.
4
3 Function
The compressed air applied at connection P
is directed by the integrated valve manifold
alternately to the two piston chambers of
5
the cylinder – depending on the setpoint po­
sition that is specified. This causes the pis­
6
ton rod connected to the piston to move
backwards and forwards.
7
The maximum possible venting of the two cylinder chambers can be set independ­
ently of each other using flow control screws D2 and D4. D2 controls the venting
flow when the piston rod advances. D4 controls the venting flow when the piston
8
rod retracts. This can be used to influence the maximum travel speed of the linear
drive in the range from 0 ... 100 %. In the factory setting, the flow control screws
are completely open. In the DFPI-...-ND2P-C1V-A they are protected against con­
tamination by rubber plugs, and in the DFPI-...-ND2P-C1V-P-A by the flange recept­
acle.
Positions are specified via an analogue setpoint signal (4 ... 20 mA). Positioning of
the piston rod/slide gate is by means of closed-loop control.
The integrated positioner performs position control of the piston rod within the
available stroke range.
The integrated displacement encoder transmits the current position to the internal
positioner as an analogue signal. The positioner cyclically compares the setpoint
and actual positions and transmits appropriate positioning signals to the integ­
rated valve manifold for positioning control.
Type codes Description
DFPI– Regulated drive for process automation
100–, 125– , 160–, Specifications in [mm]
200–, 250–, 320–
... Stroke length freely selectable in the range from
40 to 990; Specifications in [mm]
Not specified Double-acting
N No cushioning
D2 Analogue
P– Potentiometer
C1 Controller 1
V– Integrated
Not specified Unprotected pneumatic connections
P Protected pneumatic connections
Not specified Piston rod advancing
A Analogue feedback signal
Fig. 3
