Festo DFPD-700 Series Operating Instructions

Quarter-turn actuator
DFPD-700 ... 2300
Operating instructions
(Translation of the original instructions)
Quarter turn actuator DFPD-700 ... 2300
1 About this document
This document describes the use of the above-mentioned product.
1.1 Further applicable documents
– Certification documents
– Operating conditions EX
For all available product documentation è www.festo.com/pk
1.2 Target group
The document is targeted towards persons who mount and operate the product.
It is additionally targeted towards individuals who are entrusted with the planning
and application of the product in a safety-related system.
2 Safety
General safety information
– The product may only be used in its original status without unauthorized modi­
fications.
– Only use the product if it is in perfect technical condition.
– Take the ambient conditions into consideration at the location of use. Corrosive
environments reduce the service life of the product.
– Observe product labelling.
– Prior to all work, switch off compressed air supply and secure it against acci­
dental restarting.
– Exhaust actuator prior to mounting, installation and dismantling.
Operating medium
– Only use compressed air in accordance with the specifications è Technical data.
– Use only unlubricated compressed air under normal conditions. Once the
product has been used with lubricated compressed air, it must continue to be
operated with compressed air only.
– Protect the device from pressure fluctuations. Use overpressure valves and
pressure regulators.
Return to Festo
Hazardous substances can endanger the health and safety of personnel and cause
damage to the environment. To prevent hazards, the product should only be re­
turned upon explicit request by Festo.
– Consult your regional Festo contact.
– Complete the declaration of contamination and attach it to the outside of
the packaging.
– Comply with all legal requirements for handling hazardous substances and con­
veying dangerous goods.
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
8079454
2017-10
[8079456]
. . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Intended use

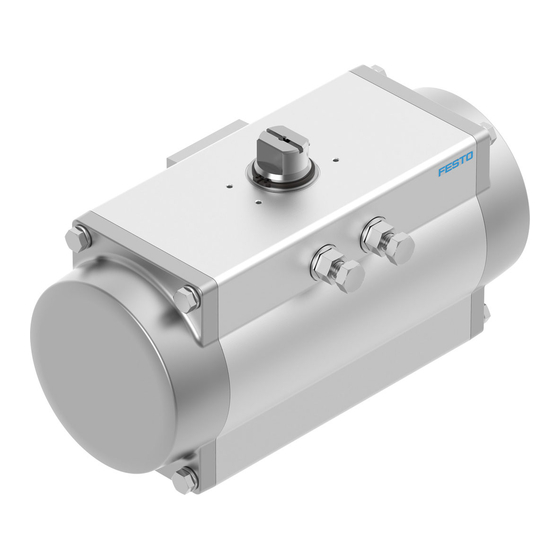

The DFPD quarter turn actuator is intended to actuate process valves, such as ball
valves and butterfly valves with a rotation angle from 0° (valve closed) to 180°
(depending on design).
Note
The operating torque of the actuator must not be higher than the maximum
permissible torque listed in ISO 5211 related to the size of the mounting flange
and coupling.
4 Additional information
– Accessories è www.festo.com/catalogue
– Spare parts è www.festo.com/spareparts
– Documents and literature è www.festo.com/sp
5 Service
• Consult your regional Festo contact if you have technical questions
è www.festo.com.
6 Product overview

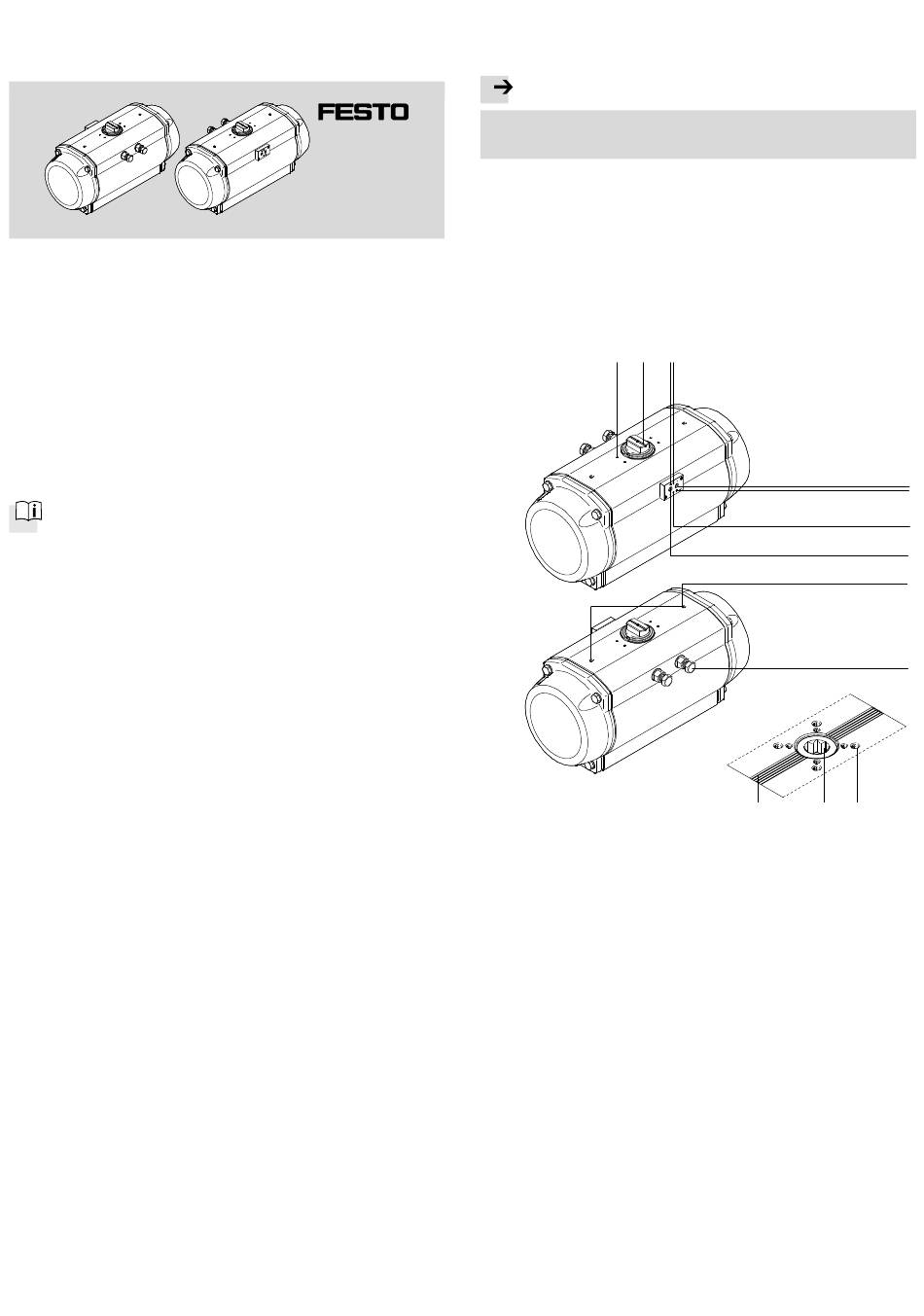

6.1 Configuration
English
1
Mounting thread for limit switch or
position sensor
2
Transmission shaft (shaft groove
shows the process valve position –
here closed)
3
Mounting thread for pneumatic
NAMUR switching valve
4
Mounting thread for coding pin
5
Compressed air supply port (4)
6
Mounting thread for pneumatic
NAMUR switching valve
Fig. 1
A shaft is guided outward on both sides through the housing. Through this,
the reaction torque is transmitted to a process valve (è Fig. 1, aB ) and, if applic­
able, a limit switch or position sensor (è Fig. 1, 2 ).
The end stops can be adjusted in the range ± 5° through the end-position adjust­
ment on both sides (è Fig. 1, 9 ).
3 4
1 2
aC
7
Mounting thread for coding pin
8
Compressed air supply port (2)
9
Threaded hole for transport lugs
(DFPD-2300)
aJ
End-position adjustment on both
sides
aA
Mounting thread for process valve
to ISO 5211
aB
Coupling for process valve
aC
Leakage slot
5
6
7
8
9
aJ
aB aA
