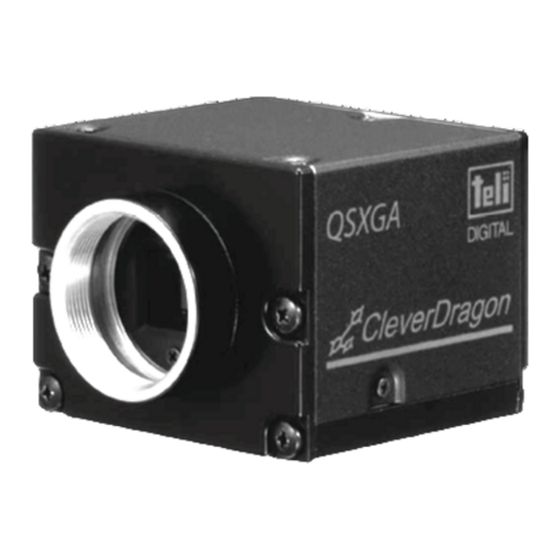

High-Resolution CCD Color Camera
CleverDragon Series
CSCU30CC18(-01)
Instruction Manual
Thank you for purchasing our product.
Before using this CCD color camera, please read through this instruction manual
carefully in order to use this product correctly and safely.
After reading, keep this instruction manual handy so that you can refer to,
whenever you need it.
1. Overview······························································································1
2. Features ································································································1
3. Configuration ·······················································································1
4. Optional parts ·······················································································2
5. Name of Each Parts···············································································2
6. Installing the camera ·············································································3
7. Connection ···························································································4
8. DIP switch setting·················································································5
9. Functions······························································································6
10. Before determining it as being a fault ·················································21
11. Specifications·····················································································22
12. Guarantee ··························································································29
13. Repair································································································29
13. Outline Drawing ················································································30
Contents
Rev 3.0
D4161841C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CleverDragon Series and is the answer not in the manual?

Questions and answers

Related Manuals for Toshiba teli CleverDragon Series

Summary of Contents for Toshiba teli CleverDragon Series

  • Page 1: Table Of Contents

    Rev 3.0 High-Resolution CCD Color Camera CleverDragon Series CSCU30CC18(-01) Instruction Manual Thank you for purchasing our product. Before using this CCD color camera, please read through this instruction manual carefully in order to use this product correctly and safely. After reading, keep this instruction manual handy so that you can refer to, whenever you need it.

  • Page 2: Safety Precautions

    Rev 3.0 Safety Precautions Before using this product, read these safety precautions carefully. Important information is shown in this Instruction Manual to protect users from bodily injuries and property damages, and to enable them to use the product safely and correctly. Please be sure to thoroughly understand the meanings of the following signs and symbols before reading the main text that follow, and observe the instructions given herein.
  • Page 3 Rev 3.0 [General Handing] WARNING Immediately cease use of the equipment in the event of abnormality or malfunction. If abnormal conditions are present, such as smoke, a burning smell, ingress of water or foreign matter, or if the equipment is dropped or malfunctions, fire or electric shock may result. If such abnormalities occur, disconnect the power plug from the outlet and contact your sales unplug representative.
  • Page 4 Rev 3.0 [General Handing] CAUTION Observe the following when installing the equipment: · Do not cover the equipment with a cloth, etc. · Do not place the equipment in a narrow location where heat is likely to accumulate. Otherwise, heat will accumulate inside the equipment, possibly resulting in a fire. Instruction Do not place the equipment in locations subject to high moisture, oil fumes, steam, or dust.
  • Page 5 Rev 3.0 CASES FOR INDEMNITY (LIMITED WARRANTY) We shall be exempted from taking responsibility and held harmless for damage or losses incurred by the user in the following cases. In the case damage or losses are caused by fire, earthquake, or other acts of God, acts by a third party, deliberate or accidental misuse by the user, or use under extreme operating conditions.
  • Page 6 Rev 3.0 Notes on using this product Handle carefully Do not drop the equipment or allow it to be subject to strong impact or vibration, as such action may cause malfunctions. Further, do not damage the connection cable, since this may cause wire breakage. Environmental operating conditions Do not use the product in locations where the ambient temperature or humidity exceeds the specifications.
  • Page 7 Rev 3.0 Disposal When disposing of the camera, it may be necessary to disassemble it into separate parts, in accordance with the laws and regulations of your country and/or municipality concerning environmental contamination. Following information is only for EU-member states: The use of the symbol indicates that this product may not be treated as household waste.
  • Page 8 Rev 3.0 月 The Mark and Information are applicable for People's Republic of China only. 相 机 本 体 T h i s i n f o r m a t i o n i s a p p l i c a b l e f o r P e o p l e ' s R e p u b l i c o f C h i n a o n l y . リ...

  • Page 9: Overview

    Rev 3.0 1. Overview This CCD color camera is a high-resolution color camera that features all pixel readout mode 1/1.8 CCD. Model Power Supply Interface PoCL CSCU30CC18 Camera Link Connector (Power over Camera Link) non-PoCL CSCU30CC18-01 I/O Connector (Camera Link) 2.

  • Page 10: Optional Parts

    Rev 3.0 4. Optional parts (1) Power cable Model name: CPRC3700-** (2) Camera Link cable For the cable for PoCL, please contact the cable manufacturer. (3) Camera mounting kit Model name: CPT4000CL (4) Camera adapter Model name: CA130C *NOTE: Application software is not supplied as a standard item. Notes on optional parts and compliance with safety standard conditions: We assure the compliance of this camera with the safety standard when it is used in combination with the optional parts listed above.

  • Page 11: Installing The Camera

    Rev 3.0 (2) DIP switches Used for various setting. For more information how to set the dip switches, see Chapter 8 "Dip Switch Setting" (on page 5). (3) Connector for power supply and sync signal input/output I/O This is a terminal used for power supply to the camera. This connector is connected to the power supply unit. In addition, this connector is used for sync signal (WEN signal) output and external trigger signal input.

  • Page 12: Connection

    Rev 3.0 7. Connection Connect this camera as shown in the figure below. (The figure below shows an example of connection. For details, contact our sales representative.) C C D C A M E R A C C D C A M E R A C C D C A M E R A C C D C A M E R A C S C U 3 0 C C 1 8...

  • Page 13: Dip Switch Setting

    Rev 3.0 8. DIP switch setting By using the DIP switches on the back surface of the camera body, you can set serial transmission speed and memory readout for when the power supply is turned on. If you change the switch setting after the power supply is turned on, the change is not reflected. Firm update Transmission speed setting Memory readout setting...

  • Page 14: Functions

    Rev 3.0 9. Functions By accessing the camera register published on the camera link I/F, you can control/set each function. Since access to the camera register is performed via the frame grabber board, the controlling and setting methods differ depending on the frame grabber board you use. For details, refer to the instruction manual of the relevant frame grabber board or contact our sales representative.
  • Page 15 Rev 3.0 2) Programmable partial scan A d d r e s s ： 0 x 7 0 , B i t ： 0 , V a l u e : 0 a n d A d d r e s s ： 0 x 8 1 , B i t ： 0 , V a l u e : 1 A range arbitrary from 50 lines to 1236 lines can be read.
  • Page 16 Rev 3.0 3) High-speed draft readout A d d r e s s ： 0 x 7 0 , B i t ： 0 , V a l u e : 1 a n d A d d r e s s ： 0 x 8 1 , B i t ： 0 , V a l u e : 0 By reading 2 lines out of every 8 lines, reads out the whole valid area in approximately 1/89 seconds.
  • Page 17 Rev 3.0 (3) Setup A d d r e s s ： 0 x 6 2 , B i t ： 0 t o 7 , V a l u e : 5 0 t o 2 5 5 You can set a setup level (pedestal). Setup Output Format Setting range...
  • Page 18 Rev 3.0 (8) Electronic shutter A d d r e s s ： 0 x 6 8 , B i t ： 0 t o 7 , a n d A d d r e s s : 0 x 6 9 , B i t : 0 t o 2 , V a l u e : 0 t o 2 0 4 7 You can set the shutter speed.
  • Page 19 Rev 3.0 (9) Random trigger shutter A d d r e s s ： 0 x 6 A , B i t ： 0 , V a l u e : 1 In the random trigger shutter mode, you can shoot and grab an image at an arbitrary timing by trigger signal input from the external.
  • Page 20 Rev 3.0 (10) Multiple-shutter mode A d d r e s s ： 0 x 6 6 , B i t ： 0 , V a l u e ： 1 In the multiple-shutter mode, video is output in sync with a MULTI signal from the external after the end of exposure time.
  • Page 21 Rev 3.0 (11) Restart reset mode A d d r e s s ： 0 x 6 A , B i t ： 4 , V a l u e : 1 In the start reset mode, it takes a picture of the image according to arbitrary timing by the VD signal input from the outside, and it is possible to take it.
  • Page 22 Rev 3.0 (12) Setting value memory Each setting value can be saved in the memory inside the camera. ・ T he contents of the memory is held even after the power supply is turned off. ・ T he memory consists of 4 banks. For each table, you can save/readout the setting value independently, as well as reset the setting value to the initial factory setting.
  • Page 23 Rev 3.0 9.2 Communication protocol This camera uses the communication protocol of our standard method (where, parameters are set for the camera-internal registers). In command transmission/receipt, the address and data in hexadecimal representation are converted to ASCII. In addition, all alphabetical characters must be uppercase characters. (1) Writing to the register To write data to a register, send a write command as follows.
  • Page 24 Rev 3.0 9.3 Register Map Name Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Default 0x00 Vendor Name “TOSHIBA TELI” ← (Read Only) 0x0F 0x10 Model Name “CSCU30CC18” ← (Read Only) 0x1F 0x20 Serial Number Base Registers ← Serial Number...
  • Page 25 Rev 3.0 Name Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Default 0x60 Reserved Reserved 0x61 Reserved Reserved 0x62 Setup Setup (0x00 ～ 0x31) 0x10 0x63 Reserved Reserved 0x64 Gain Gain (0x00 ～ 0x4B) 0x00 0x65 Reserved Reserved 1:ON 0x66 Multiple Shutter 0x00 0:OFF...
  • Page 26 Rev 3.0 Name Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Default 1:OPWB 0x74 WB Mode 0:MAN 0x00 0x1E: 3000K 0x25: 3700K 0x28: 4000K 0x75 Manual WB Temp. 0x2D: 4500K 0xFF 0x37: 5500K 0x41: 6500K 0xFF: User Manual WB 0x76 Reserved Reserved OPWB...
  • Page 27 Rev 3.0 Name Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Default 0x80 Reserved Reserved 1:ON 0x81 Partial Scan 0x00 0:OFF 0x82 Reserved Reserved 0x83 ～ 0x84 Partial V Start(L) Partial V Start (0x000 0x4A2) 0x160 0x85 Partial V Start(U) 0x86 Reserved Reserved...
  • Page 28 Rev 3.0 9.4 Error status If NAK is returned to the sent command, you can obtain detailed information on the error by accessing the status register. Status code Expansion Error type Details of error Status Code Status (Addr. 0x41) (Addr. 0x95) The previous communication was executed No Error 0x00...

  • Page 29: Before Determining It As Being A Fault

    Rev 3.0 10. Before determining it as being a fault If any trouble occurs in use, check the following first. If the trouble persists, contact your distributor or our sales representatives. Phenomena Check item Cannot turn on power - Check the connection of the camera adapter and power cable. Shooting image is not displayed - Check the connection of the camera link cable and camera cable.

  • Page 30: Specifications

    Rev 3.0 11. Specifications [Electrical specification] (1) Imager Interline CCD ・ N umber of total pixels 1688 (H) x 1248 (V) ・ N umber of effective pixels 1628 (H) x 1236 (V) ・ P ixel size m (H) x 4.4 m (V) µ...
  • Page 31 Rev 3.0 ［ ［ ［ ［ E lectronic shutter specification ］ ］ ］ ］ (1) Shutter speed ・ R eadout mode All pixel readout 1/30 to 1/65,934 s (1250 levels) Partial scan 1/30 to 1/65,934 s (1250 levels) High-speed draft readout 1/89 to 1/65,934 s (313 levels) (2) Random trigger shutter ON/OFF switching (initial factory setting: OFF)
  • Page 32 Rev 3.0 [Internal sync signal specification] (1) Driving frequency 72.000 MHz (2) Scanning frequency ・ R eadout mode All pixel readout Horizontal :37.500 kHz Vertical :30.000 Hz Partial scan Horizontal :37.500 kHz Vertical :30.193 Hz to 183.824Hz High-speed draft readout Horizontal :28.037 kHz Vertical...
  • Page 33 Rev 3.0 ［ ［ ［ ［ D imensions ］ ］ ］ ］ (1) Lens mount C-mount Notes on combination of C-mount lens : Depending on the lens you use, the performance of the camera may not be brought out fully due to the deterioration in resolution and brightness in the peripheral area, occurrence of a ghost, aberration and others.When you check the combination between the lens and camera, be sure to use the lens you actually use.
  • Page 34 Rev 3.0 ［ ［ ［ ［ T ypical spectral response ］ ］ ］ ］ The lens characteristics and light source characteristics is not reflected in table. 1 . 0 0 . 9 0 . 8 BLUE GREEN 0 . 7 0 .
  • Page 35 Rev 3.0 ［ ［ ［ ［ T iming chart ］ ］ ］ ］ (1) Horizontal timing 1) All pixel readout, Partial scan LVAL DVAL DATA OUT a = 185CLK b = 107CLK c = 292CLK d = 1628CLK e = 1920CLK 2) High-speed draft readout LVAL DVAL...
  • Page 36 Rev 3.0 (2) Vertical timing 1) All pixel readout FVAL LVAL DVAL DATA OUT A = 3H B = 10H C = 13H D = 1236H E = 1H F = 1250H 2) Partial scan FVAL LVAL DVAL DATA OUT A = 3H B = 10H C = 13H...

  • Page 37: Guarantee

    Rev 3.0 12. Guarantee The term of a guarantee is one year after the product delivery. If by any chance trouble by responsibility of our company occurs before an above period, TELI repairs it free of charge. During terms of a guarantee, when the trouble cause is the case of below, TELI charges the repair costs. (1) Troubles and the damages that causes by misuse, unsuitable repair or remodeling.

  • Page 38: Outline Drawing

    Rev 3.0 13. Outline Drawing D4161841C...
  • Page 39 Rev 3.0 NOTE D4161841C...
  • Page 40 Rev 3.0 Head Office : 7-1, 4 chome, Asahigaoka, Hino-shi, Tokyo, 191-0065, Japan (International Sales Department) Phone : +81-42-589-8771 : +81-42-589-8774 : http://www.toshiba-teli.co.jp/ Distributor • This product must be classified for disposal according to the laws of each country and municipal laws. •...
