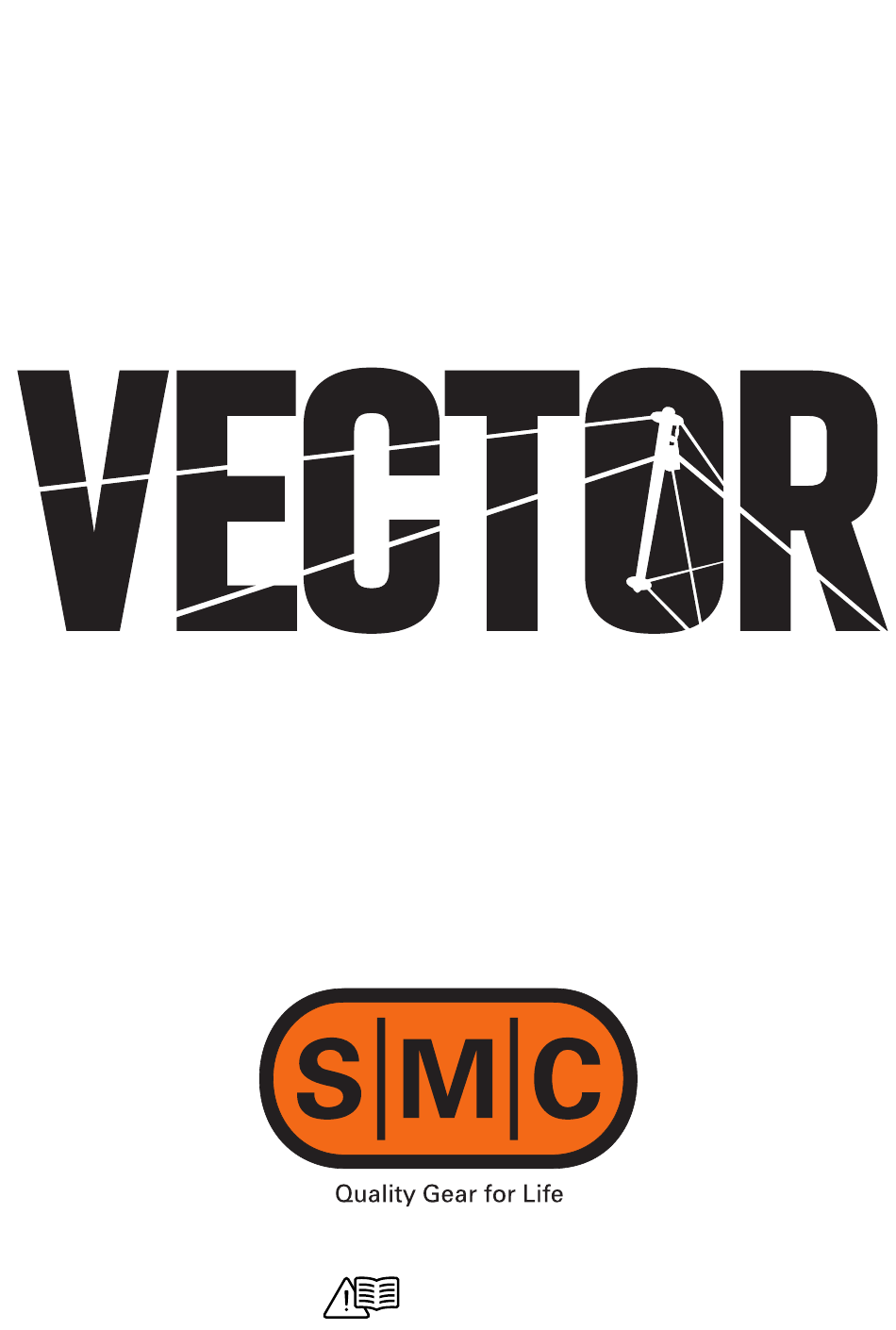

  • Page 1 EDGE & LOAD MANAGEMENT SYSTEM MADE IN USA USER INSTRUCTION...

  • Page 2: Table Of Contents

    VECTOR EDGE & LOAD Management System Table of Contents Introduction 2. Assembly Instructions 3. WARNINGS 4. working loads 5. set-up information 6. warranty Replacement Parts - 1 - © 2018 SMC...

  • Page 3: Introduction

    VECTOR. Compare separated from the VECTOR, and that a copy of it be kept with the VECTOR. It is suggested that this Vector with a new model if necessary to determine its condition. Remove from service if the user refer to this User Information sheet before and after each use of the VECTOR.

  • Page 4: Assembly Instructions

    • Inspect threads for dings which might create resistance when threading on main tube 1. Place first Vector Rigging Plate on Vector Rope Horn and thread into one end of the Vector • Inspect for gouges which could damage cord or webbing used in rigging or guy lines Tube.

  • Page 5: Warnings

    Users must ensure that lateral loads not be introduced to the tubing while the system is under load. Likewise, any damage to the Vector Tube can act as a weak point that can initiate compression failure in the tube during a dynamic event. Users must inspect the Vector before and after every use to ensure that the Vector Tube is free from any damage.

  • Page 6: Working Loads

    Eccentric loading (forces not in the plane defined by the Vector Tube) will impart bending moment forces to the Vector Tube that could cause the tube to buckle in a dynamic event. It is The Vector Edge and Load Management System has been through extensive lab and field recommended that the user minimize eccentric loading whenever possible.
  • Page 7 2 kN 0 kN 2 kN 2 kN 15° 15° 0 kN Force vector 0.90 kN 1.41 kN 2 kN (area of arrow is proportional to magnitude of vector) - 10 - - 11 - © 2018 SMC © 2018 SMC...
  • Page 8 1 kN 4.77 kN 4.88 kN Force vector 1 kN 1 kN (area of arrow is 3.23 kN 2.87 kN 1 kN 1 kN proportional to magnitude of vector) - 12 - - 13 - © 2018 SMC © 2018 SMC...
  • Page 9 HIGH ANCHOR CONFIGURATION HIGH ANCHOR CONFIGURATION REAR GUY STATIC LOAD SCENARIOS STATIC LOAD SCENARIOS (cont’d) 70° POLE NOTE: Using two rear guys will improve stability (Top view) Loads are 1 kN for all High Anchor scenarios. 0.9 kN These load scenarios are 157 N·m provided for information only and are not a substitute...

  • Page 10: Warranty

    Include contact information. Due to the complexity of the Vector, if one of the main components of the system appears to be damaged, the entire system is suspect and must be inspected by the manufacturer. As a result, replacement parts for these components are not available without first sending them to SMC for inspection.
