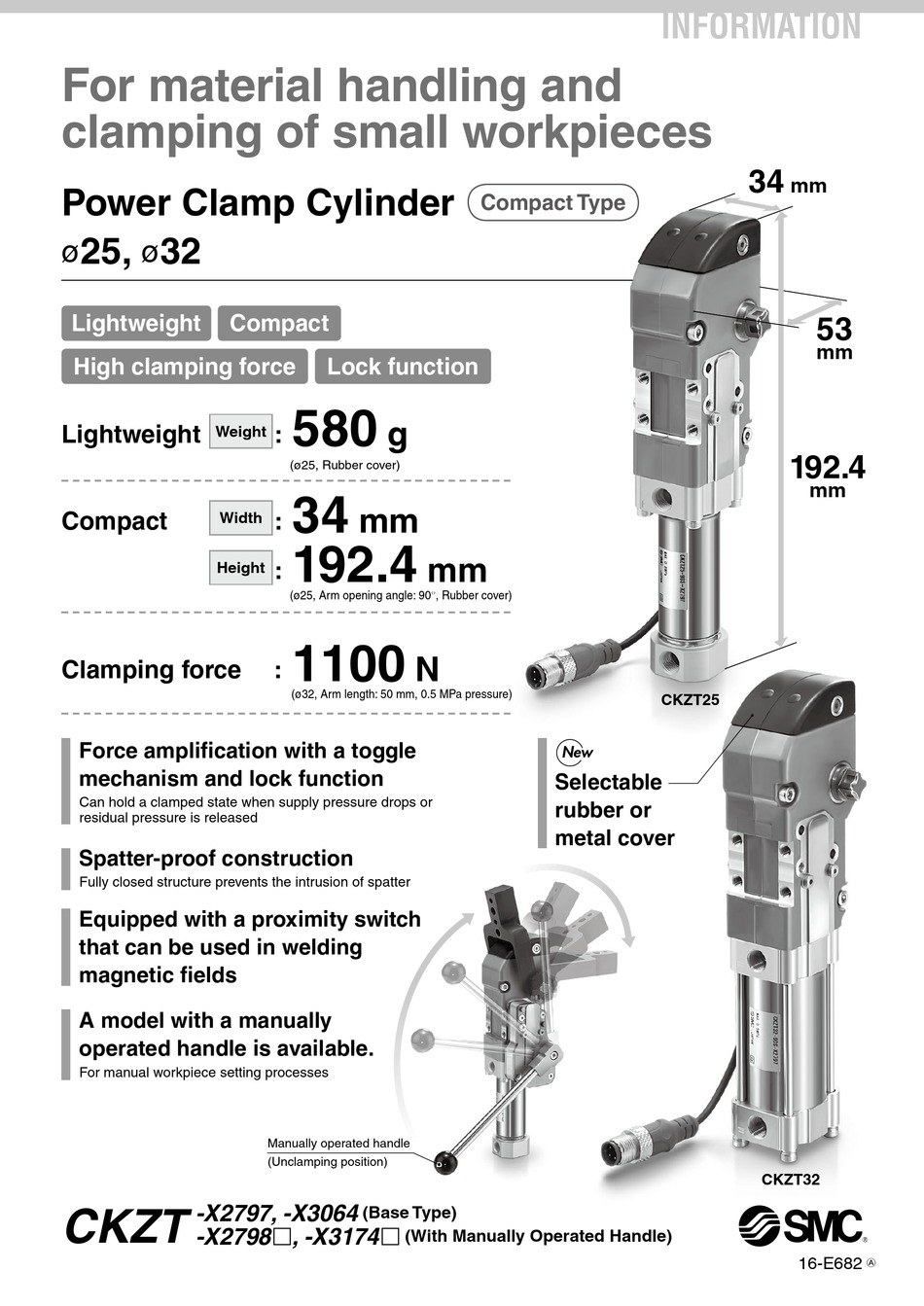

For material handling and
clamping of small workpieces
Power Clamp Cylinder
25,
32
ø
ø
Lightweight
Compact
High clamping force
Lightweight
Weight
Compact
Width
Height
Clamping force
Force amplification with a toggle
mechanism and lock function
Can hold a clamped state when supply pressure drops or
residual pressure is released
Spatter-proof construction
Fully closed structure prevents the intrusion of spatter
Equipped with a proximity switch
that can be used in welding
magnetic fields
A model with a manually
operated handle is available.
For manual workpiece setting processes
CKZT
-X2797, -X3064
-X2798 , -X3174
Lock function
580
g
:
(ø25, Rubber cover)
34
mm
:
192.4
mm
:
(ø25, Arm opening angle: 90°, Rubber cover)
1100
N
:
(ø32, Arm length: 50 mm, 0.5 MPa pressure)
Manually operated handle
(Unclamping position)
(Base Type)
(With Manually Operated Handle)
Compact Type
New
New
Selectable
rubber or
metal cover
INFORMATION
34
mm
53
mm
192.4
mm
CKZT25
CKZT32
16-E682
A
Advertisement
Related Manuals for SMC Networks CKZT-X2798 Series
Summary of Contents for SMC Networks CKZT-X2798 Series
- Page 1 INFORMATION For material handling and clamping of small workpieces Power Clamp Cylinder Compact Type ø ø Lightweight Compact High clamping force Lock function Lightweight Weight 192.4 (ø25, Rubber cover) Compact Width 192.4 Height (ø25, Arm opening angle: 90°, Rubber cover) 1100 Clamping force (ø32, Arm length: 50 mm, 0.5 MPa pressure)
- Page 2 Power Clamp Cylinder Compact Type CKZT -X2797, -X3064 -X2798 , -X3174 ø25, ø32 How to Order Top cover Rubber cover X2797 (Equivalent to UL94 Standard V0: Flame resistant) X3064 Metal cover CKZT X2797 Base type CKZT X2798 With manually operated handle Manually operated handle mounting position Bore size...
- Page 3 -X2797, -X3064 CKZT -X2798 , -X3174 Power Clamp Cylinder Cylinder Specifications Bore size Action Double acting Fluid Proof pressure 1.2 MPa Max. operating pressure 0.8 MPa 0.5 MPa Min. operating pressure 0.3 MPa Ambient and fluid temperatures −10 to 60°C (No freezing) Clamping side: None Cushion Unclamping side: Rubber bumper...
- Page 4 -X2797, -X3064 CKZT -X2798 , -X3174 Dimensions CKZT-S-X2797 CKZT-S-X3064 Rubber cover Metal cover type Clamp arm (Refer to page 5 for details.) Metal cover Lock release point Metal cover open 10 34 (31.2) ±0.1 Proximity switch 2 x 4 x M5 x 0.8 depth 6 G1/8 Unclamping port...
- Page 5 -X2797, -X3064 CKZT -X2798 , -X3174 Power Clamp Cylinder Dimensions: With Manually Operated Handle CKZT-S-X2798 -X3174 * Refer to the CKZT-S-X2797 (page 3) for dimensions other than those shown below. Handle position: Right Unclamping position Handle position: Left F°...
- Page 6 -X2797, -X3064 CKZT -X2798 , -X3174 Dimensions: Clamp Arm CKZT25-A000 S-X2797 L: Left C: Center R: Right ±0.1 2 x ø4H7 through ±0.02 2 x ø6.5 through...
-
Page 7: Model Selection
CKZT -X2797, -X3064 -X2798 m, -X3174 m Model Selection Relation between arm length and clamping force Arm length Clamp arm Shim Clamping block Fulcrum Extension arm Load cell Bore Size: Bore Size: 1200 1200 1000 1000 0.8 MPa 0.5 MPa 0.5 MPa 0.3 MPa 0.3 MPa... -
Page 8: Setup Procedure
CKZT -X2797, -X3064 -X2798 , -X3174 Setup Procedure Precautions 1) There is a mechanical difference of 0 to +0.5° at the clamping end as Clamp arm shown in Figure 1. Be sure to make adjustments externally using a shim. Refer to page 9. +0.5°... - Page 9 -X2797, -X3064 CKZT -X2798 , -X3174 Setup Procedure Power clamp cylinder mounting and setup procedure <Ex. 2 When using a hard stop: When not equipped with a workpiece receptacle> Cylinder Clamp arm Shim q Upper hard stop Unclamping port Shim w Clamping port Arm side block...
- Page 10 -X2797, -X3064 CKZT -X2798 , -X3174 Relation between shim thickness and clamping force ∗ Use this figure as a guide, as there is a tolerance of about 10% in the clamp cylinder body. ∗ When a shim exceeding the peak clamping force position on the graph is inserted, the lock will not be activated when clamped. Insert a shim of the appropriate thickness.
- Page 11 CKZT -X2797, -X3064 -X2798 m, -X3174 m Specific Product Precautions Be sure to read this before handling the products. For safety instructions and actuator precautions, refer to the “Handling Precautions for SMC Products” and the “Operation Manual” on the SMC website: http://www.smcworld.com Caution Caution 1.
- Page 12 Power Clamp Cylinder Variations * For detailed dimensions and specifications, refer to the Web Catalog. Micro Clamp Cylinder: CKZM16-X2800/X2900 ¡Compact: Width 20 mm, Lightweight: 250 g ¡Reduction of design/assembly labor by unitization Arm assembly and mounting assembly have been added ¡Maximum clamping force: 200 N, Maximum holding force: 300 N ¡Flat clamping characteristics to the clamp cylinder.
