Matchmaster 01MM-DG27 Installation Instructions

01MM-DG27
UHF/VHF Ch (6-12) (21-46) HD Compliant Antenna Installation Instructions

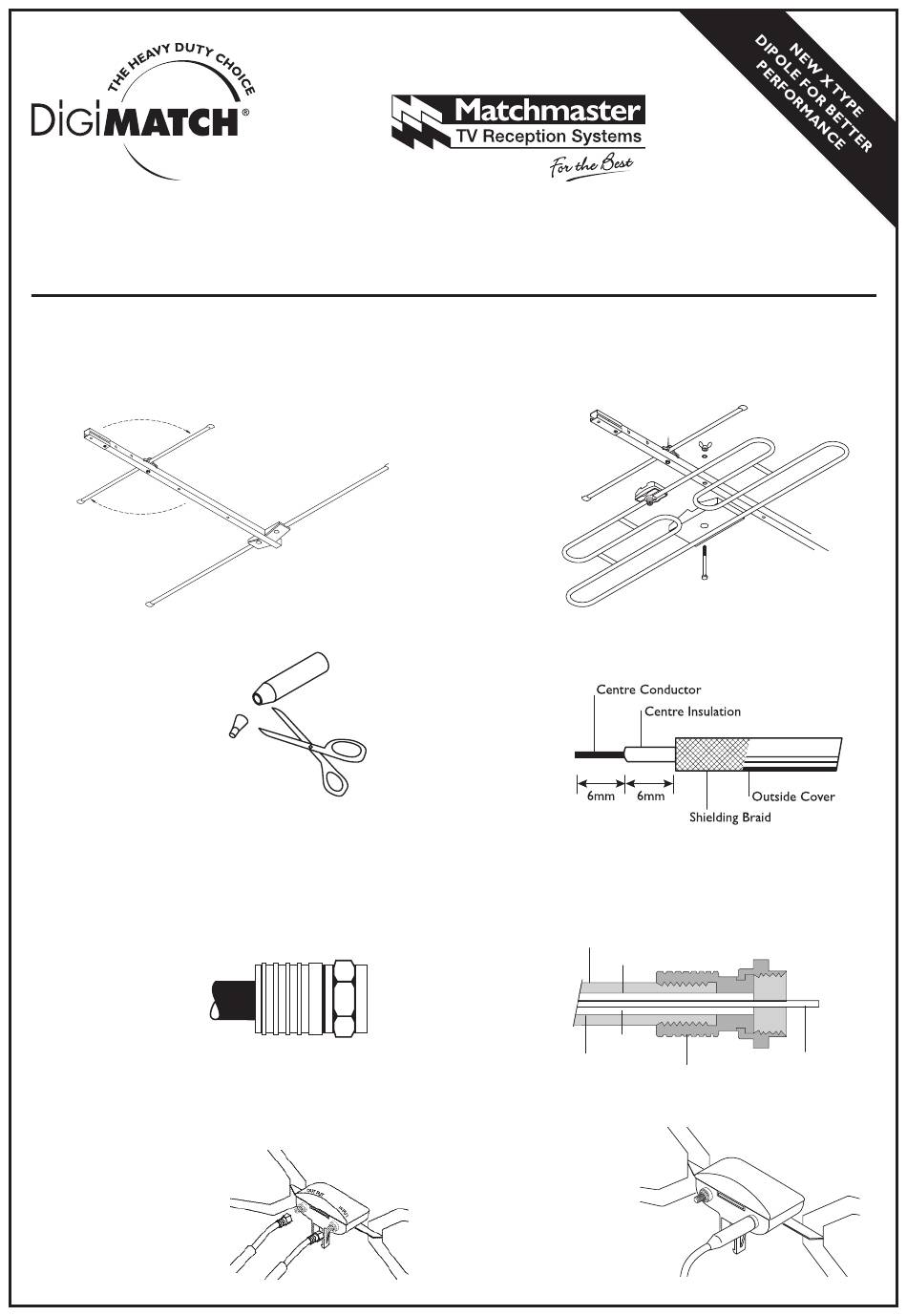

Step 1

Open small VHF element to 90º to boom till
plastic insulator snaps into position.
See diagram.

Step 3

Cut the rubber boot seal
provided as in diagram.

Step 5

Select connector provided.
(Suitable for RG6 or semi airspaced cable)
Place "F" connector on back to front and twist to
ensure that all braid is flat. See diagram.
(For other cable types
you will need to purchase
the corresponding
connector)

Step 7

Select the UHF dipole then connect the cable you have
just prepared to the connector on the balun marked
"OUTPUT". Then take the
short cable with two
connectors already
attached and connect
one end to the connector
marked "INPUT".
by

Step 2

Attach double folded dipole ('G' Unit
and wing nut. Ensure short element is on the top of the boom and
the 'G' Unit
G-Unit

Step 4

Strip coax cable as shown in diagram and
feed through rubber boot seal.

Step 6

Then insert cable into rear of connector and twist connector
clockwise until dielectric is flush with the bottom nut as in Fig 6.
Ensure that 2-3mm of centre core conductor protrudes past the nut.

Step 8

Then slide rubber boot
seals into position as per
diagram.
) to boom using the washers
®
is attached to the bottom of the boom. See diagram.
®
®
Plastic Outer Case
Metal Braid
Dielectric
Metal Sheath
Knurled Surface
L4052
Core
Conductor
