Matchmaster Digimatch 03MM-DC21V Installation Instructions

03MM-DC21V
VHF Ch (6-12) Digital Antenna Installation Instructions

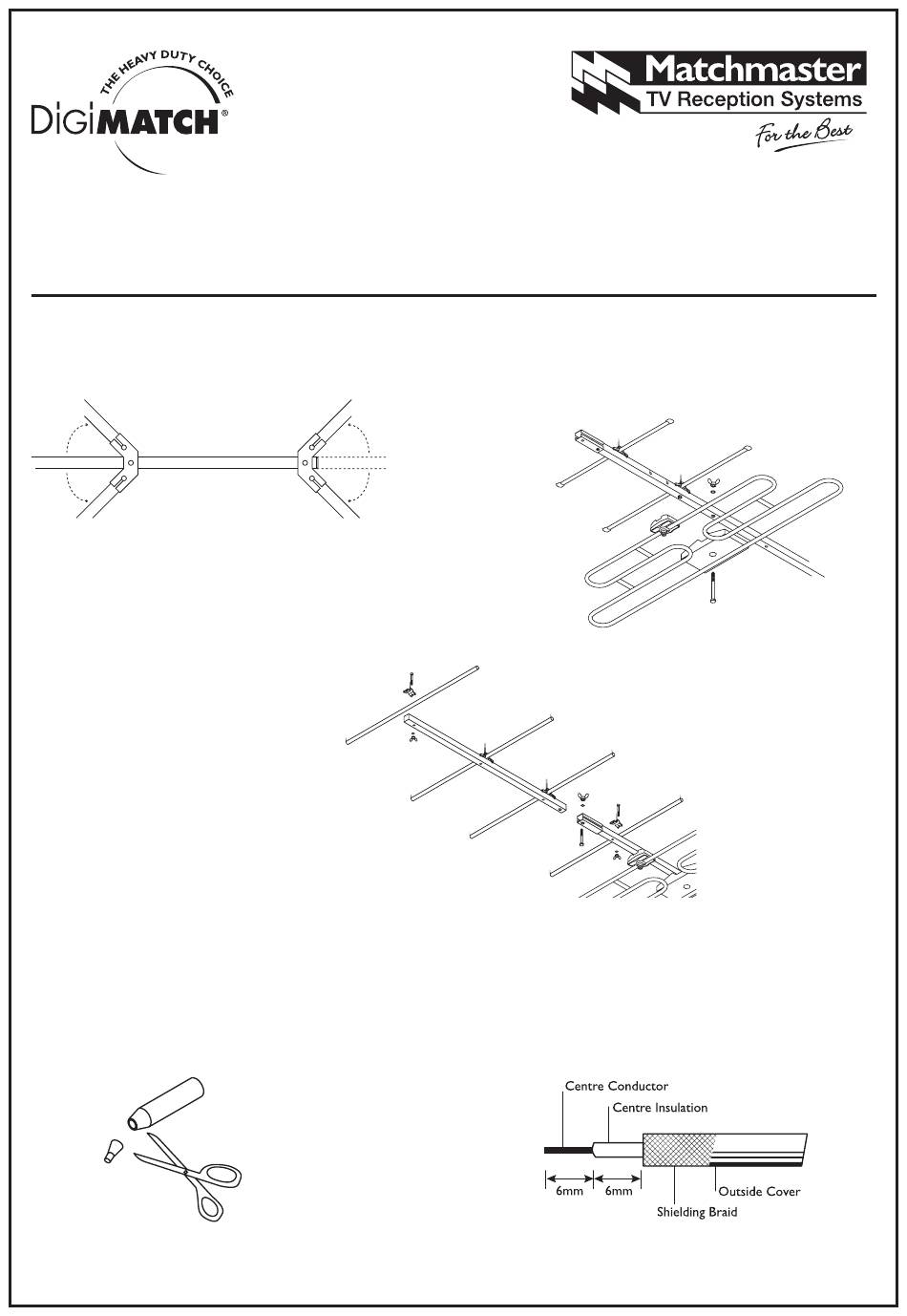

Step 1
Snap out corner reflectors and the end of the boom.
Step 3
Snap out elements on both booms so
they are at 90 degrees. Connect both
booms together using screw and wing
nut provided.
Step 4
Cut the rubber boot seal provided and slide onto
stripped cable as in diagram.
Step 2
Attach double folded dipole ('G' Unit) to boom using the
6mm (1/4") hex head bolt washers and wing nut. Note:
The 'G' Unit is to be attached to the bottom side of the boom.
See diagram.
Step 5
Strip coax cable as shown in diagram and feed through
rubber boot seal.
