Matchmaster DiGiMATCH 03MM-BIGRAY Quick Start Manual

by
03MM-BIGRAY
Antenna B3 Horizontal / Vertical 16 Element Phased Array plus balun

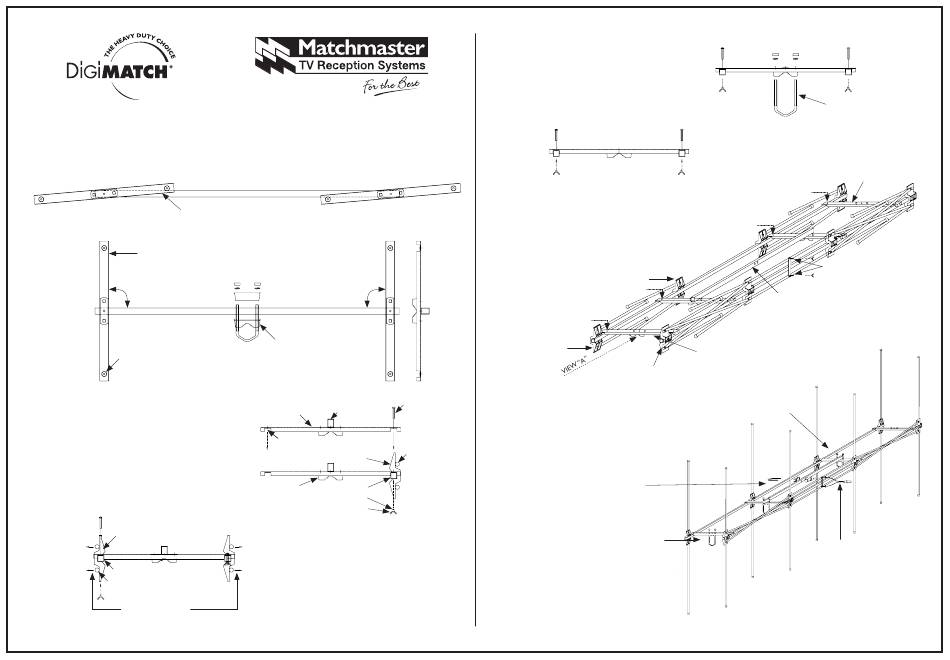

Step 1 Swing out both Tie Brackets to 90°.
Folded Position Shown
Step 1.2 For Vertical Signal attach the mast clamp at middle position on the centre boom.
CENTRE BOOM ASS'Y - Plan View
Tie Bracket
90°
5mm Connection Hole
Step 2 Hold centre boom over boom leg at hole
positions 2 & 3. Align the notch part of the tie
bracket with the boom leg. Then clip parts together.
Insert 4.8x32mm screw trough tie bracket fasten
with spring washer and wing nut.
VIEW "A"
Plastic No.63
Boom Leg
Element Tube
Note: Element Tubes
Face away from centre
90°
Mast clamp mounting
shown for vertical signal
VIEW "A"
Panhead Screw
Tie Bracket Centre Boom
4.8x32mm
Notch
Element Tube
Plastic No.63
Mast Clamp Boom Leg
Spring Washer
Wing Nut
Step 3 Repeat Step No. 2 to attach 2nd boom leg
Step 4 Attach the tie bracket / mast clamp at hole
position 1. Insert 4.8x32mm screws through tie
bracket then fasten using spring washer & wing nut.
VIEW "A"
Step 5 Attach tie bracket at hole position 4
Insert 4.8x32mm screws through tie bracket fasten
using spring washer and wing nut
Plastic No.63
Hole Position 2
Hole Position 1
Boom Leg Ass'y
Boom Leg Phase-bar - Ass'y
Step 6 Attach cable to connection points shown
Step 7 Swing-out element tubes unit they
click-lock with the No.63 plastic at 90° position
final check all parts with assembly drawing before
installing Antenna
U-bolt/mast clamp
- Assembly position for
BIGRAY Vertical Mounting
U-bolt/mast clamp
- Assembly position for
BIGRAY Horizontal
Mounting
For any technical enquiries, call our technical department at Matchmaster on 1800-AERIAL
VIEW "A"
Clamp attachment for
horizontal signal mounting
Step 4.1 For horizontal signal option
attach mast clamp/U-bolt kit onto tie bracket as
shown.
Tie Bracket
Hole Position 4
Hole Position 3
Balun Connections
Centre Boom Ass'y
Tie Bracket/Mast Clamp - Ass'y
U-bolt/mast clamp
assembly position for
BIGRAY Horizontal
Mounting
Balun 05MM-TV4F
(1800-237425)
