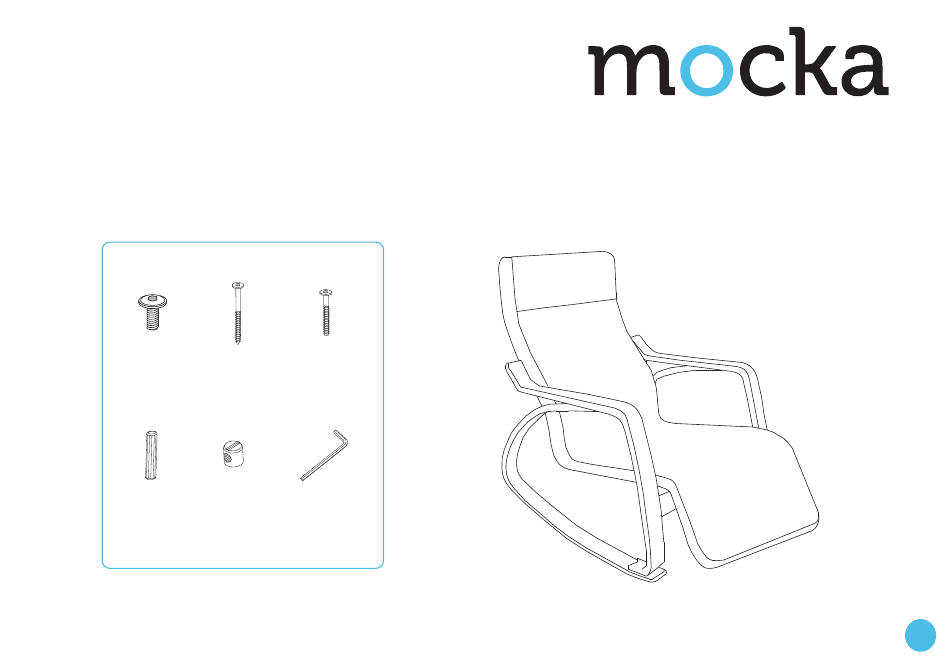

- Page 1 Asta Recline Assembly Instructions Thank you for your purchase. Please follow the instructions below for correct assembly. bolt screw long screw dowel allen key Hardware Supplied mocka.co.nz | mocka.com.au...
- Page 2 Asta Recline Assembly Instructions On parts [4] and [5], the arrows on the frames point in the direction it Place the assembled frame inside the cover [3], ensuring the arrows in should be facing (upwards). Attach part [4] to [5] using 2x bolts (A).
- Page 3 Asta Recline Assembly Instructions Insert 4x dowels (D) into panel [2] as shown. Attach panel [2] to the chair legs [1] using 2x long screws (B) and secure with 2x nuts (E). mocka.co.nz | mocka.com.au...
- Page 4 Asta Recline Assembly Instructions Position the chair body [3] between the chair legs [1]. Attach the chair body [3] to the chair legs [1] as shown, using 6x screws (C). Ensure the holes in the metal frame match up with the eyelets on the cover.
- Page 5 Asta Recline Jolt Wardrobe Assembly Instructions ASSEMBLY INSTRUCTIONS Once assembled lift the footrest and click into the desired position. To You’re done, enjoy! lower the footrest, pull upwards and push down. mocka.co.nz | mocka.com.au mocka.co.nz | mocka.com.au...
