- Page 1 O w n e r s M a n u a l...
-
Page 2: Table Of Contents
Contents Introduction Connecting Speaker Cables Featured Technology Bare Wire Connection MPD High Frequency Transducer Banana Plugs C-CAM (Ceramic Coated Aluminium/ Spade Connectors Magnesium) Running-In Your Loudspeakers RDT II (Rigid Diaphragm Technology 2nd Upkeep of Cabinets Generation) Retention Bolt Adjustment HiVe II (High Velocity, Low Noise Reflex Port) Stands Single Bolt Though Driver... -
Page 3: Introduction

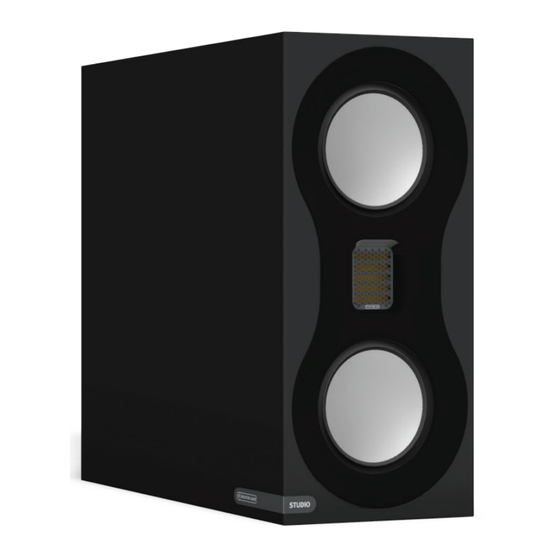

Monitor Audio’s history. The dual 4” RDT II drivers used in Studio are developed from the PL500 II, modified in this case to produce bass, as well as mid-range. The DCF ‘Dynamic Coupling Filter’ technology is also incorporated to optimise and reduce high-frequency cone break-up and increase the critical voice coil circumferential rigidity. -
Page 4: Hive Ii (High Velocity, Low Noise Reflex Port)
The super slim Studio cabinet is tuned using two rear mounted HiVe II ports mounted at the top and bottom of the cabinet, this is to ensure the pressure inside the cabinet is balanced symmetrically. The large port surface area also ensures there is no turbulence and resulting air noise, which can be a problem in small cabinets. -
Page 5: Unpacking
The opposite approach is recommended if there is excessive bass. If stereo imaging is being lost, try ‘toeing-in’ the speakers slightly. The sound should appear to originate from the centre point between the speakers, not the speakers themselves. Studio... -
Page 6: Connecting Speaker Cables
Never use solvents or aggressive cleaning/polishing agents on your Studio Loudspeakers. When in doubt, test the cleaning product on an inconspicuous area on the cabinet and let it sit for several days before committing to its use on visible portions of the cabinet. -
Page 7: Retention Bolt Adjustment
Retention Bolt Adjustment The Studio loudspeaker has a bolt-through driver fixing to reduce cabinet colouration. Each bolt acts as a rigid brace, but also removes the need for conventional driver fixings as well, effectively decoupling the driver and front baffle to eliminate a further source of resonance. -
Page 8: Specifications
340 x 156.2 x 361mm (Including Terminals) x 141 inch 3/16 (H x W x D) Product Weight 7.58Kg (16lb 9oz) Satin lacquer finish in black, Finishes Available white and grey Monitor Audio reserves the right to alter specifications without notice. monitoraudio.com... - Page 9 Monitor Audio Ltd. 24 Brook Road Rayleigh, Essex SS6 7XJ England Tel: +44 (0)1268 740580 Fax: +44 (0)1268 740589 Email: info@monitoraudio.co.uk Web: www.monitoraudio.com Designed & Engineered in the United Kingdom Made in China Version 1. 2018...
