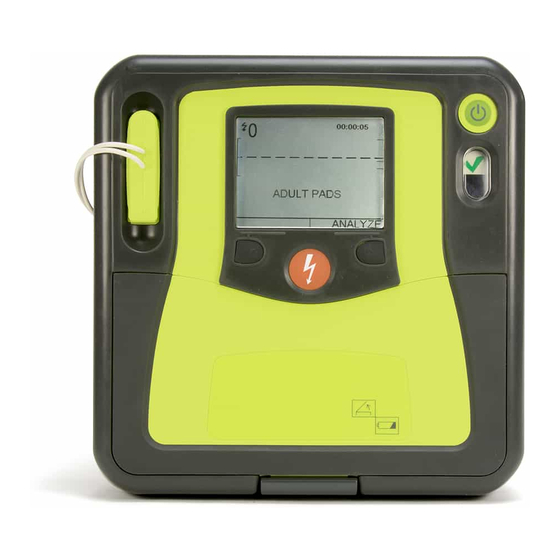

ZOLL AED Pro Service Manual
  1. Manuals
  2. Brands
  3. ZOLL Manuals
  4. Medical Equipment
  5. aed pro
  6. Service manual

ZOLL AED Pro Service Manual

Hide thumbs Also See for AED Pro:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
Service Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AED Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZOLL AED Pro

Summary of Contents for ZOLL AED Pro

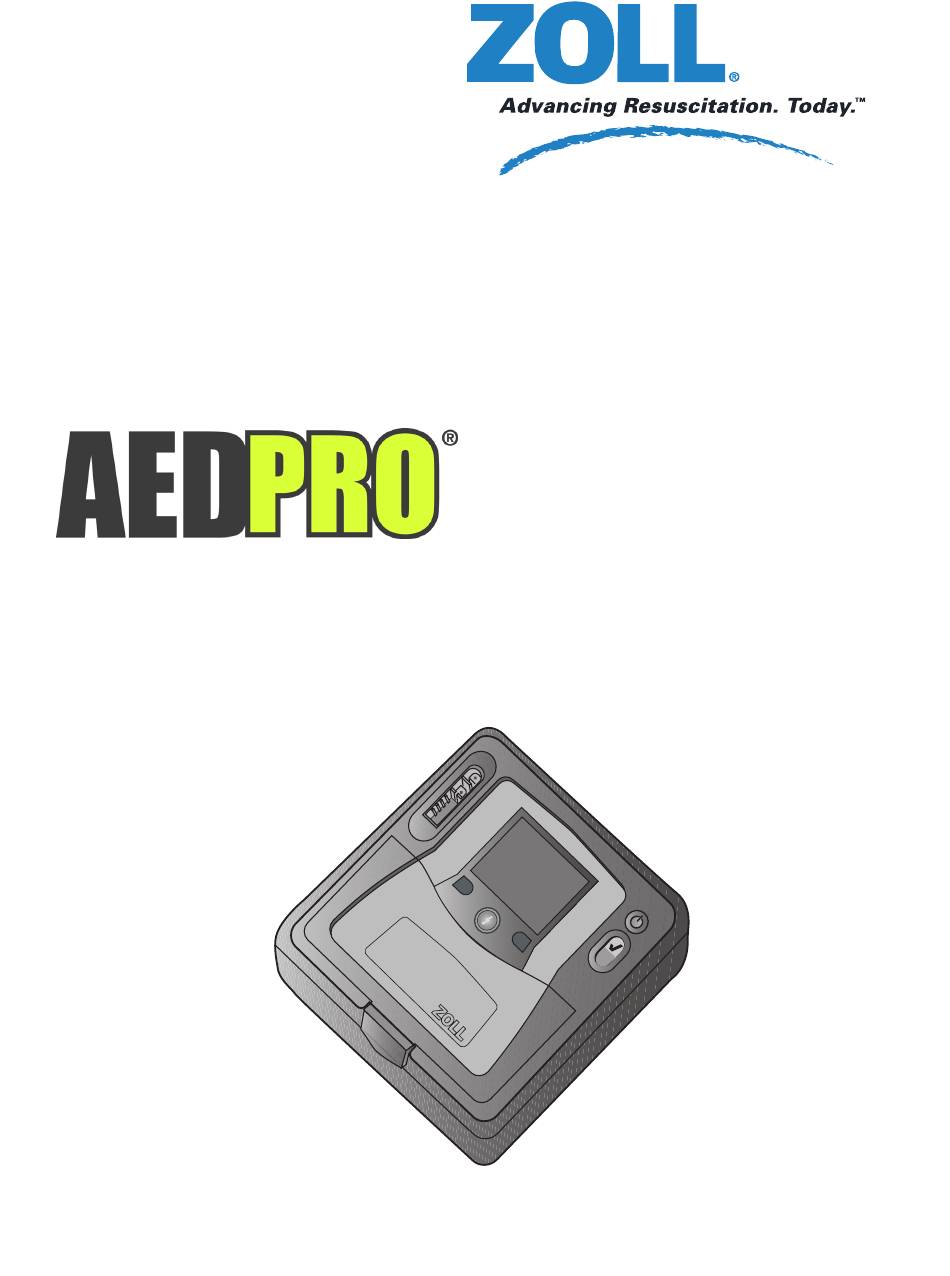

  • Page 1 Service Manual...
  • Page 3 Service Manual February 2007 9650-0309-01 Rev. A...
  • Page 4 An issue date and revision level for this guide appear on the title page. If more than three years have elapsed since this date, contact ZOLL Medical Corporation to determine if additional product information updates are available. ZOLL, AED Pro, CodeNet, stat•padz, pedi•padz, pro•padz, and v•pack are registered trademarks of ZOLL Medical Corporation.

  • Page 5: Table Of Contents

    5.0 Manual Self-Test ..................... 1-10 Chapter 2 Troubleshooting Troubleshooting the AED Pro Unit..................2-2 ECG Monitoring Troubleshooting..................2-4 Defibrillator Troubleshooting ....................2-5 AED Pro Error Log Messages .................... 2-6 Appendix A Maintenance Tests Checklist Instructions .........................A-2 ZOLL AED Pro Maintenance Tests Checklist ..............A-3 Index 9650-0309-01 Rev.
  • Page 6 ABLE OF ONTENTS www.zoll.com 9650-0309-01 Rev. A...
  • Page 7 Preface ® ZOLL Medical Corporation provides this manual for technicians who service the AED Pro device or diagnose malfunctions. This manual contains the following sections: Preface — Provides safety warnings and an overview of the manual’s contents. Review this section thoroughly before servicing an AED Pro unit.

  • Page 8: Preface

    REFACE Related Documentation In addition to this service manual, the following manuals are available for the AED Pro unit: AED Pro Operator’s Guide (9650-0350-01) — Describes the device and its controls, the • clinical modes of operation, and nonclinical functions.

  • Page 9: Symbols

    Do not crush. Nonrechargeable battery. Contains lead. Recycle or dispose of properly. RECYCLE Contains lithium. Recycle or dispose of properly. RECYCLE Li-ION Do not discard in trash. Recycle or dispose of properly. 9650-0309-01 Rev. A ZOLL AED Pro Service Manual...

  • Page 10: Warranty

    AED Pro Operator’s Guide. Before servicing or disassembling any equipment, review these safety considerations and read this manual carefully. WARNING! The AED Pro unit can generate as much as 2500 volts with sufficient current to cause lethal shocks. www.zoll.com 9650-0309-01 Rev. A...

  • Page 11: Technical Service

    • Returning a Unit for Service Before sending a unit to the ZOLL Technical Service Department for repair, obtain a service request (SR) number from the service representative. Remove the battery pack from the unit. Pack the unit with its cables in the original containers (if available) or equivalent packaging.
  • Page 12 Mississauga, Ontario L4W 1R6 Attention: Technical Service Department (SR number) Telephone: 1-866-442-1011 In other locations The nearest authorized ZOLL Medical Corporation representative. To locate an authorized service center, contact the International Customer Service at ZOLL Medical Corporation 269 Mill Road...

  • Page 13: Chapter 1 Maintenance Tests

    Chapter 1 Maintenance Tests ® This chapter describes the procedures for routine testing of the AED Pro unit. A test typically consists of multiple steps, each of which requires a pass/fail rating. For each step, perform the specified action and then verify that the expected results occur. If all expected results occur, assign a “Pass”...

  • Page 14: Preparations For Testing

    ZOLL AED Pro Simulator — • When connected to an AED Pro unit, the simulator can send it various simulated cardiac rhythms (ventricular fibrillation, normal sinus rhythm, or asystole) and optional simulated chest compression readings (rate and depth), so that you can test the unit’s response.

  • Page 15: Physical Inspection

    Is the battery older than 18 months? When was the last time the battery was tested? If you are using an AED Pro 3-lead ECG cable, is it free from cuts or other visible damage? 9650-0309-01 Rev. A ZOLL AED Pro Service Manual 1–3...

  • Page 16: Preventive Maintenance Test

    AINTENANCE ESTS 2.0 Preventive Maintenance Test Use this test to verify that the AED Pro unit is working properly and ready for use. For an alternative test using the AED Pro simulator, refer to the AED Pro Operator’s Guide. Note: To verify that the delivered energy for the first, second, and third shocks corresponds to the unit’s preconfigured adult energy levels, use the ZOLL Administration Software...
  • Page 17 Preventive Maintenance Test Test Procedure Test Action Expected Result(s) Pass Fail Turn on the AED Pro unit. UNIT OK ADULT PADS CHECK RESPONSIVENESS (or CHECK PATIENT) Note: Some AED Pro units are DON’T TOUCH PATIENT, configured to start with CPR;...
  • Page 18 • Analyzer indicates a (second shock). defibrillator discharge at the configured second-shock energy level (120, 150, or Note: If your AED Pro unit is not 200 joules) ±15%. configured for stack shocks, skip to test 2.5. TREATMENT DELIVERED (or SHOCK DELIVERED) •...
  • Page 19 Preventive Maintenance Test Test Action Expected Result(s) Pass Fail Turn off the AED Pro unit. Set the analyzer to NSR (normal sinus rhythm). Turn on the AED Pro unit. UNIT OK ADULT PADS DON’T TOUCH PATIENT, ANALYZING. NO TREATMENT ADVISED...
  • Page 20 CONTINUE CPR (or IF NO PULSE CONTINUE CPR) STOP CPR Put the puck down and turn off the AED Pro unit. Disconnect the universal adapter cable from the AED Pro unit. Wait 10 seconds and then turn PLUG IN CABLE on the AED Pro unit.

  • Page 21: Battery Check

    Action Expected Result(s) Pass Fail Insert the ECG cable into the connector on the AED Pro. Connect the leads to the analyzer and set to NSR (normal sinus rhythm). Turn on the AED Pro unit. Verify that the rhythm is displayed.

  • Page 22: Manual Self-Test

    Defibrillator charge and discharge circuitry (operational at 2 joules) is functional. • Microprocessor hardware and software are functional. • CPR monitoring circuitry and compression depth sensor are functional (when ZOLL • CPR-D•padz are attached). Audio output circuitry is functional. •...
  • Page 23 This chapter describes technical issues commonly encountered during routine maintenance or after a malfunction of the AED Pro unit and recommends steps to solve the problem. This chapter also lists AED Pro error log messages that indicate the unit requires technical service.

  • Page 24: Chapter 2 Troubleshooting

    Table 2-1 lists general issues with the unit and their associated corrective action. First, try the recommendations given under “Operator Action.” If these steps do not remedy the problem, follow the suggestions under “Technical Action.” For information on contacting ZOLL Technical Service, refer to page vii. Table 2-1. General Issues Symptom...
  • Page 25 Troubleshooting the AED Pro Unit Table 2-1. General Issues (continued) Symptom Operator Action Technical Action — Release the Shock button. Wait None. RELEASE SHOCK BUTTON until the unit issues the prompt PRESS FLASHING SHOCK BUTTON before pressing the button. Note: This prompt appears if an ECG None.

  • Page 26: Ecg Monitoring Troubleshooting

    Turn off nearby two-way radios and cell phones. baseline. Before attaching electrodes, properly prepare the patient’s skin (refer to the AED Pro Operator’s Guide). Ensure proper adhesion of the electrodes to the patient. Arrange the ECG cable so that it does not pull on any of the electrodes.

  • Page 27: Defibrillator Troubleshooting

    ANALYSIS HALTED defibrillation electrode pads. KEEP PATIENT STILL Ensure that no one is touching the patient and that the patient is motionless during ECG analysis. Contact ZOLL Technical Service. DEFIB MAINTENANCE REQUIRED 9650-0309-01 Rev. A ZOLL AED Pro Service Manual 2–5...

  • Page 28: Aed Pro Error Log Messages

    ROUBLESHOOTING AED Pro Error Log Messages The AED Pro unit records internal errors in an error log, which you can retrieve by using a Windows-based personal computer with ZOLL Administration Software (ZAS). To retrieve the error log, follow these steps:...
  • Page 29 AED Pro Error Log Messages Table 2-4. AED Pro Error Log Messages (continued) Error Error Message Patient impedance experienced a short The A2D is getting non-accurate readings during its test The message queue overflowed PowerOn task has timed out while waiting for a self test result to come back.
  • Page 30 HAPTER ROUBLESHOOTING 2–8 www.zoll.com 9650-0309-01 Rev. A...

  • Page 31: Appendix A Maintenance Tests Checklist

    Appendix A Maintenance Tests Checklist This appendix provides a sample maintenance checklist for the AED Pro unit. To ensure that the equipment is functioning properly and ready for emergency use, complete the checklist periodically according to local protocols. Your organization can create custom checklists for your specific requirements.

  • Page 32: Instructions

    To maintain records for maintenance testing, photocopy the checklist shown on the following pages. The checklist includes an entry for each test described in this manual. Use these copies to record the results of your testing and then retain the copies for your records. A–2 www.zoll.com 9650-0309-01 Rev. A...

  • Page 33: Zoll Aed Pro Maintenance Tests Checklist

    Maintenance Tests Checklist Date Tester Use this checklist to record the results of AED Pro maintenance tests and keep it for your Signature records. For a description of each numbered test, refer to Chapter 1, "Maintenance Tests" in the AED Pro Service Manual.
  • Page 34 A–4 www.zoll.com 9650-0309-01 Rev. A...

  • Page 35: Index

    Conventions used in manual Maintenance tests checklists equipment needed Defibrillator analyzer prerequisites 1-2, 1-4, 1-9 Defibrillator troubleshooting preventive Documentation Manual self-test 1-10 Manuals, related Messages error log wording ECG troubleshooting Error log 9650-0309-01 Rev. A ZOLL AED Pro Service Manual Index–1...
  • Page 36 Universal adapter cable 1-2, 1-4 Returns Voltage warning Safety considerations Self-test, manual 1-10 Service, technical Simulator Warranty iv, 1-2 Software, ZOLL Administration Wording, configurable 1-2, 2-6 Symbols on equipment ZOLL Administration Software (ZAS) 1-2, 2-6 Technical Service Index–2 www.zoll.com 9650-0309-01 Rev. A...
