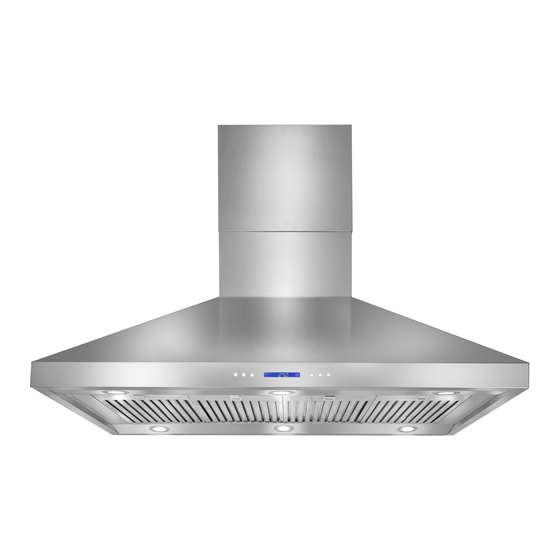

  • Page 1 ACH12BBQ ACH12BBQB Range Hoods User Manual
...
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION **Read the complete manual carefully before installation** Warnings: TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR PERSONAL INJURY, PLEASE OBSERVE THE FOLLOWING: Installation and electrical work must be done by a qualified person in accordance with all applicable codes and standards If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person to avoid a hazard.
  • Page 3 Always use cookware appropriate for the size of the surface element. 5. There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels. 6. The rangehood can be used on six cookers at most; The rangehood can be used on BBQ.
  • Page 4 CAUTION To reduce the risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceiling or into attics, crawl spaces or garages. Take care when using cleaning agents or detergents. Avoid using food products that produce flames under the range hood.
  • Page 5: Installation Instructions

    INSTALLATION INSTRUCTIONS Before You Start... 1.Read this manual carefully and completely. 2.The range hoods confirms to related appliance standards. Please check your local building codes for any additional requirements. 3. The appliance has been manufactured as class I, therefore ground connection is necessary. The range hood must be installed so that that the plug is easily accessible.
  • Page 6: Rangehood Installation

    Item 3. 6.Your rangehood is very heavy. Please use suitable fixings and hole size for this weight. ACH12BBQ – 42Kg ACH12BBQ – 7.If unsure of which fixings please discuss with your hardware stockist or rangehood installer.
  • Page 8 DUCTING 1.Remove all tapes from the duct’s butterfly flaps and ensure they move up and down freely. 2.Position the butterfly flaps up. 3.Position the ducting over the top of the collection box and butterfly flaps. Note: If unsure about the ducting please contact a rangehood installer. 4.If using a rangehood installer or roof plumber duct through ceiling and roof in accordance with the local, state and national regulations and laws.
  • Page 9: Operation

    8.Push 240V AC plug into power socket and turn on. Note: Do not damage the power cord during the flue surround installation. OPERATION Press the to turn on the rangehood. The display backlight will come on and the power icon will be displayed. CONTROL PANEL FOR ACH12BBQ...
  • Page 10: Timer Button

    DISPLAY PANEL CLOCK 1.Each time the rangehood is reconnected to a power supply, the control panel will beep once. The clock will reset and show 12:00. The rangehood will be in standby mode without lights or motors operating. The control panel will not be backlit. 2.To set the time.
  • Page 11: Care And Cleaning

    Remote controller: Your cooker hood equipped with remote controller to allow you operate the unit remotely.Before use the remote control please remove the battery film! Below shadow area is effective remote controlling area for better using the remote control. CARE AND CLEANING General A build up of oil may occur if the Rangehood and baffle filters are not cleaned properly and regularly.
  • Page 12 1.Use warm soapy water and a soft cloth or put into dishwasher on a ‘normal’ cycle. 2.Thoroughly clean and wipe down the inside of Range hood canopy. To Fit 1.Position the rear of the baffle filter into the 2 slots. Gently rotate the baffle filter into position, lift latch and push into place and release latch NOTES: If you clean the baffle filter in the dishwasher: load only the baffle filter and no other items...
  • Page 13 Read all instructions in this manual before operating the appliance. Save these instructions for future reference. Always leave safety grills and filter in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. NEVER dispose cigarette ashes, ignitable substances or any foreign objects in to the blowers. NEVER leave cooking area unattended.
  • Page 15: Troubleshooting Guide


 Trouble Shooting Guide Problem Possible Reason Solution...
  • Page 16: Guarantee And Service

    Check the plug is No electrical supply. connected. Check the plug is Hood doesn't turn on. connected. Power cord is damaged Contact technician service Baffle filters Clean the filters and replace clogged when dry. Poor Airflow Hood is not secured in place Check the installation of Hood is vibrating hood.Tighten mounting...
