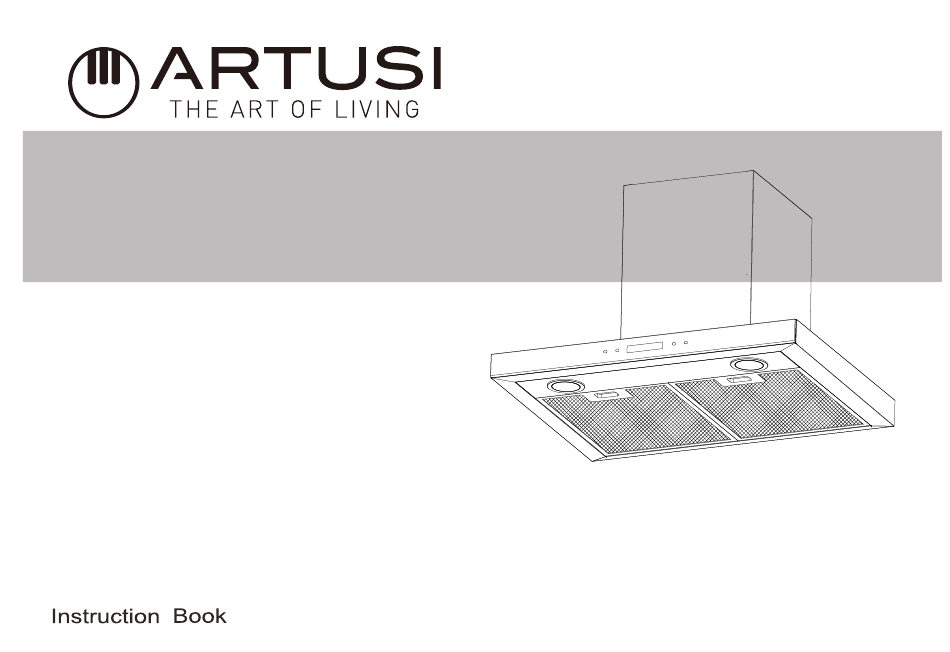

- Page 1 Cooker Hood Model ATH601B ATH601X ATH901B V20220602 Cod:0103091215-00.03...
- Page 2 CAUTION:Accessible parts may become hot when used with cooking appliances. In certain circumstances electrical appliance may be a danger hazard. A) There must be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels. B)Do not check the status of the filters while the cooker hood is operating.
- Page 3 CAUTION:Accessible parts may become hot when used with cooking appliances. J)If the supply cord is damaged,it must be replaced by the manufacturer,its service agent or similarly qualified persons in order to avoid a hazard. K)This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 4 CAUTION:Accessible parts may become hot when used with cooking appliances. Q) The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room. I)Children should be supervised to ensure that they do not play with the appliance.
- Page 5 Know your cooker hood Please read these instructions Before using your cooker hood Congratulations on the purchase of our Cooker hood, which is designed to include many superior features that permit you the fullest expression of your living. Before installing and/or using the cooker hood carefully read all the instructions.
- Page 6 Information and advice Check voltage and Frequency given on the rating plate located on the Information inside of the hood. The air must not be discharged into a flue that is used for exhausting fumes from Rating plate appliances burning gas or other fuels (not applicable to appliances that only We recommend that after...
- Page 7 According to the Fig.4 make sure the position of the hoods on the wall. Then use When the stencil to cutting or drill four drilling holes on the into wall wall. Fix four or ceiling, sets expanding do not plugs screws damage at the four holes.
- Page 8 Hang the 10mm hood and let it's two installation holes aim at two screws, adjust it to setting position. Screw down the four screws. first screw down the upper two screws, then screw down the others.
- Page 10 Put the outer chimney and inner chimney together on the Installation windshield. work and electrical wiring must be done by qualified person(s) in accordance According to with all the dimension applicable of the chimney codes and standards, fixed bolster, including make sure the fire-rated position of the...
- Page 11 To install this hood you will require assistants Install the chimney fixed bolster on the corresponding position on the wall.
- Page 12 Use the Screw ST4*10 to connect the chimney fixed bolster and the upper chimney. Do not touch the light bulb within half Controls: an hour after appliance use. Press the button and the hood will go into standby mode. The lamp Press the button and the fan speed will change: Low - Med - High - Stop.
-
Page 13: Replacing Lamp
Replacement and maintenance If the supply cord is damaged, it must be replaced by the manufacturer its service agent or similarly qualified persons in order to avoid a hazard Replacing 12V 2X2W Max lamp Information 1.Disconnect the electrical plug. 2.Use the“ ”type screwdriver to remove the damaged lamp from lamp hole. power of 3.Disconnect the connectors between damaged lamp and lamp wire. - Page 15 Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
