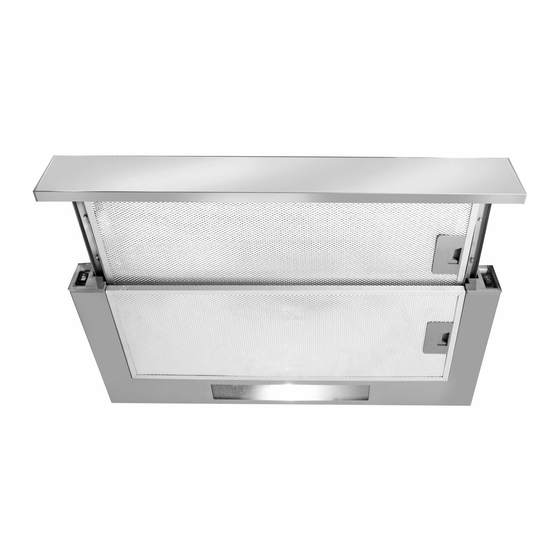

- Page 1 A PPLIANCES FO R LIV IN G ASO600RX & ASO900RX OPERATION MANUAL...
- Page 2 This instruction manual has been specially created to inform you of the features specified in this Manual may not be available on your appliance. full range of features your ARTUSI appliance has to offer and serves as an All our appliances are only for domestic use, not for commercial use. Products introduction to getting the very best out of your ARTUSI appliance.
- Page 3 HOOD DUCTING GUIDE Here are some important points to consider when choosing and/or installing a range hood: Diagram 2. External Vent • An externally ducted range hood will generally outperform a recirculating range hood. • We discourage the use of flexible ducting as this has a significant negative impact on airflow and noise 1.0m due to turbulence...
-
Page 4: Information And Advice
Information and advice Caution: Take care when touching the hood as it may become hot due to high heat from steam and fats when cooking. In certain circumstances electrical appliances may be a hazard. Please pay attention to the following points: A. - Page 5 Remove the hood from the carton and remove all packaging materials. Lay it on a padded / protected Caution: surface to prevent damage. Turn the power Check the voltage and frequency off before starting rating label on the rating label inside the hood installation.
- Page 6 Selection of venting or recirculation mode Ducted mode. Insert the big block into the position as per Fig. 3. Keep the small handle rail installed on the hood. Caution: The air must not be discharged into a duct/flue that is used for exhausting Recirculation mode.
- Page 7 Caution: Know where the electrical wiring and other utilities are located behind walls before cutting or drilling Ducted mode: into walls or Remove the knockout (as per Fig 5) using a flat head screwdriver inserted ceilings. under one end and gently lever it up. Cut the attachment points using tin snips and remove.
- Page 8 Caution Installation work and electrical ø7 wiring must be ø6 done by qualified person(s) in accordance with all applicable laws, regulations and safety standards. You will need 2 people to install the hood. Keep the power cord and plug accessible for easy access to the power socket. Caution: The hood should Ducting mode: Ensure the hole for the damper flap &...
- Page 9 Ducted mode as per Fig. 7 and 8 Plug in the appliance when it is fully installed Note: The duct hole is off centre Connect the hose (not supplied) to the damper flap and place the duct hose into position.
- Page 10 To use Pull out the telescopic hood using the handle rail. You will hear a click when it is in place. No click, no power, this is the safety switch. Select the motor speed as per Fig. 9 using the switch on the front of the hood.
-
Page 11: Cleaning And Maintenance Instructions
Cleaning and maintenance instructions Caution: Turn off the hood before cleaning. Information Never let water enter Lamp Max 1x40W Replacing the the motor or electrical light bulb parts as this may cause Caution: Wait 30 minutes for the light bulb to cool down after using the hood. an electric It is hot and may burn! shock... - Page 12 Recycling Please contact your local recycling centre for information on how to correctly dispose of this appliance. The manufacturer shall decline all responsibility when the recommendations and instructions regarding installation, maintenance and use are not observed. The manufacturer shall decline all responsibility when the recommendations and instructions regarding installation, maintenance and use are not observed.
-
Page 13: Warranty Registration
Appliances Privacy Policy is available at 2. What is not Covered by the Warranty. of the artusi in respect of an artusi product www.artusi.com.au. Worldwide Appliances will The Warranty does not apply if an artusi product purchased as a “factory second”... -
Page 14: Warranty Registration Card
Last Name: First Name: Address: State: Postcode: Email: Home Phone: Mobile: Purchase Date: (Please attach proof of purchase to validate warranty) SERIAL NUMBER MODEL NUMBER (if you cannot locate the serial number please call ARTUSI on 1300 694 583) 01032014... - Page 16 DISCLAIMER Worldwide Appliances PTY LTD, trading as ARTUSI, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result alterations to our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product.
