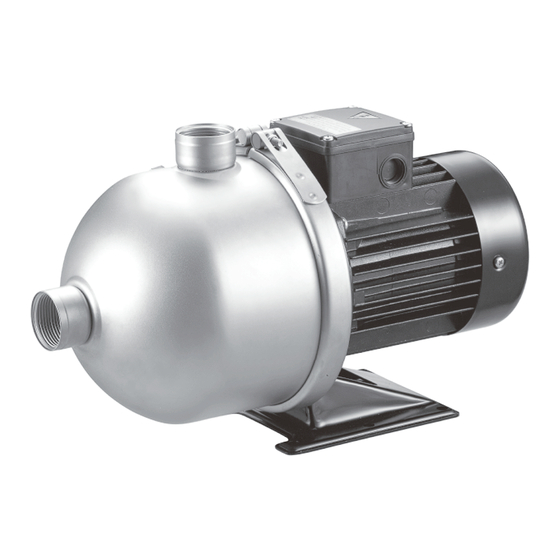

HBI, HBN
Service Manual
NO.,3-8, Sanchial Tsun, Lutsao Hsiang,
Chiai Hsien, Taiwan.
E-Mail : stairs@stairs.com.tw
Tel:+886(0)53750488
Fax:+886(0)53752330

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HBI and is the answer not in the manual?

Questions and answers

Summary of Contents for Stairs HBI

  • Page 1 HBI, HBN Service Manual NO.,3-8, Sanchial Tsun, Lutsao Hsiang, Chiai Hsien, Taiwan. E-Mail : stairs@stairs.com.tw Tel:+886(0)53750488 Fax:+886(0)53752330...
  • Page 2 Disassembly of shaft seal Step1: use hexagon wrench turn on the Necessary tools: hexagon, Phillips, screw of strap, take out the strap flathead screwdriver, box wrench, universal pliers Step2: use flat head screwdriver take out the Step3: take out the pump chamber and suction pipe pump chamber Step4: take out the screw of strap, Step5: take out the chamber...
  • Page 3 Step6: use Phillips screwdriver to take out the Step7: use flathead screwdriver take out the fan, screw of fan cover, and take out the fan cover take out the fan Step8: use universal pliers to clamp the Step9: grasp the universal pliers, use box wrench end of motor spindle take out the lock nut Step10: take out the clamp...
  • Page 4 Step12: take out the chamber Step13: take out the spacing pipe and impeller Step14: take out the chamber (upper) Step15: take out the bushing and spring Step17: use hands take out the rotation of the ring, Step16: take out the O-ring use flat head screwdriver take out the fixed ring Disassembly complete...
  • Page 5 Assembly of shaft seal manual Necessary tools: hexagon, Phillips, flathead screwdriver, box wrench, universal pliers Step1: put the fixed ring into the set base of shaft seal and put the rotation of the ring into it Step2: put O-ring in it (put it on the bottom) Step3: put the bushing and spring in it Step4: put the impeller first and put the chamber (upper) on it...
  • Page 6 Step6: put the chamber in it Step7: put the impeller in it Step9: use universal pliers to clamp the end of Step8: put the clamp in it motor spindle Step10: put the lock nut on it and grasp the Step11: use hammer to beat the fan into it universal pliers Use box wrench to lock the nut...
  • Page 7 Step13: put the chamber on it Step12: use Phillips screwdriver to lock the fan cover Step14: lock the strap retainer Step15: install the suction pipe Step19: use hexagon wrench to lock the strap Step18: install the pump chamber Assembly complete...
