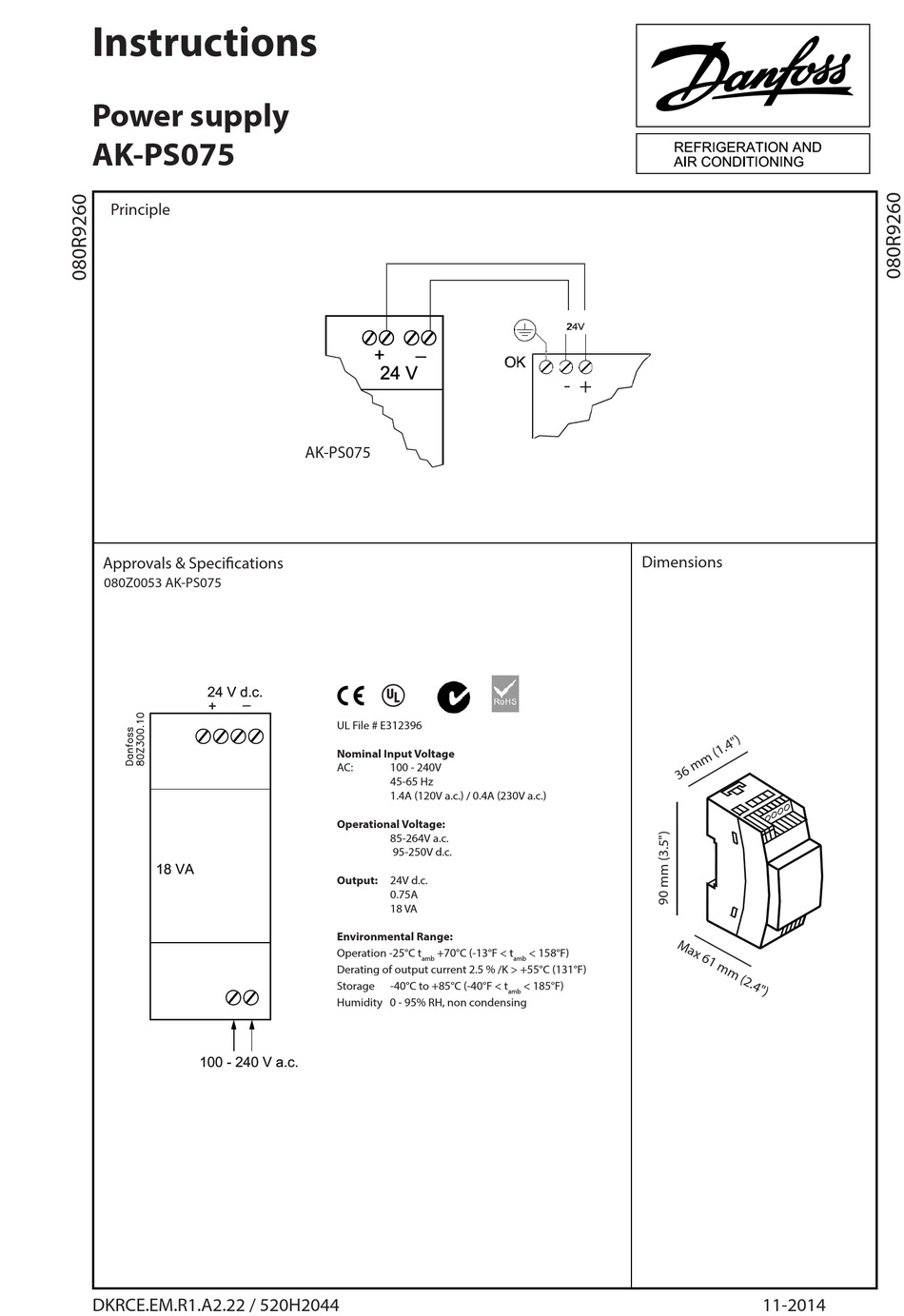

Instructions
Power supply
AK-PS075
Principle
Approvals & Specifications
080Z0053 AK-PS075
DKRCE.EM.R1.A2.22 / 520H2044
AK-PS075
S
UL File # E312396
Nominal Input Voltage
AC:
100 - 240V
45-65 Hz
1.4A (120V a.c.) / 0.4A (230V a.c.)
Operational Voltage:
85-264V a.c.
95-250V d.c.
Output:
24V d.c.
0.75A
18 VA
Environmental Range:
Operation -25°C t
+70°C (-13°F < t
amb
Derating of output current 2.5 % /K > +55°C (131°F)
Storage
-40°C to +85°C (-40°F < t
Humidity 0 - 95% RH, non condensing
- +
Dimensions
< 158°F)
amb
< 185°F)
amb
11-2014
