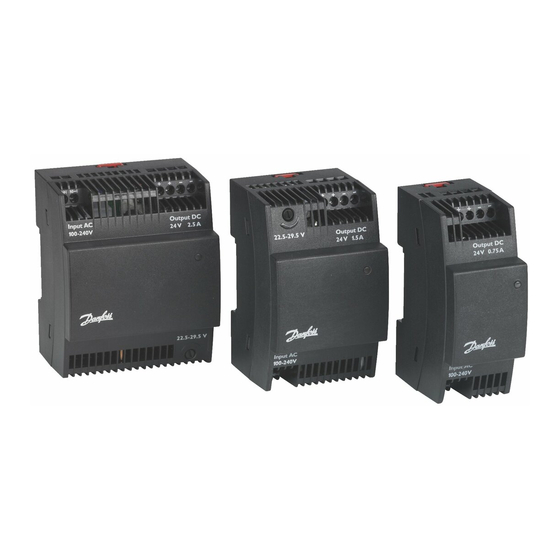

Danfoss AK-PS150 Instructions For Use

Instructions

Power supply

AK-PS150, AK-PS250
Principle
AK-PSxx
Approvals & Specifications
080Z0055 AK-PS250
080Z0055
Approvals & Specifications
080Z0054 AK-PS150
080Z0054 080Z0054
RI8LJ102 11-2014
- +
S
UL File # E312396
Nominal Input Voltage
AC: 100 - 240V
45-65 Hz
1.4A (120V a.c.) / 0.4A (230V a.c.)
Operational Voltage:
85-264V a.c.
95-250V d.c.
Output: 24V d.c.
2.5A
60 VA
Environmental Range:
Operation -25°C t +70°C (-13°F < t
amb
Derating of output current 2.5 % /K > +55°C (131°F)
Storage -40°C to +85°C (-40°F < t
Humidity 0 - 95% RH, non condensing
S
UL File # E312396
Nominal Input Voltage
AC: 100 - 240V
45-65 Hz
1.4A (120V a.c.) / 0.4A (230V a.c.)
Operational Voltage:
85-264V a.c.
95-250V d.c.
Output: 24V d.c.
1.5A
36 VA
Environmental Range:
Operation -25°C t +70°C (-13°F < t
amb
Derating of output current 2.5 % /K > +55°C (131°F)
Storage -40°C to +85°C (-40°F < t
amb
Humidity 0 - 95% RH, non condensing
When wiring from the AK-PS250 to remote AK
I/O devices, observe the Max supply lengths.
Wire Size Max. Supply length
16 AWG (1.5mm )
2
18 AWG (1.0mm 2 )
20 AWG (0.75mm 2 )
22 AWG (0.5mm )
2
Dimensions
< 158°F)
amb
< 185°F)
amb
Dimensions
< 158°F)
amb
< 185°F)
65 feet (20m)
40 feet (12m)
25 feet (7m)
15 (4.5m)
