Summary of Contents for Digikeijs DR4018

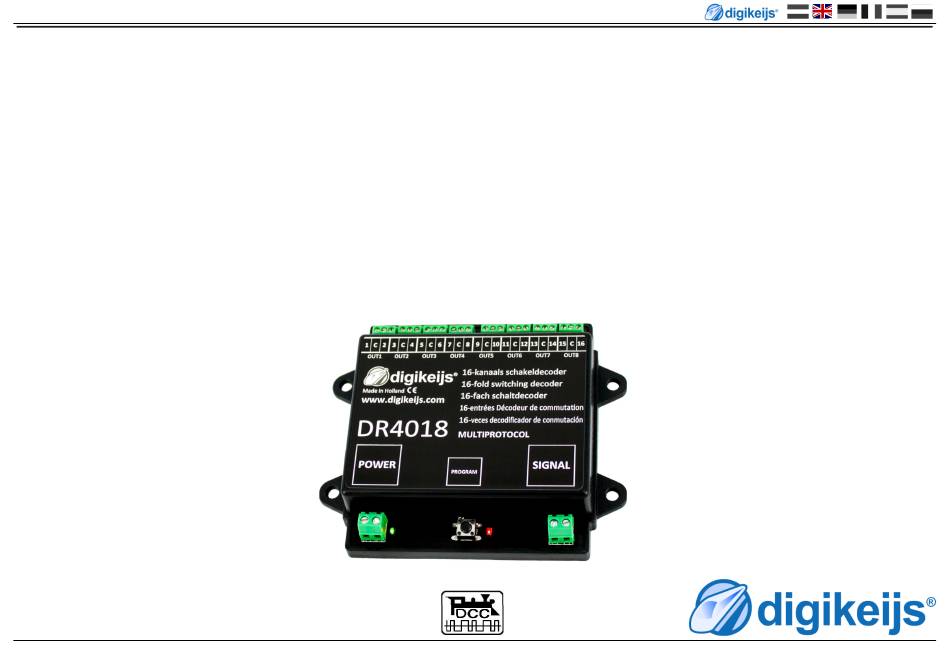

Page 1 22.01.2019 DR4018 Switching Decoder Instruction Manual (2018.12.23) © Copyright 2005 – 2018 digikeijs, the Netherlands. All rights reserved. No informa2on, images or any part of this document may be copied without the prior wri3en permission of Digikeijs. www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz...
Page 2: Table Of Contents
Special feature CV programming for control panels Pulse dura2on of the outputs which switch oﬀ the programming track Signal pa3erns of the integrated signal decoders Rese@ng the DR4018 to factory se@ngs for Control panels which switch oﬀ the programming track Programming examples with diﬀerent Control panels ROCO®...
Page 3 We reserve the right to change the design of the product, soKware and/or ﬁrmware without prior no2ce. copyright All Digikeijs manuals and other wri3en instruc2ons supplied and/or downloadable are copyrighted. Duplica2on is not permi3ed without the wri3en permission of Digikeijs.
Page 4: Product Overview
When using "old" transformers (AC output), malfunc2ons may occur during opera2on under certain circumstances. When using a transformer, it must also be noted that the output voltage of the transformer must be mul2plied by 1.4 and therefore a higher voltage is applied to the output of the DR4018 than to the input (power).

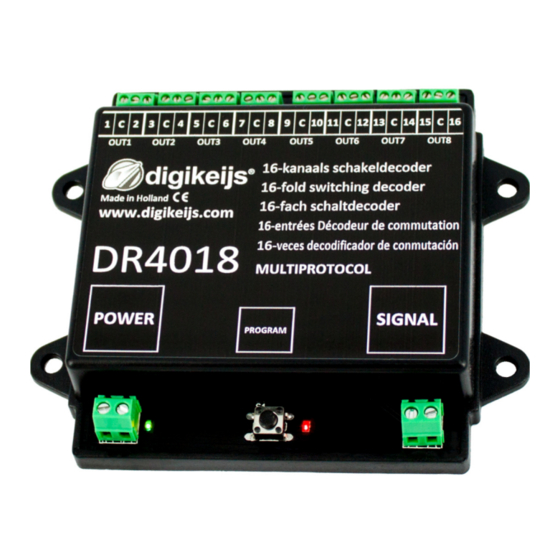

Page 5 DR4018 Switching decoder 22.01.2019 2.3 Hardware Overview Connec2on Out 1 1 = - Power Connec(on C = + Recommenda2on min. 12V DC 3A 2 = - Green Connec2on Out 2 3 = - Display Supply voltage present C = + 11 programming bu>on...
Page 6 In addi2on, a resistor (150-270 Ohm) should be connected to "C" and terminal 1 of Out 1, otherwise no read conﬁrma2on can be detected by the cen- tral unit. POM programming is always possible on the main track.  No changes to the DR4018 connec2ons are necessary for POM programming.  CV readout via POM or Railcom® is not possible. ...
Page 7 The turnout addresses are always assigned by a turnout command!!! Make sure the DR4018 is powered from the decoder's power connector. It is best to use a switching power supply with at least 12V DC output voltage and 3A output power. The signal connec(on of the decoder must be connected to the main track output of your control panel! Call up the desired magne2c ar2cle address which the DR4018 is to receive as the start address at the central unit, handset controller, app, etc.
Page 8 (For further informa on on CV byte or CV bit programming, please refer to the opera ng instruc ons of your control panel) Now the desired CV value can be wri3en to the DR4018 with the respec2ve func2on Write POM of the central, app or handset controller.
Page 9 Please note that reading out and programming the DR4018 via the programming track only works if the central unit does not switch oﬀ the programming track! Therefore, before a>emp(ng programming, check that the green LED next to the power connector is lit. Only if this is the case can the DR4018 be successfully programmed as described in this sec(on.
Page 10 Switch the func2on F0 (light) on and oﬀ again to ac2vate the locomo2ve in the control panel. Press the programming bu3on on the DR4018. The red LED now lights up con2nuously and indicates that the DR4018 is in "programming mode".
Page 11 Wait approx. 30 seconds before powering the DR4018 again and restoring the siding. The DR4018 is now reset to factory se@ngs. The POM address was reset to 9999 again and the DR4018 has the magne2c ar2cle address 1 again. By switching the magne2c ar2cle address 1 it can be checked whether the RESET was successful.
Page 12 DR4018 indicates whether the programming track always outputs voltage. If this does not light up con(nuously, the programming track is switched oﬀ. This leads to the DR4018 requiring a diﬀerent programming or reseEng procedure than usual.
Page 13 This is absolutely necessary to successfully complete the RESET. AKer approx. 30 seconds the desired connec2on can be restored. The DR4018 is now reset to factory se@ngs. The POM address was reset to 9999 again and the DR4018 has the magne2c ar2cle address 1 again. By switching the magne2c ar2cle address 1 it can be checked whether the RESET was successful.
Page 14 DR4018 Switching decoder 22.01.2019 4.0 Programming exam- ples with diﬀerent Control Panels Please note that it is impossible to create individual programming instruc(ons for all control panels. On the following pages only an overview of the procedure is possible. Further informa2on on the programming procedure can be found in this manual from point 3.0 onwards.
Page 15: Roco® Z21® / Z21® Programming Example Program Start Address
Press the programming bu3on on the DR4018 once. The red LED lights up. Press the switch symbol once. The red LED on the DR4018 ex2nguishes and the switched turnout address is stored as start address (OUT1). Please also note point 3.1 of this manual! ®...
Page 16: Roco® Z21® / Z21® Pom Programming Example
The red LED lights up. Press the "Program" key in the Z21® App. Press the programming bu3on on the DR4018 once. The red LED goes out. The DR4018 will now save and accept the se@ngs you have made. The changes to the programmed se@ngs are immediately ac2ve.
Page 17 22.01.2019 4.3 ROCO® Mul(-mouse programming example Program start address Programming the start address (OUT1) Verbinden Sie den DR4018 mit dem 'Main Track' /'Track out' Ihrer Mul2maus. Wählen Sie die gewünschte Weichenadresse aus die der DR4018 als Startadresse be- kommen soll.
Page 18 4.4 ROCO® Mul(-mouse POM Programming example CV programming via POM (Program On Main) Connect the DR4018 to the 'Main Track' / 'Track out' of your mul2 mouse. Create a new locomo2ve in the Mul2mause with locomo2ve address 9999 Enter a locomo2ve name e.g. "LOK1". Then press "OK".
Page 19 The red LED lights up. You can now send the programming command by pressing 'OK' again. To exit the programming mode, press the programming bu3on on the DR4018 again. The red LED goes out and the changes are saved. Please also note point 3.2 of this manual! www.digikeijs.com...
Page 20: Uhlenbrock® Intellibox® Programming Example Program Start Address
Press the programming bu3on on the DR4018 once. The red LED lights up. Switch the desired address on your Intellibox® once. The red LED on the DR4018 goes out as soon as the module has received the correct address. Please also note point 3.1 of this manual! www.digikeijs.com...
Page 21: Uhlenbrock® Intellibox® Pom Programming Example
22.01.2019 4.6 Uhlenbrock® Intellibox® POM Programming example CV programming via POM (Program On Main) Connect the DR4018 to the main track of your Intellibox®. Programmi Set the Intellibox to the "Programming Mode" by pressing the [mode] key. Un2l "programming mode" appears on the display.
Page 22 DR4018 Switching decoder 22.01.2019 Press the [Enter] key to send the desired CV value to the DR4018. Lok#9999: To exit the programming mode, press the programming bu3on on the DR4018. The red LED goes out and the changes are saved.
Page 23 4.7 LENZ® Programming example Program start address Programming the start address (OUT1) Connect the DR4018 to the J and K output (main track) of your LZV100 central sta2on. Press [F] un2l [* B&W *] appears on the LH100 screen. Then press [ENTER].
Page 24: Lenz® Pom Programming Example
22.01.2019 4.8 LENZ® POM Programming example CV programming via POM (Programm On Main) Connect the DR4018 to the J and K outputs (main track) of your LZV100 central. Press the [ CI ] key and enter the locomo2ve address '9999'.
Page 25 DR4018 Switching decoder 22.01.2019 To exit the programming mode, press the programming bu3on of the DR4018 again. The red LED goes out and the changes are saved. Bi3e beachten Sie auch den Punkt 3.2 dieser Anleitung! www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz...
Page 26: Troubleshoo(Ng
The red LED goes out again although the programming bu>on has not been pressed again. Some central units have the problem that aKer pressing the programming bu3on of the DR4018, the red LED goes out again shortly aKer the programming mode has been ac2vated and the DR4018 automa2cally terminates the programming mode.
Page 27: Connec(On Examples
DR4018 Switching decoder 22.01.2019 6.0 Connec(on examples 6.1 Connec(on op(ons Power and signal Connec(on Supply voltage Signal Connec2on to main track 12-18V DC/AC Power Connec2on to an external Recommended power supply min. Recommended for normal opera(on and for the POM...
Page 28 DR4018 Switching decoder 22.01.2019 6.2 Connec(on examples with diﬀerent presets (Preset CV47) The DR4018 can be easily parameterized for various switching tasks using the presets. These default se@ngs are always made in CV 47. PRESET 0 0 1 2 3 6 13...
Page 29 DR4018 Switching decoder 22.01.2019 PRESET 7 PRESET 11 PRESET 8 DR4103 PRESET 10 PRESET 9 www.digikeijs.com ® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz...
Page 30: Cv Table
DR4018 Switching decoder 22.01.2019 7.0 CV Table CV CV Deﬁni(on Range Value Decoder Version Manufacturer ID value '8' resets the decoder to factory se@ngs. Long address high byte 192-255 Long address low byte 0-255 Conﬁgura(on Data Bit Func2on Standard Value "0"...
Page 31 0 – 13 (This CV can only be wri3en. Reading is not possible!) The DR4018 switching decoder has 13 possible presets to make programming easier. Of course, the individual CVs of the presets can also be adjusted individually. Number of addres-...
Page 32 DR4018 Switching decoder 22.01.2019 CV Deﬁni(on Range Value 107 Dark (me between the diﬀerent signal transi2ons (only for DB signals) 1-255 108 Values for dimming the signals (night mode) 0-15 109 PWM period The resolu2on with which the internal PWM works to achieve eﬀects and 1-255 dimming values.
Page 33 DR4018 Switching decoder 22.01.2019 Range Value CV Deﬁni(on 118 Output conﬁgura(on Output 6 0-255 (See CV113 for Conﬁgura2on) 119 Output conﬁgura(on Output 7 0-255 (See CV113 for Conﬁgura2on) 120 Output conﬁgura(on Output 8 0-255 (See CV113 for Conﬁgura2on) 121 Output conﬁgura(on Output 9 0-255 (See CV113 for Conﬁgura2on)
Page 34 7.1 Vector groups Func(on mapping The following table shows how you can link the various outputs of the DR4018 module (1-16) with the turnout control panel of your control panel. This can be useful if you want to switch several outputs simultaneously via one key.
Page 35 IThis table shows how the diﬀerent signal numbers (CV 131-134) are connected to output groups. It may be necessary to change this se@ng if you want to control turnouts and signals with the same DR4018. These CVs usually contain the value 0.
Page 36 DR4018 Switching decoder 22.01.2019 7.4 Signal pa>erns of the integrated signal decoders (CV131-134) The integrated signal decoder always uses a group of 4 addresses per signal. The combina2on of the ﬁrst three addresses results in the signal pa3ern. In order to be able to call up the respec2ve signal pa3ern, the ﬁrst three addresses must therefore always be connected together.
